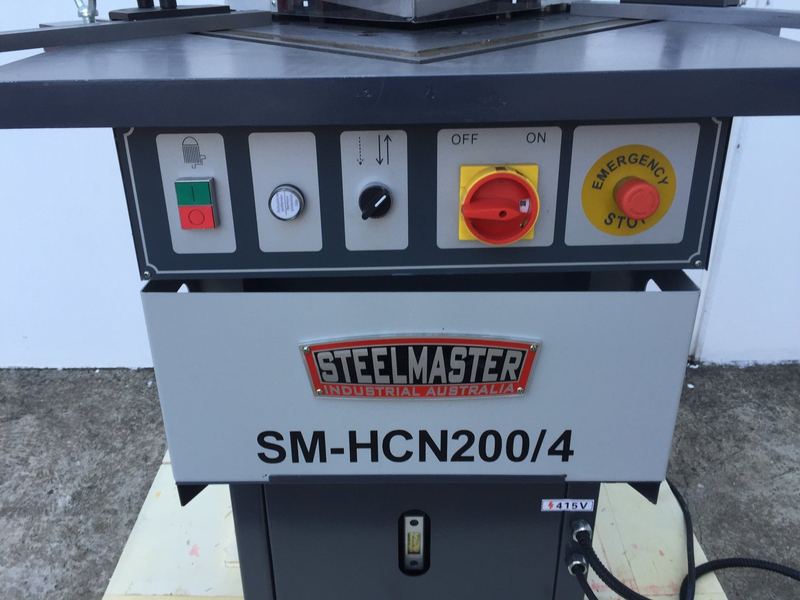

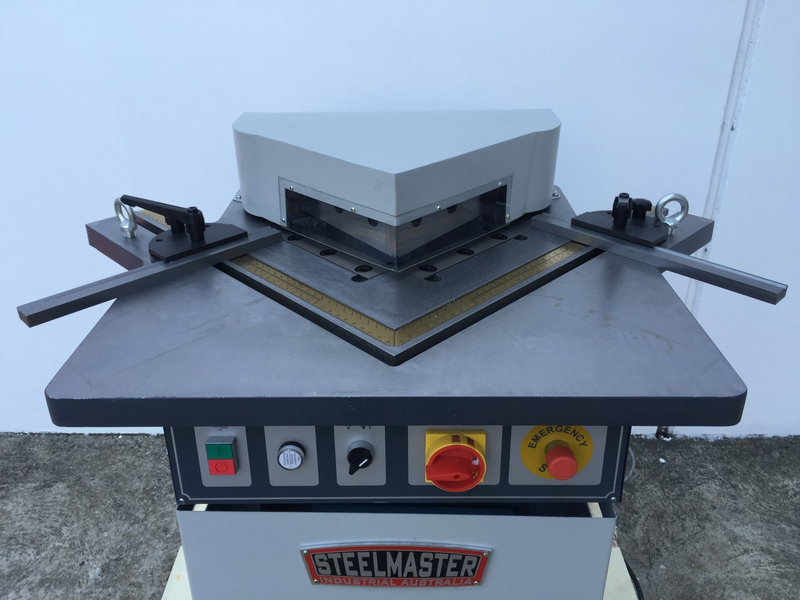

HCN200/4 FIM Euro Corner Notcher. 200mm x 200mm x 4mm Hydraulic Operation.
Quantity: -
HCN200/4 FIM Euro Corner Notcher. 200mm x 200mm x 4mm Hydraulic Operation.
Description
Our NEW Italian Engineered hydraulic corner notcher is a compact, heavy duty hydraulic 90° notcher that has a cast head and table. The table is machined with ridges so that material will not stick. The low profile allows notching of formed parts. Permanently lubricated bearings require no maintenance. Includes protractors and scales.
Features
❚quick blade gap adjustment
❚reversible bottom blades
❚manual stroke length adjustment
❚internal back stop with scale
❚special guide on the table for cuts in a subsequent way, such as cuts longer than the blade length
❚tempered steel guiding system
❚selector switch for foot or hand control
❚cast-iron head and base
❚cast-iron table with t-slots and built-in scales (in. and mm.)
❚two squaring guides with protractors
❚high-carbon, high-chrome blades
❚remote foot control
Technical snap shot
❚200mm x 200mm x 4mm mild steel
❚200mm x 200mm 2mm stainless
❚notching angle - 90 degrees
❚dimensions - 940mm x 950mm x 1190mm x 580Kg
❚3Kw x 415V
