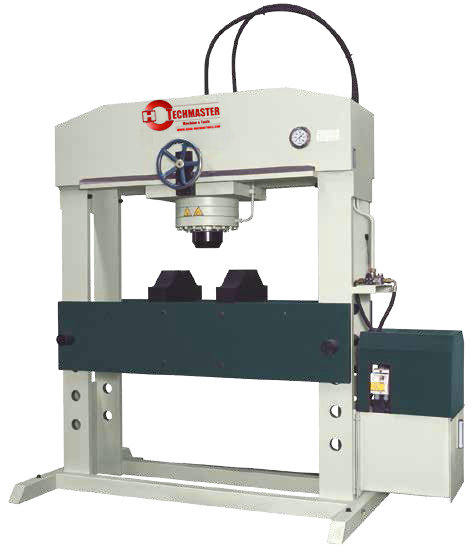

technical data
bending force: 150 to
motor power: 11 kW
stroke: 300 mm
daylight: 750 mm
distance between columns: 1.570 mm
piston Ø: 280 x 200 mm
advance speed: 9 mm/s
working speed: 5 mm/s
return speed: 10 mm/s
length: 2.560 mm
width: 1.000 mm
heigth: 2.480 mm
weight: 2.350 kg


horizontal movable cylinder by handwheel
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
manual right- left movement of piston
