Main Features:

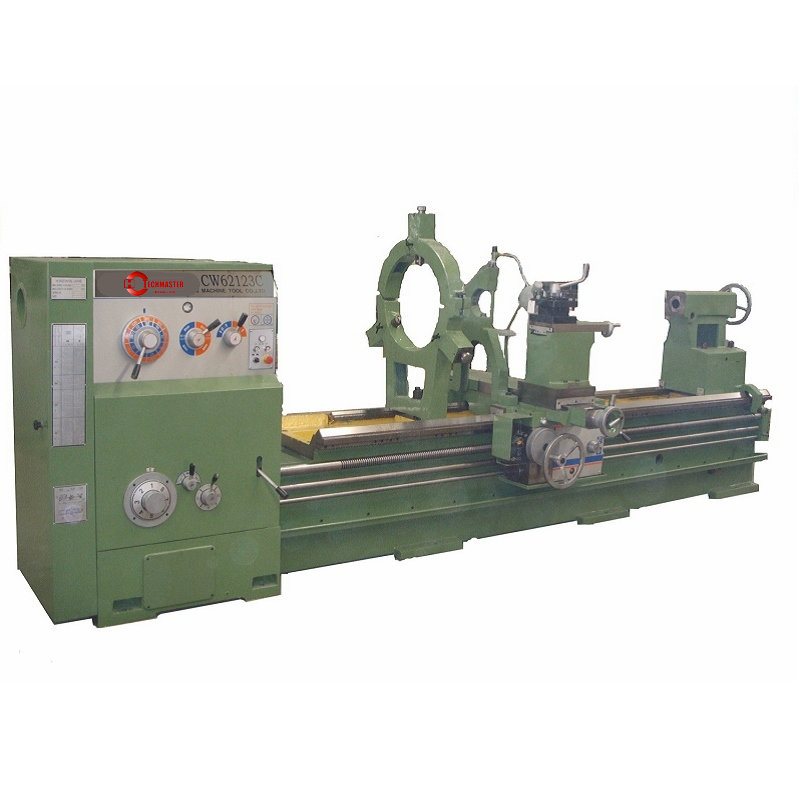

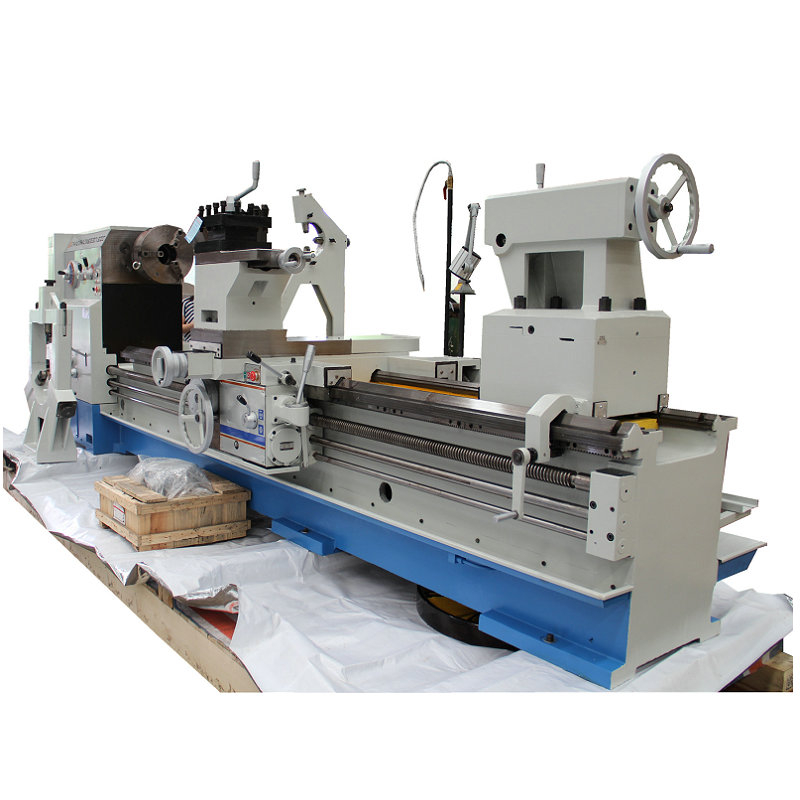

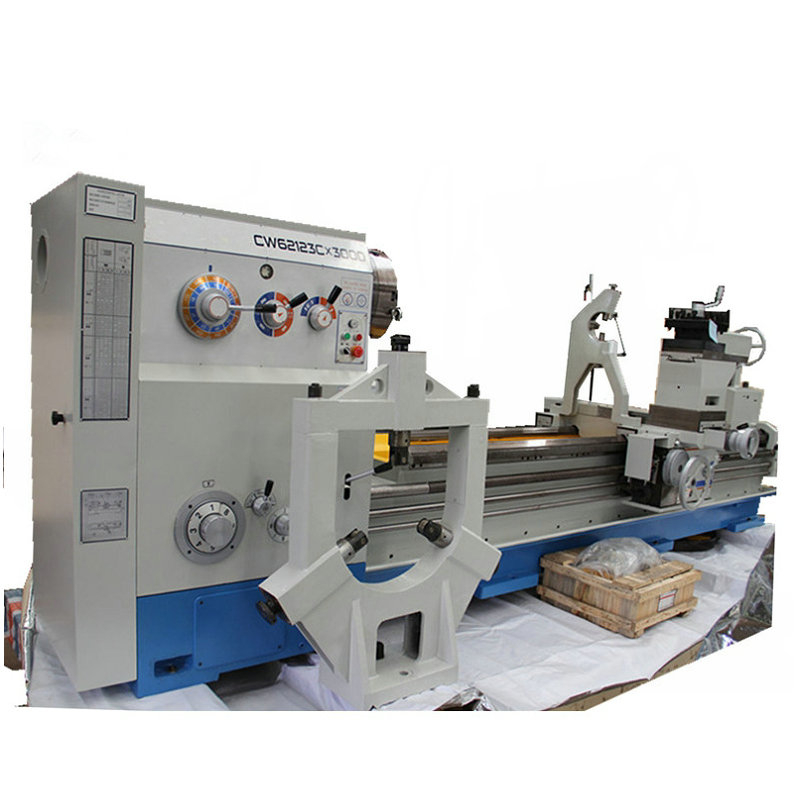

This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market's demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including: CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.

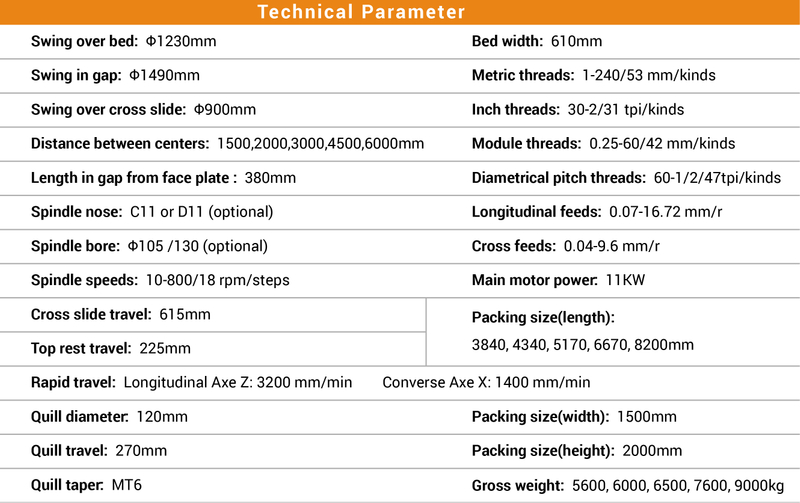

Model | Unit | CW62103C | CW62123C | CW62143C | CW62163C | CW62183C |
Swing over bed | mm | 1030 | 1230 | 1430 | 1630 | 1830 |
Swing in gap | mm | 1290 | 1490 | 1690 | 1890 | 2090 |
Swing over cross slide | mm | 700 | 900 | 1100 | 1240 | 1440 |
Distance between centers | mm | 1500, 2000, 3000, 4500, 6000 | ||||
Length in gap from face plate | mm | 380 | ||||
Spindle nose | C11 or D11 | |||||
Spindle bore | mm | 105, 130 | ||||
Spindle speeds/steps | r.p.m./steps | 10 - 800/18 | 7 - 531/18 | 6 - 480/18 | ||
Cross slide travel | mm | 615 | 715 | 815 | 915 | |
Top rest travel | mm | 300 | ||||
Rapid traverse | mm/min | Axe Z: 3240, Axe X: 1870 | ||||
Quill diameter | mm | 120 | ||||
Quill travel | mm | 270 | ||||
Quill taper | MT6 | |||||
Bed width | mm | 610 | ||||
Metric threads | mm/kinds | 1 - 240/53 | ||||
Inch threads | Tpi/kinds | 30 - 2/31 | ||||
Module threads | mm/kinds | 0.25 - 60/46 | ||||
Diameter pitch threads | Lpi/kinds | 60 - 1/2/47 | ||||
Main motor power | kW | 11 | ||||
Gross weight | Kg - 1500 b/c | 5200 | 5350 | 5550 | 5750 | 6000 |
Kg - 2000 b/c | 5500 | 5650 | 5850 | 6100 | 6350 | |
Kg - 3000 b/c | 6350 | 6500 | 6700 | 6900 | 7150 | |
Kg - 4500 b/c | 7600 | 7750 | 7950 | 8150 | 8400 | |
Kg - 6000 b/c | 8800 | 9000 | 9200 | 9400 | 9650 |
Standard accessories:
4-Jaw chuck/ &flange/ Φ500 (103C, 123C); Φ630 (143c, 163c, 183c)
Dead centers, reduction sleeve
Foundation bolts/nuts
Level blocks
Steady rest, Φ500 (103C, 123C), Φ700 (143c, 163c, 183c) (for 3000mm models and upwards)
Optional accessories:
3-jaw chuck & flange
Face plate
Steady rest (less than 3000mm)
Follow rest
Φ130 spindle bore
Electric turret
Electric quill
Taper turning attachment
