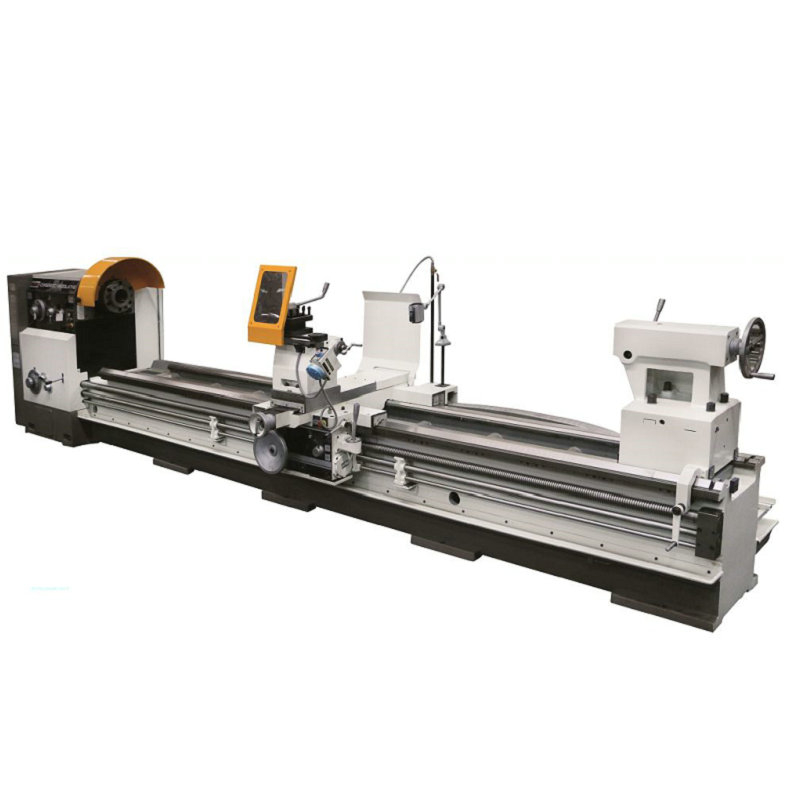

HEAVY DUTY LATHE CW62123C-3000 BY 130MM SPINDLE

Quantity:

MODEL

UNIT

CW62123C-3000mm




Swing over bed

mm

1230

Swing in gap

mm

1490

Swing over cross slide

mm

900

Distance between centers

mm

3000

Length in gap from face plate

mm

380

Spindle nose

mm

C11 or D11(optional)

Spindle bore

mm

130(optional)

Spindle speeds

rpm/steps

10-800/18

Cross slide travel

mm

615

Top rest travel

mm

300

Tool shank size

mm

42×42

Rapid travel

mm/min

Longitudinal Axe Z: 3240

 Converse Axe X: 1870

Quill diameter

mm

120

Quill travel

mm

270

Quill taper


MT6

Bed width

mm

610

Metric threads

mm/kinds

1-240/53

Inch threads

tpi/kinds

30-2/31

Module threads

mm/kinds

0.25-60/46

Diametrical pitch threads

tpi/kinds

60-1/2/47

Longitudinal feeds

mm/r

0.07-16.72

Cross feeds

mm/r

0.04-9.6

Main motor power

kw

11



Packing size

Length

mm

5170


Width

mm

1500


Height

mm

2080

Gross weight

kg

6500


Main Features:
This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market's demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including:  CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.

ModelUnitCW62103CCW62123CCW62143CCW62163CCW62183C
Swing over bedmm10301230143016301830
Swing in gapmm12901490169018902090
Swing over cross slidemm700900110012401440
Distance between centersmm1500, 2000, 3000, 4500, 6000
Length in gap from face platemm380
Spindle nose
C11 or D11
Spindle boremm105, 130
Spindle speeds/stepsr.p.m./steps10 - 800/187 - 531/186 - 480/18
Cross slide travelmm615715815915
Top rest travelmm300
Rapid traversemm/minAxe Z: 3240, Axe X: 1870
Quill diametermm120
Quill travelmm270
Quill taper
MT6
Bed widthmm610
Metric threadsmm/kinds1 - 240/53
Inch threadsTpi/kinds30 - 2/31
Module threadsmm/kinds0.25 - 60/46
Diameter pitch threadsLpi/kinds60 - 1/2/47
Main motor powerkW11
Gross weightKg  - 1500 b/c52005350555057506000

Kg  - 2000 b/c55005650585061006350

Kg  - 3000 b/c63506500670069007150

Kg  - 4500 b/c76007750795081508400

Kg  - 6000 b/c88009000920094009650

Standard accessories:
4-Jaw chuck/ &flange/ Φ500 (103C, 123C); Φ630 (143c, 163c, 183c)
Dead centers, reduction sleeve
Foundation bolts/nuts
Level blocks
Steady rest, Φ500 (103C, 123C), Φ700 (143c, 163c, 183c) (for 3000mm models and upwards)


Optional accessories:
3-jaw chuck & flange
Face plate
Steady rest (less than 3000mm)
Follow rest
Φ130 spindle bore
Electric turret
Electric quill
Taper turning attachment
