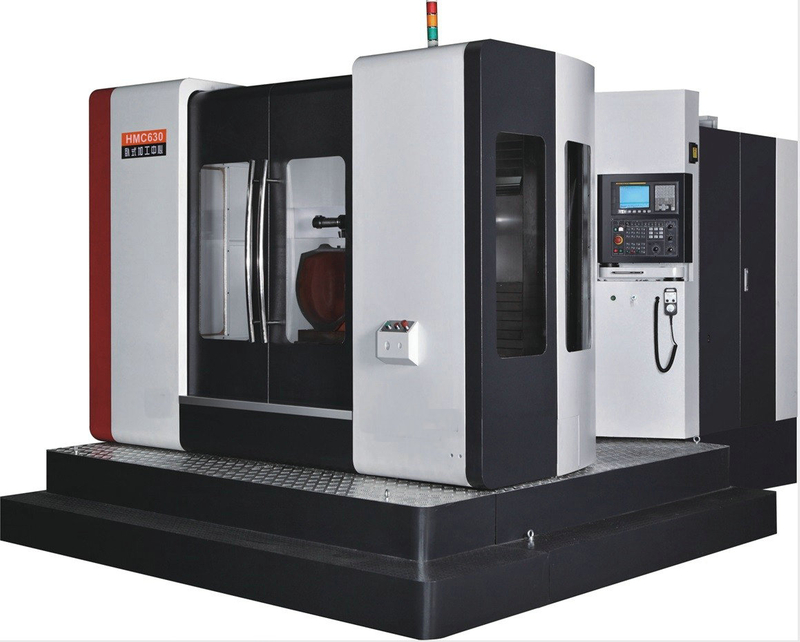

Product Overview
This series vertical machining center adopts the moving structure of cross sliding table and sliding
guide,which is mainly applied in processing of middle and smallscale complicated parts.Apply the
computeraided engineering(CAE)system to finish the optimized structure design and enhance the
reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and
optimization of design structure,which can guarantee the rigidity and stability of the whole machine
structure.It can finish all kinds of processing,such as milling,drilling,expanding,boring,tapping and
profile milling at one time of clamping.It is suitable for the parts processing with high precision,
multipe procedure and complicated shape.It is the key facility in industries of general machinery,
mold,aviation,energy and traffic.
Machine Characteristics
1.The major machine components apply finest gray cast iron which are of good shock resistance.
All the casts have been done with aging treatment twice, in order to eliminate the internal residual
stresses. So that, our machine can work with high rigidity and good shock resistance for heavy
cutting and intermittent cutting.
2.Key components are designed with CAD software, in this way, the optimal structure can be
analyzed out by computer, which ensure the good intensity,rigidity and thermal stability.
3.The joint face of components are manually polished well, which guarantees the effective
contacting area.
Machine Parameter
CODE | ITEM | DETAILS |
1 | Equipment | Horizontal Machining Center |
2 | Factory | Huangshan Wannan Machinery Co.,Ltd |
3 | Model | HMC630P |
Specifications | ||
4 | Table size（L×W） | 630X7000mm |
5 | MAX.LOAD BEARING OF WORKTABLE | 1000 kg |
6 | Travel：X | 1050mm |
7 | Y | 750mm |
8 | Z | 900mm |
9 | Geometric accuracy | JB/T8771.2-1998 |
10 | Location accuracy standard | JB/T8771.4-1998 |
11 | PositionaI accuracy | ±0.010mm |
12 | Repositioning resolution | ±0.006mm |
13 | Control axes | 4 axes, X,Y,Z in linkage |
14 | Spindle motor power | 18.5-22 Kw |
15 | Spindle taper | BT50 |
16 | Max.Spindle speed | 6000 rpm |
17 | Drive type(Spindle) | Belt type |
18 | Distance from spindle center to worktable mm | 130-1030mm |
19 | Distance from spindle end to worktable center mm | 120-870mm |
20 | Rapid feed（X/Y/Z axis） | 24/24/24 m/min |
21 | Rapid speed of B axis | 10m/min |
22 | B axis division accuracy | 10” |
23 | B axis re-division accuracy | 5” |
24 | Worktable number | 2 tables in turn type |
25 | Tool magazine | 24T |
26 | Tool change time | 4.5S |
27 | Machine dimension | 6300*3800*2800mm |
28 | Machine weight | 14000kg |
Equipment work condition | ||
29 | Power request | AC380V±10% 50HZ |
30 | Temperature request | 0℃～+40℃ |
