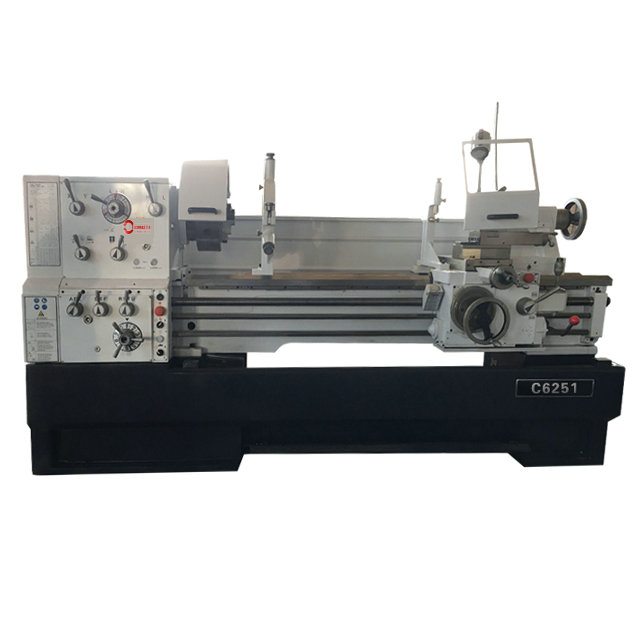

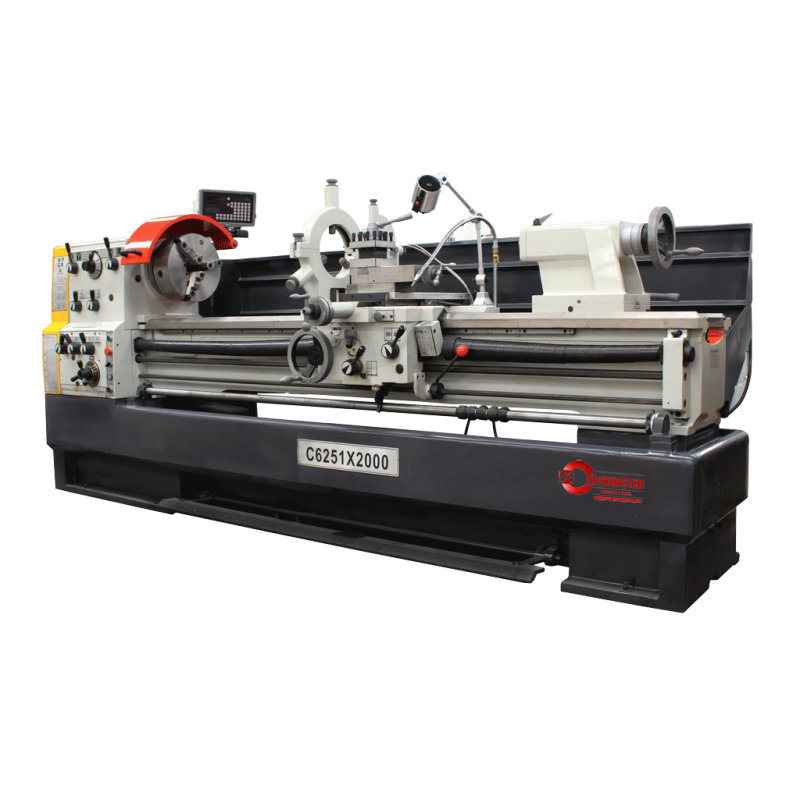

HORIZONTAL LATHE C6251
Quantity: -
C6251
Specification C6251 Swing over bed Φ510mm Swing over cross slide Φ300mm Swing in gap Φ738mm Distance between centers 1000mm/1500mm/2000mm/3000mm Valid length of gap 165mm 200mm Width of bed 300mm 350mm Spindle nose D1-6 D1-8 Spindle bore Φ58mm Φ80mm Taper of spindle bore MT6 MT7 Range of spindle speed 12 changes, 25-2000r/min 12changes,25-1600r/min Max.travel of top slide 128mm 130mm Max.travel of cross slide 285mm 326mm Max.section of tool 25×25mm Pitch thread of leadscrew 6mm or 4T.P.I. Longitudinal feeds range 42 kinds,0.031-1.7mm/rev 35kinds,0.059-1.646mm/rev Cross feeds range 42 kinds, 0.014-0.784mm/rev 35kinds,0.020-0.573mm Metric threads range 41 kinds, 0.1-14mm 47kinds,0.2-14mm Inch threads range 60 kinds, 2-112T.P.I. 60kinds,2-112T.P.I Diametrical pitches range 50 kinds, 4-112DP 50kinds,4-112D.P. Module pitches range 34 kinds, 0.1-7MP 39kinds,0.1-7M.P. Tailstock quill diameter Φ60mm Φ75mm Tailstock quill travel 128mm 180mm Tailstock quill taper MT4 MT5 Power of main motor 5.5kw(7.5HP) 3PH 7.5kw(10HP)3PH Power of coolant pump 0.1kw(1/8HP) 3PH Overall dimension 2200/2750/3250×1080×1370mm 2900/3400×1120×1430mm Packing size 2250/2800/3300×1120×1620mm 2960/3460×1130×1820mm Net weight 1670/1920/2070kgs 2335/2685kgs Gross weight 1980/2265/2450kgs 2700/3070kgs
