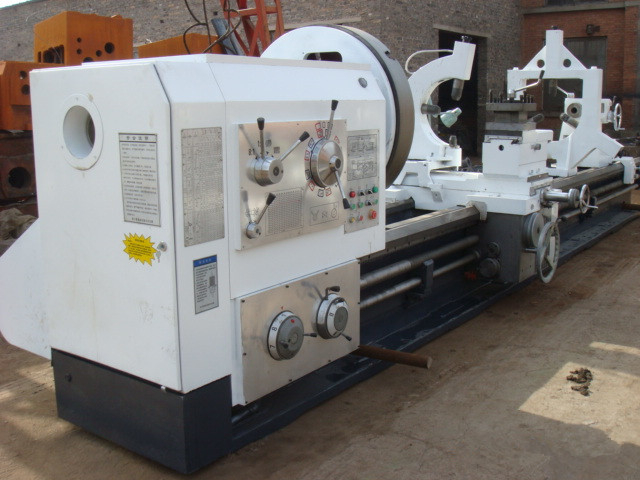

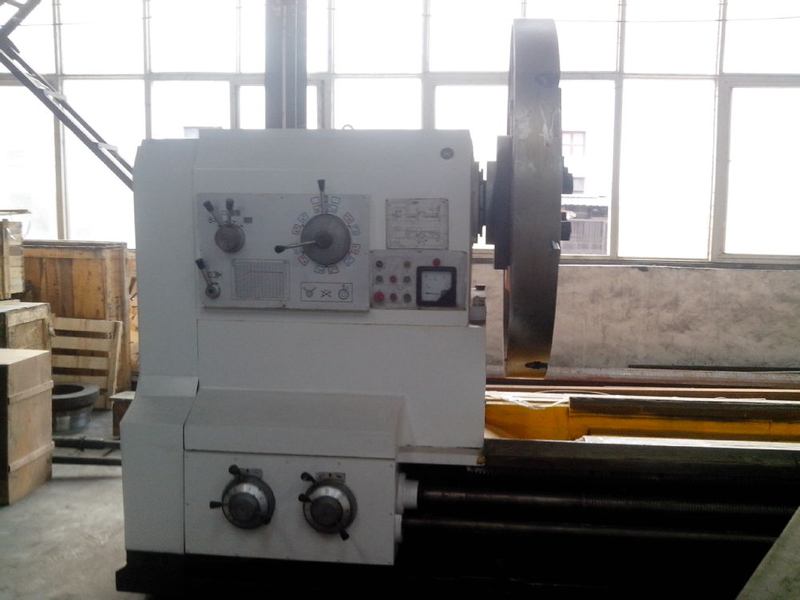

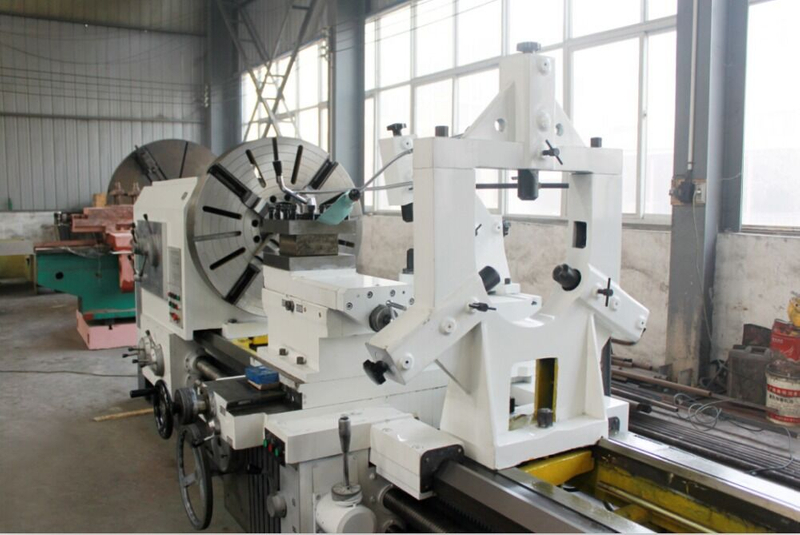

HORIZONTAL LATHE CW61125-CW61160-CW61180-CW61200-CW61220
Quantity: -
CW61125
Specification CW61125 CW61160 CW61180 CW61200 CW61220 Swing over bed 1250mm 1600mm 1800mm 2000mm 2200mm Bed width 755mm 755/1100mm 1100mm Workpiece length 1500/ 3000/ 5000/ 6000/ 8000/ 15000mm Swing over toolpost 865mm 1200mm 1400mm 1600mm 1800mm Max. turning length 1300/ 2800/ 4800/5800/7800/14800mm Toolpost feed kinds each spindle rotate 56 kinds Toolpost cross feed range each spindle rotate 0.1-12mm/r Toolpost longitudinal feed range each spindle rotate 0.05-6mm/r Upper toolpost 0.025-3mm/r Metric thread 43 kinds 1-20mm Inch thread 29 kinds 28-3/8 teeth / inch Module thread 45kinds 0.5-60mm Pitch thread 25 kinds 1-56mm Spindle bore 130mm Spindle front taper Metric 140 Spindle speed steps and range forward 21 kinds 2-200r/min Reverse 12 kinds 2.24-178 r/min Max.section of tool 45×45mm Toolpost longitudinal travel 630mm Upper toolpost travel 300mm Toolpost rapid movement Longitudinal/Cross/Upper 3470/1870/935mm/min Center sleeve dia and travel 160×300mm 210×300mm Tailstock taper MT6 Metric 80 Tailstock longitudinal movement ±25 Main motor Y180L-4 22KW Main transsion V belt specification 2134C 2235C 2540C 2540C 2880C Carriage rapid motor JC02-21-2-1.5KW Coolant pump JCB-45 0.15KW Coolant pump flow 45L/min 4-jaw chuck 1000/1250mm 1250/1400mm Steady rest 50-470mm 50-600mm Follow rest 50-220mm
