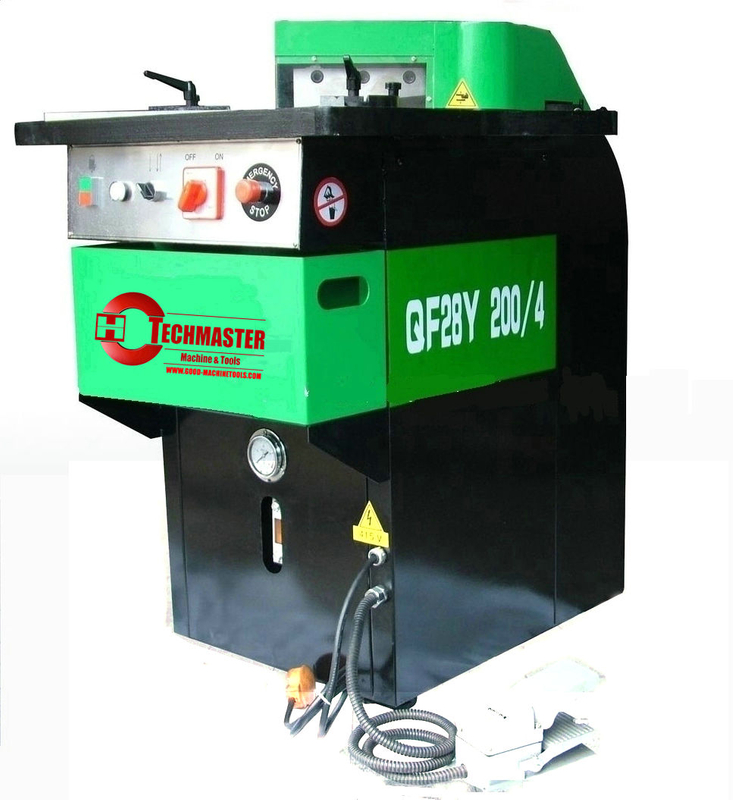

HYDRAULIC NOTCHING MACHINES QF28Y
Quantity: Fixed Angle Notching Machine QF28Y:
Fixed angle blades positioned at 90° Cuts in a wide variety of materials and thickness' (from 1mm to 6mm).
Absolute rigidity is provided by our monoblock steel casting (65kg/mm² ) incorporating a 3-guide system holder assures unmatched cutting precision and blade life.
You may select between single step mode or step by step mode.
The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task.
Model QF28Y-4*200 QF28Y-6*200 Cutting thickness(mm) 4 6 Cutting length(mm) 200 200 Cutting angle range 90° 90° Power(Kw) 3 4 Dimension(mm) 1000×1000×1200 1000×1000×1200 Net weight(Kg) 550 580
Fixed Angle Notching Machine QF28Y:
Fixed angle blades positioned at 90° Cuts in a wide variety of materials and thickness' (from 1mm to 6mm).
Absolute rigidity is provided by our monoblock steel casting (65kg/mm² ) incorporating a 3-guide system holder assures unmatched cutting precision and blade life.
You may select between single step mode or step by step mode.
The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task.
Model QF28Y-4*200 QF28Y-6*200 Cutting thickness(mm) 4 6 Cutting length(mm) 200 200 Cutting angle range 90° 90° Power(Kw) 3 4 Dimension(mm) 1000×1000×1200 1000×1000×1200 Net weight(Kg) 550 580
