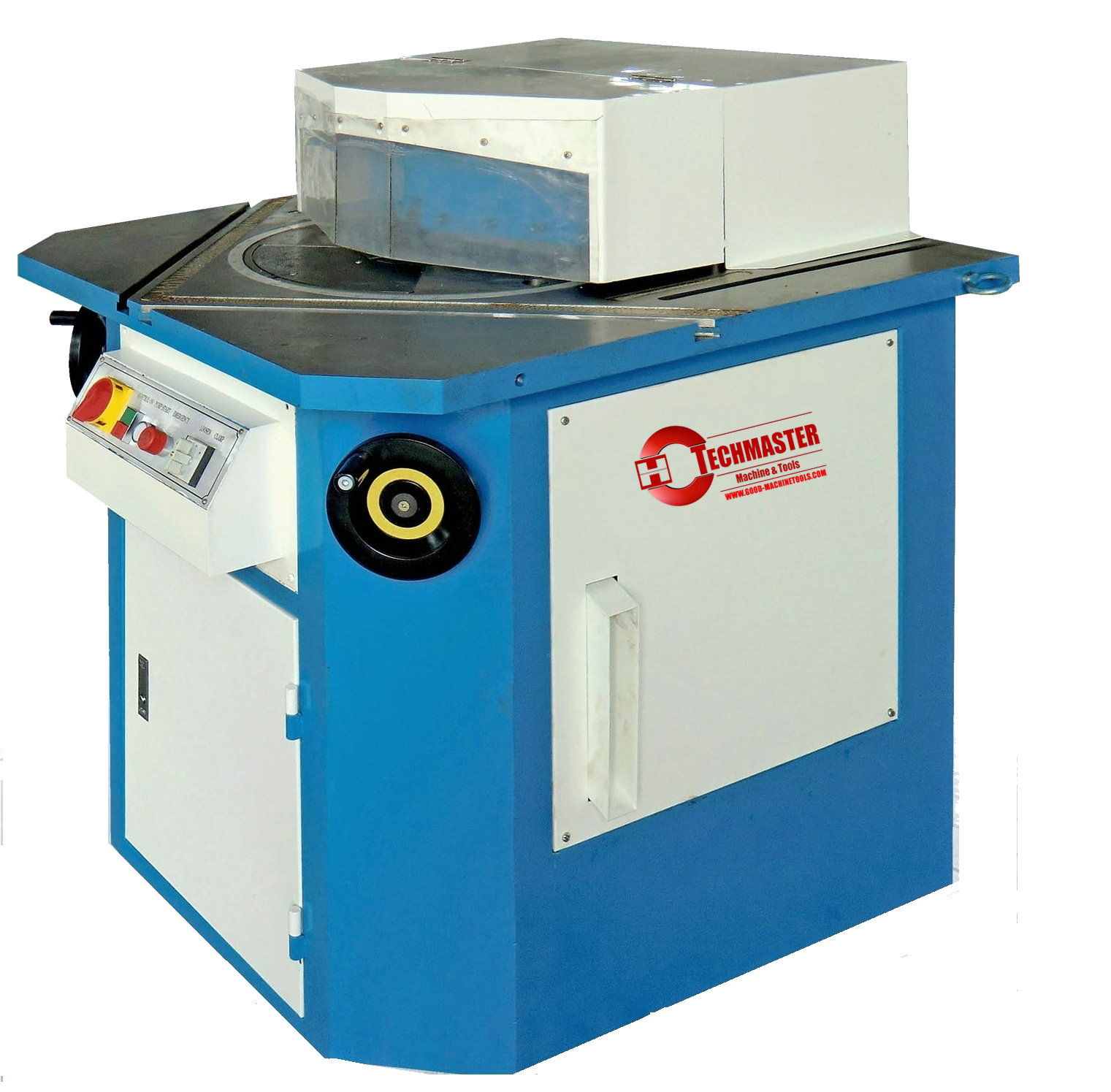

HYDRAULIC NOTCHING MACHINES QX28Y
Quantity: -
QX28Y
Variable Angle Notching Machine QX28Y:
Variable angle blades adjust between 30° And 140° . For variable angle notching with multi attachment the angle can be changed non symmetrical individually for each side. Cuts in a wide variety of materials and thickness (from 1mm to 6mm).
Absolute rigidity is provided by our monoblock steel casting (65kg/mm² ) incorporating a 3-guide system holder assures unmatched cutting precision and blade life.
You may select between single step mode or step by step mode.
The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task.
Model QX28Y-4*200 QX28Y-6*200 Cutting thickness(mm) 4 6 Cutting length(mm) 200 200 Cutting angle range 40°~135° 60°~135° Power(Kw) 3 5.5 Dimension(mm) 1500×1000×1400 1500×1000×1400 Net weight(Kg) 1450 1470
