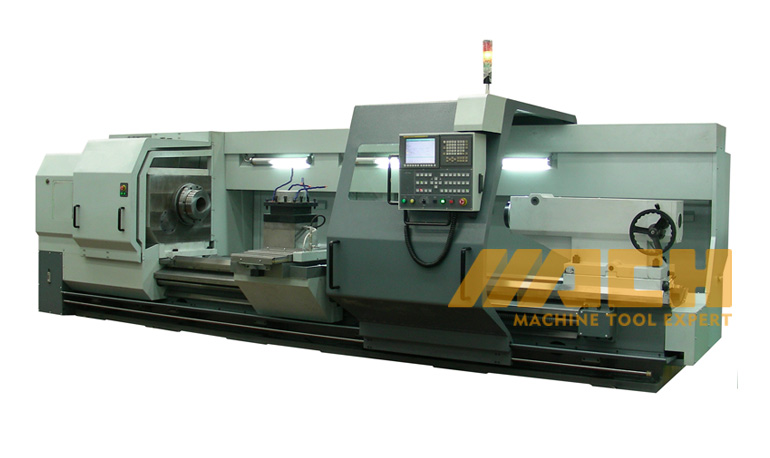

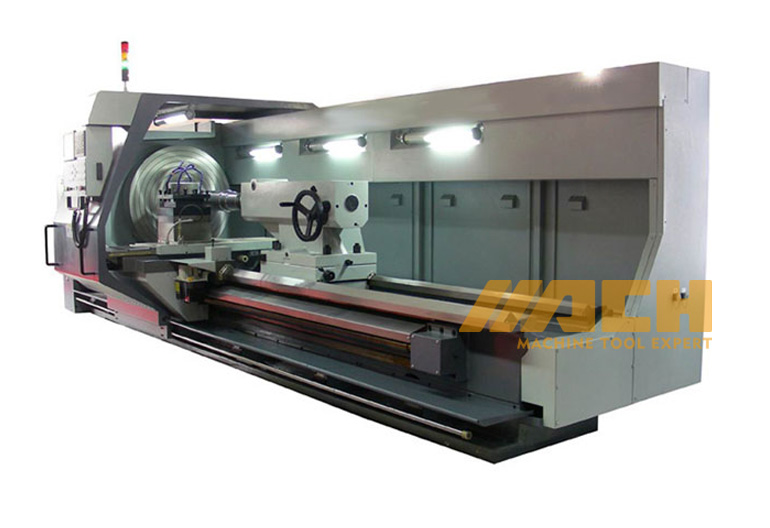

Heavy-duty CNC Lathe Machine Model:CKE61100M/CKE61125M
Quantity: -
Heavy-duty CNC Lathe Machine Model:CKE61100M/CKE61125M
MAIN FEATURES
1. Construction casting molded with resin sand of bed,headstock,saddle plinth,ect2. Turcite-B coated on mating surfaces between saddle and guideways
3. Precision ballscrew,high rigidity precision compound bearings ensure accurate positioning and efficient
driving.Centralized oil lubricator providing forced automatic lubrication onto ballscrew,mating surfaces4. High spindle speed with wide variable speed ranges.Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the machine.
5. CKE-i series with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
6. Flexible control panel enables convenient tool setting.
7. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
Item CKE61100M CKE61125M Max. swing over bed(mm) mm 1000 1250 Width of bed (mm) mm 755 755 Max. length of work piece (mm) mm 1000~6000 1500~6000 Max. swing over slide(mm) mm 630 880 X travel (mm) mm 520 640 Z travel (mm) mm 1400~7900 1400~7900 Spindle nose
A2-15 A2-15 Chuck size (mm) mm 1000 1250 Taper of spindle bore
1:20 1:20 Spindle bore (mm) mm 130 120 Spindle speed (Frequency conversion motor) r/min 2-87
5-201
11-5002-87
5-201
11-500Steps of spindle speed
3-step actuator 3-step actuator Frequency conversion motor power (kW) kw 22/26 22/26 Rapid traverse X/Z (m/min) m/min 6/8 6/8 Diameter of tailstock quill (mm) mm 200 200 Travel of tailstock quill (mm) mm 300 300 Taper of tailstock quill
M6 M6 STANDARD ACCESSORIES
4 jaw chuck
Servo spindle motor package
Chip conveyor
Spindle center
Oil gun
Center (tailstock)
Center sleeve
Tool box with tools
Work light
Foundation bolts
Spanners
Operator manualOPTIONAL ACCESSORIES
Steady rest 50~220mm
Steady rest 50~470mm
8 station horizontal electric turretMAIN FEATURES
