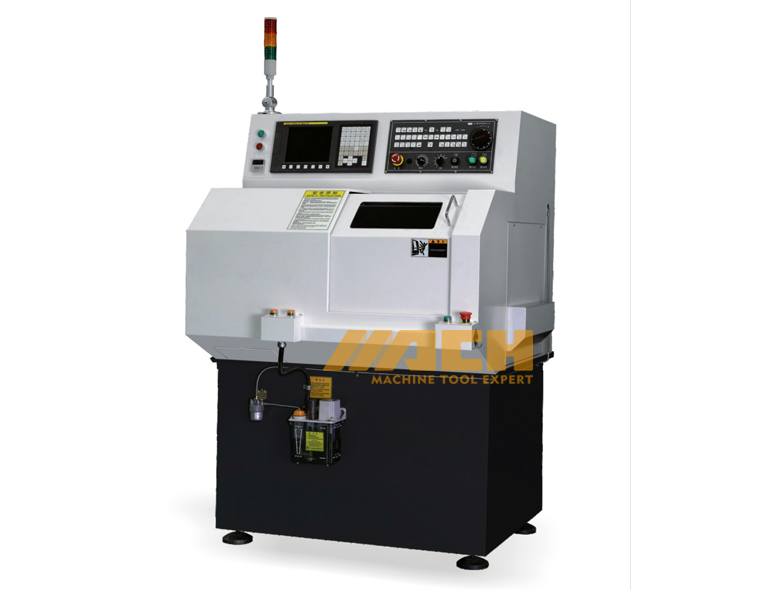

High Precision Small CNC Lathe Machine Model:20FA
Quantity: -
High Precision Small CNC Lathe Machine Model:20FA
MAIN FEATURES
1 High Precision Spindle
2 High Efficient Machining
3 Machine Bed Construction
4 Accurate Feeding
5 Gang Type Tool Rest
6 Guideway Construction
7 High Precision, Great Rotation Speed, Low Cost
8 Perfect Machining
9 Powerful AC Servo Motors
10 Low Cost
Model 20FA Capacity Swing over bed Φ 240mm Swing over cross slider Φ 120mm Max.machining diameter Φ 100mm Max.machining length 100mm Spindle Spindle speed Max.6000 r /min Through hole diameter Φ 20mm Spindle speed ranges stepless Collet shank Φ 26mm Rapid traverse X-axis rapid traverse 20m/min Z-axis rapid traverse 20m/min Travel of tool slider X-axis teavel 200mm( option 250mm) Z-axis travel 180mm Motor Spindle motor 5.5KW Feed motor 0.75KW Electric power 6KVA Floor space 1240 × 1360 × 1580mm Height from floor to spindle center 985mm Mass of machine about 1100kg Control system FANUC 0i-mate-TD Controlled axes Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M(512KB) Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command x: 0.0005mm Z: 0.001mm Feed rate Feed per min 1~10000mm/min Feed per rev 0.0001~500mm/rev Tool offset pairs 64 pairs Auxiliary function M,S,T Dwell time 0~99999.999 sec Feed rate override 0~150% Rapid traverse override F0 、 25 、 50 、 100 Input/output interface RS232C Language Chinese/English STANDARD ACCESSORIES
1 ．Coolant system 1 set
2 ．Lighting unit 1 set
3 ．Air type chuck system 1set
4 ．Collet chuck blank 1set
5 ．Chuck adaoter 1set
6 ．Preset base 1set
7 ．S1/S2Tool holder each 2 piece
8 ．Pulling device/I.D tool holder each 1 piece
9 ．Milling collet chuck 1set
10 ．Tool box 1set
11． Signal lamp 1set
12 ．Machine base 4set
13 ．Air blower system 1set
14 ．Counter 1set
15 ．Chuck 4set
16．CS contouring control 1setOPTIONAL ACCESSORIES
1 ．Various spindle chuck
2 ．Various tool holder
3 ．Partsconveyer
4 ．Power chuck(4″)
5 ．Cross driven tool
6 ．Parts feeder
7 ．Kinds of cutters
8 ．Main spindle fixed position stopping device (with air type locking deviceMAIN FEATURES
