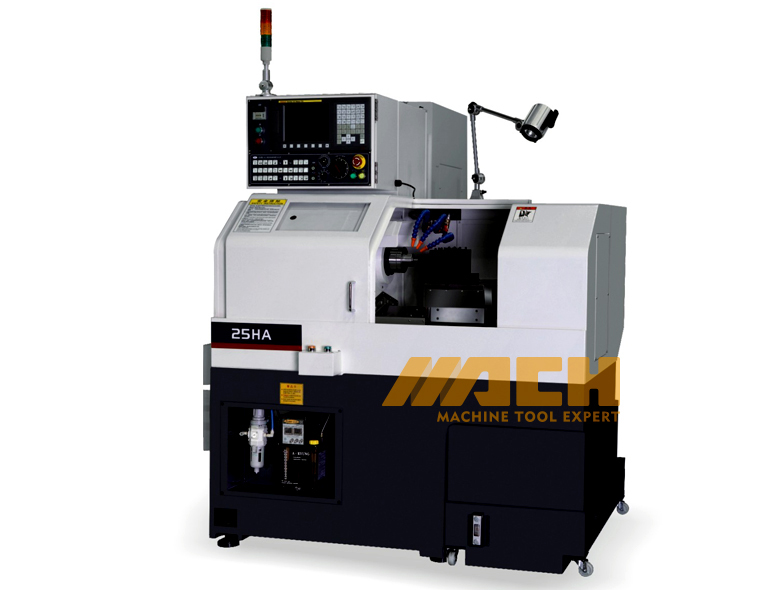

High Precision Small CNC Lathe Machine Model:25HA
Quantity: -
High Precision Small CNC Lathe Machine Model:25HA
MAIN FEATURES
1.High Accuracy Symmetry Spindle
2.Unloading Type Clamping Mechanism
3.High Rrgidity Bed
4.Accurate Feeding
5.Comb Type Tool Rest
6.Guide way Construction
7 Electric Cabinet and Cutting Box
Model 25HA capacity swing Φ 310mm swing over cross slide Φ 160mm Max.turning dia. Φ 130mm Max.turning length. 100mm spindle spindle speed Max.6000r/min spindle bore dia. Φ 35mm through hole dia. Φ 20mm ranges of spindle speed stepless rapid traverse X-axis rapid traverse 20m/min Z-axis rapid traverse 20m/min travel of tool slider X-axis teavel 240mm Z-axis travel 180mm motor Spindle motor 3.7/5.5kW Feed motor 0.75kw electric power 7KVA mass 1500Kg floor space（L×W×H） 1527 X 1107 X 1661mm wooden case（L×W×H） 2010 X 1510 X 2175mm Control system FANUC Oi-MATE TD Controlled axes Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M（512KB） Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command X:0.0005mm Z:0.001mm Feed rate Feed per min 1-10000mm/min Feed per rev 0.0001-500mm/rev Tool offset Geometry ±999.9999 Wear ±9.9999 Tool offset pairs 64pairs Number of register able program 400set Manual handle feed 0.5/0.1/0.01/0.001 Auxiliary function M、S、T Dwell time 0－99999.999sec Feed rate override 0－150％ Rapid traverse override F0、25、50、100 Input/output interface RS232C Language Chinese/English CS contouring control Cs0.001
NDARD ACCESSORIES
Coolant system 1set
Lighting unit 1set
Automatic slider surface lubricate 1set
Air lube unit 1set
Air type chuck system 1set
Collet chuck blank 1set
Collet adater 1set
Preset base 1set
S Tool holder 3set
S2 Tool holder 2set
I.D tool holder each 1piece
Milling collet chuck 1set
Tool box 1set
Circuit breake 1set
Machine base 4set
Machine vinyl cover 1set
Signal lamp 1set
Air blower system 1set
Chuck 4set
Counter 1set
CS contouring control（HC） 1setOPTIONAL ACCESSORIES
Various spindle chuck
Various tool holder
Partsconveyer
Power chuck(4″)
Cross driven tool
Auto-loader and unloader
Parts feeder
Kinds of cutters
Main spindle fixed position stopping device(with air type locking device)
