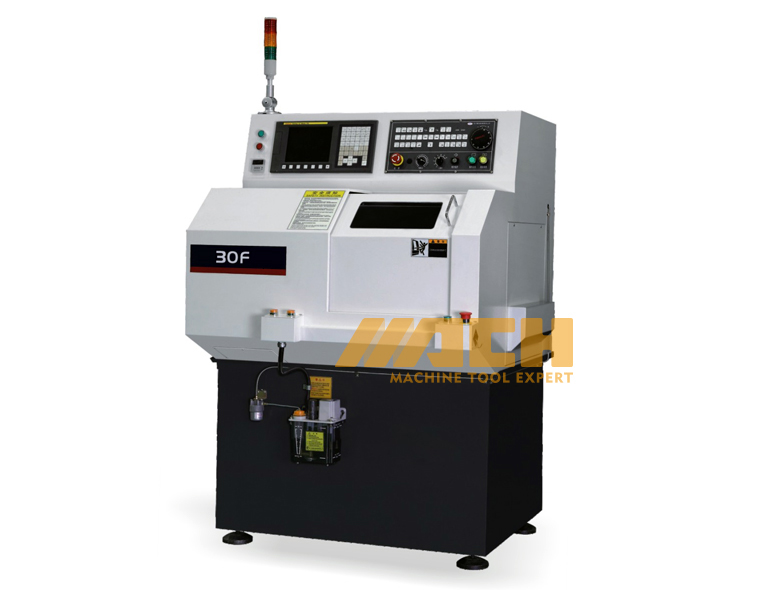

High Precision Small CNC Lathe Machine Model:30F
Quantity: -
High Precision Small CNC Lathe Machine Model:30F
MAIN FEATURES
1 High Precision Spindle
2 High Efficient Machining
3 Machine Bed Construction
4 Accurate Feeding
5 Gang Type Tool Rest
6 Guideway Construction
7 High Precision, Great Rotation Speed, Low Cost
8 Perfect Machining
9 Powerful AC Servo Motors
10 Low Cost
Model 30F Capacity Swing over bed Φ 240mm Swing over cross slider Φ 120mm Max.machining diameter Φ 100mm Max.machining length 100mm Spindle Spindle speed Max.6000 r /min Through hole diameter Φ 30mm Spindle speed ranges stepless Collet shank Φ 36mm Rapid traverse X-axis rapid traverse 20m/min Z-axis rapid traverse 20m/min Travel of tool slider X-axis teavel 250mm( option 200) Z-axis travel 180mm Motor Spindle motor 3.7/5.5KW Feed motor 0.75KW Electric power 6KVA Floor space 1240 × 1360 × 1580mm Height from floor to spindle center 985mm Mass of machine 1150kg Control system FANUC 0i-mate-TD Controlled axes Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M(512KB) Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command X: 0.0005mm Z: 0.001mm Feed rate Feed per min 1~10000mm/min Feed per rev 0.0001~500.0000mm/rev Tool offset pairs 64 pairs Auxiliary function M,S,T Dwell time 0~99999.999 SEC Feed rate override 0~150% Rapid traverse override F0 、 25 、 50 、 100 Input/output interface RS232C Language Chinese/English
STANDARD ACCESSORIES
Coolant system 1set
Lighting unit 1 set
Automatic slider surface lubricate 1set
Air type chuck system 1set
Collet chuck blank 1set
Preset base 1set
S1/S2Tool holder each 2piece
Pulling device/I.D tool holder each each 1piece
Milling collet chuck 1set
Tool box 1set
Machine base 4set
Counter 1set
Chuck 4set
Air blower system 1set
Main spindle fixed position stopping device 1set
CS contouring control 1setOPTIONAL ACCESSORIES
Various spindle chuck
Various tool holder
Partsconveyer
Power chuck（4″）
Cross driven tool
Parts feeder
Kinds of cutters
Main spindle fixed position stopping device
(with air type locking device)MAIN FEATURES
