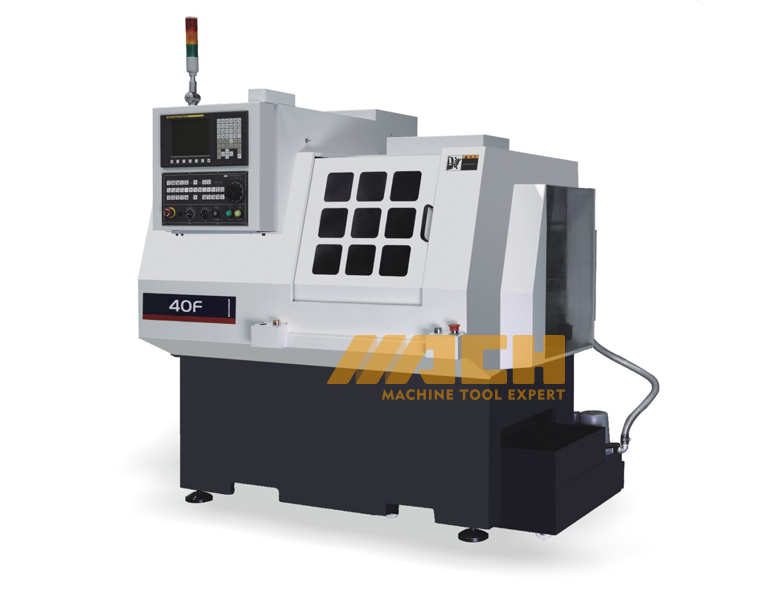

High Precision Small CNC Lathe Model:40F
Quantity: -
High Precision Small CNC Lathe Model:40F
MAIN FEATURES
1 High Precision Spindle2 Accurate Feed
3 High Efficiency Machining
4 Large travel comb type tool rest
5 Extra heavy cutting
6 Powerful force cooling
Model 40F Capacity Max.swing dia.over bed Φ 400mm wing over cross slide Φ 90mm Max.turning dia Φ 360mm Max.turning length 200mm Spindle Spindle speed 40FA/40FC：60～5500rpm（collet） Spindle bore dia Φ 57mm Through hole dia Φ 45mm （chuck）/Φ 42mm (collet) Main motor XKC40FA/40FC：Servo Motor5.5/7.5KW Turret Number of stations 7 Tool size 20X20/Φ25 Axes Travel X 360mm Travel Z 230mm (chuck）? 220mm（collet） Rapid feed（ X/Z） 18m/min Feed motors（ X/Z） servo 1.2KW Others Chuck 5″ Rotating hydraulic cylinder 6″ Required electric power (KVA) 12KVA Floor space(L*W*H) 1811X1523X1672 Mass 2100Kg Control system Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M（512KB） Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command X:0.0005mm Z:0.001mm Feed rate Feed per min 1-10000mm/min Feed per rev 0.0001-500.0000mm/rev Tool offset pairs 64pairs Auxiliary function M、S、T Dwell time 0－99999.999sec Feed rate override 0－150％ Rapid traverse override F0、25、50、100 Input/output interface RS232C Language Chinese/English
STANDARD ACCESSORIES
Coolant system 1set
lighting unit 1set
Automatic slide surface lubricate 1set
Hydraulic clamping unit 1set
Preset base 1set
S1、S2 Tool holder I.D holder 1set
S3 Tool holder 2set
Milling collet chuck 1set
Tools and tool box 1set
Circuit breake 1set
Machine base 4set
Transformer 1set
5″Collet(with 1 spring collet) 1setOPTIONAL ACCESSORIES
Hydraulic chuck(6″)
Parts feeder
Auto parts catcher
Part conveyer
Spring collet
Kinds of cutters
Cross driven tools
Pneumatic system
Various fixture and jigs
Counter
