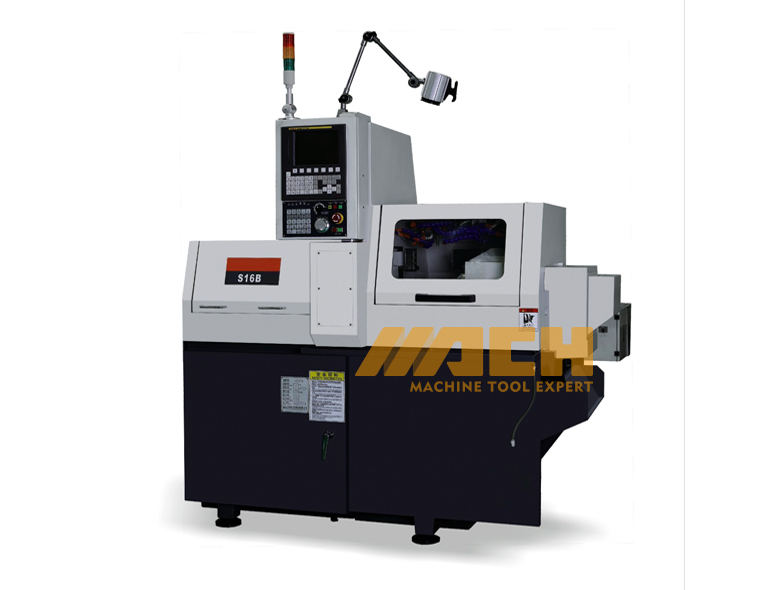

High Precision Small CNC Lathe Model:S16B
Quantity: -
High Precision Small CNC Lathe Model:S16B
MAIN FEATURES
1.S16 is driven by the FANUC control system designed for 5-axis operation.2.The built-in main axis,electrically driven and forced-oil-cooled,is enabledwith high speed,low noise,minimum thermal deformation.
3.Tool move is sync with axis move for versatile applications.
4.The sub-spindle is architected for synergetic machining opposite to the direction of the main axis.
5.With the rotation positioning of the main axis and the Cs axis being maintained within 0.00-degree limit and power tools being mounted on,the S16 model enables the precision drilling and milling process.
6.The row-tool set,electromechanically configured with compact architecture,can be operated with good precision.
7.Ergonomically structured all-round casings ,the machine is considered the best solution to the automated machining of small-size critical components for applications in such industries as defense,aerospace,medical appliances,electronic hardware and watch manufacturing.
Model S16B capacity Max.spindle hole dia.(main spindle/sub-spindle) φ16 mm Max.turning length 210mm（fixed guide bush） 80（rotary guide bush） 45（tool feed） Max. main spindle drilling dia. Φ7.0mm（ER11） Max. main spindle tapping dia. M6（ER11） Max.sub-spindle clamping dia. Φ16mm Max.sub-spindle drilling dia. Φ7.0mm（ER11） Max.sub-spindle tapping dia. M6（ER11） Max.power tool drilling dia. Φ6.0 Max.power tool dia. Φ10mm（ER16） Max.power tool tapping dia. M5 Sub-spindle Center Height 1000 Main spindle speed 200 ～ 10000rev/min commann speed 6000 r/min Speed command S code + 4 digit command Main spindle motor bulit-in motor1.5/2.2kW Sub-spindle motor bulit-in motor1.5/2.2kW Sub-spindle speed 200 ～ 10000rev/min commann speed6000 r/min Through-hole dia. Φ17.0 mm feed spindle Number of axis 5axis Rapid move speed 24m/min Z1axis travel 220 Z2axis travel 170 X1axis travel 42 X2axis travel 200 Y1axis travel 170 Turret specs Number of tools
Outside dia. 5stations Front 4stations Power tools 4stations，Max tool diaΦ7.0mm Back side 4stations Tool bar specs
Outside dia. □12 x 85 Front ER11T-ST20×70L Collect chuck and guide bush specs chuck 3～16 Guide fixed,rotary 3～16 Cutting oil Oil tank volume 80.0L Oil tank power 0.18kW
Cutting oil variety Non aqueus Power supply and others Power capacity 11kVA Air pressure and volume 0.4Mp以上，30NL/min Floor spaceL × W × H 1640×1080×1700 Mass 1700kg Number of axis 5axis
Number of simultaneously controled axes X,Z,Y
Axis names X1, X2, Z1, Z2, Y1,
Main spindle power 2.2kW
Servo motor X1,Z1,X2, Z2, Y1, 0.5KW,
Min setting unit 0.001 mm
Min travel unit 0.001mm(X axis:0.0005mm)
Max command value ±8 digit
Interpolation functions Direct line,circular
Cutting feed speed 1～6000m/min
Cutter compensation ±6
Cutters compensated 64set
Program storage capacity 512k
Programs 400
Auxiliary functions M5
Main spindlefunctions S5
Tool functions T4 STANDARD ACCESSORIES
1. FANUC Oi-MATE TD Systems
2 Japan THK high-precision ball screw
3 Japan NSK Bearings
4 Japanese THK linear guide
5 Automatic lubrication unit
6 Servo spindle
7. FANUC servo feed motor
8. Clamping system
9 Power Tool
10. Guide sleeve and collet 2 sets
11. I / O Interface RS232C
12. Feeder Interface
13 AirTAC solenoid valve
14 Schneider main electrical components
15 Taiwan YINSH wire loop
16 Taiwan bolt, the top wire
17 Germany KTR Couplings
18. Machine full protective casing 1 set
19 Short circuit protection 1
20. Transformer 1 set
