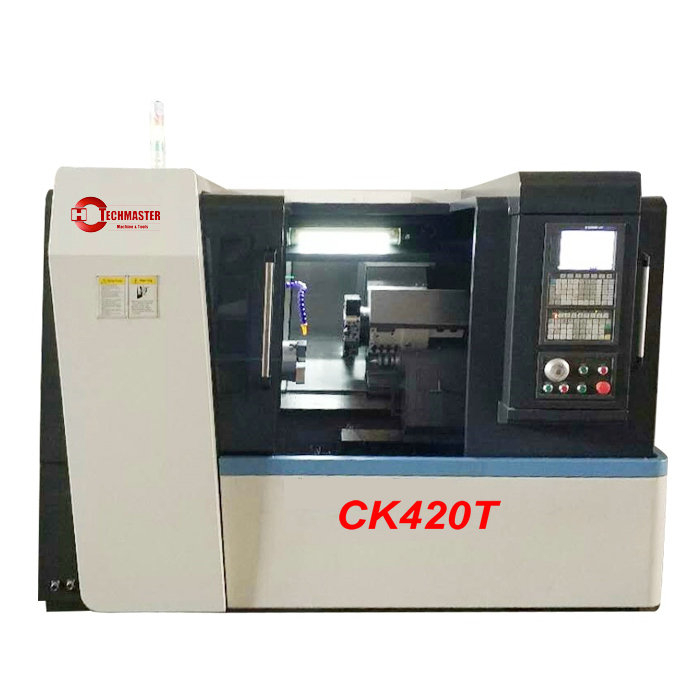

Horizontal Slant Bed CNC Lathe CK420T

Quantity:
  • CK420T

Features:

  1. Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.
  2. High speed at 5000r/min. First-class precision spindle bearing.
  3. High precision ball screw Rexroth, fast feeding for high working efficiency.
  4. All-closed stainless steel protection, strong liquid protection without any water leak.
  5. 8-12 position hydraulic turret, easy machining for complex parts.


    Specification CK420T
    Max.swing over bed 420mm
    Max.swing over cross slide 360mm
    Max.maching diameter(disk/rod) 320mm/80mm
    Max.length of work piece 420mm
    spindle bearing diameter 100mm
    Spindle bore diameter 62mm
    Spindle bore taper 80mm
    Spindle nose A2-6
    Spindle speed range 60-3800r/min
    Power of the main motor 7.5-11kw
    Min.input unit 0.0005/0.001mm
    Rapid speed  20/20m/min
    Hydraulic chuck  8"
    Hydraulic station  8
    Max .tool shank  25x25mm
    Max.dia for boring size 32mm
    Quill diameter  80mm
    Quill travel 80mm
    Packing size 2220x1405x1640mm
    N.W/G.W 3000/3400kgs



    Standard Equipment

    CNC control systemFanuc or Siemens or Mitsubishi as you select

    Spindle bearingJapan NSK or Germany FAG P4 class.

    Hydraulic chuck: Japan HOWA Hollow

    Hydraulic cylinder: Japan HOWA Hollow

    Linear guidewayJapan THK or Germany Rexroth.

    LeadscrewTaiwan Yintai precision ball screw

    Leadscrew bearing: Japan NSK or Germany ESKY

    Turret: Taiwan Liuxing 8 positions

    Hydraulic station: Made in Taiwan famous brand

    Alarm lamp

    Auto-lubricating system

    Cooling system



    Optional Accessories:

    Hydraulic turret: 12-Position

    Auto chip conveyor

    Auto bar feeding
