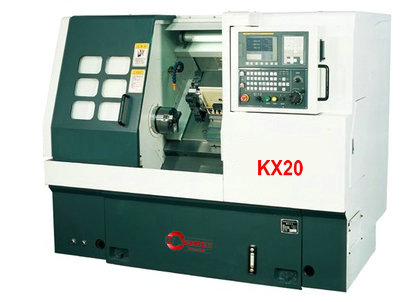

Horizontal Slant Bed CNC Lathe KX series

  1. Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.
  2. High speed at 5000r/min. First-class precision spindle bearing.
  3. High precision ball screw Rexroth, fast feeding for high working efficiency.
  4. All-closed stainless steel protection, strong liquid protection without any water leak.
  5. 8-12 position hydraulic turret, easy machining for complex parts.

    Product Description


    Integrated slant bed structure, easy liquid leaking, high rigidity and good operation.
    High speed at 5000r/min. First-class precision spindle bearing.
    High precision ball screw Rexroth, fast feeding for high working efficiency.
    8-2 position hydraulic turret, easy machining for complex parts.
    Allclosed stainless steel protection, strong liquid protection without any water leak.

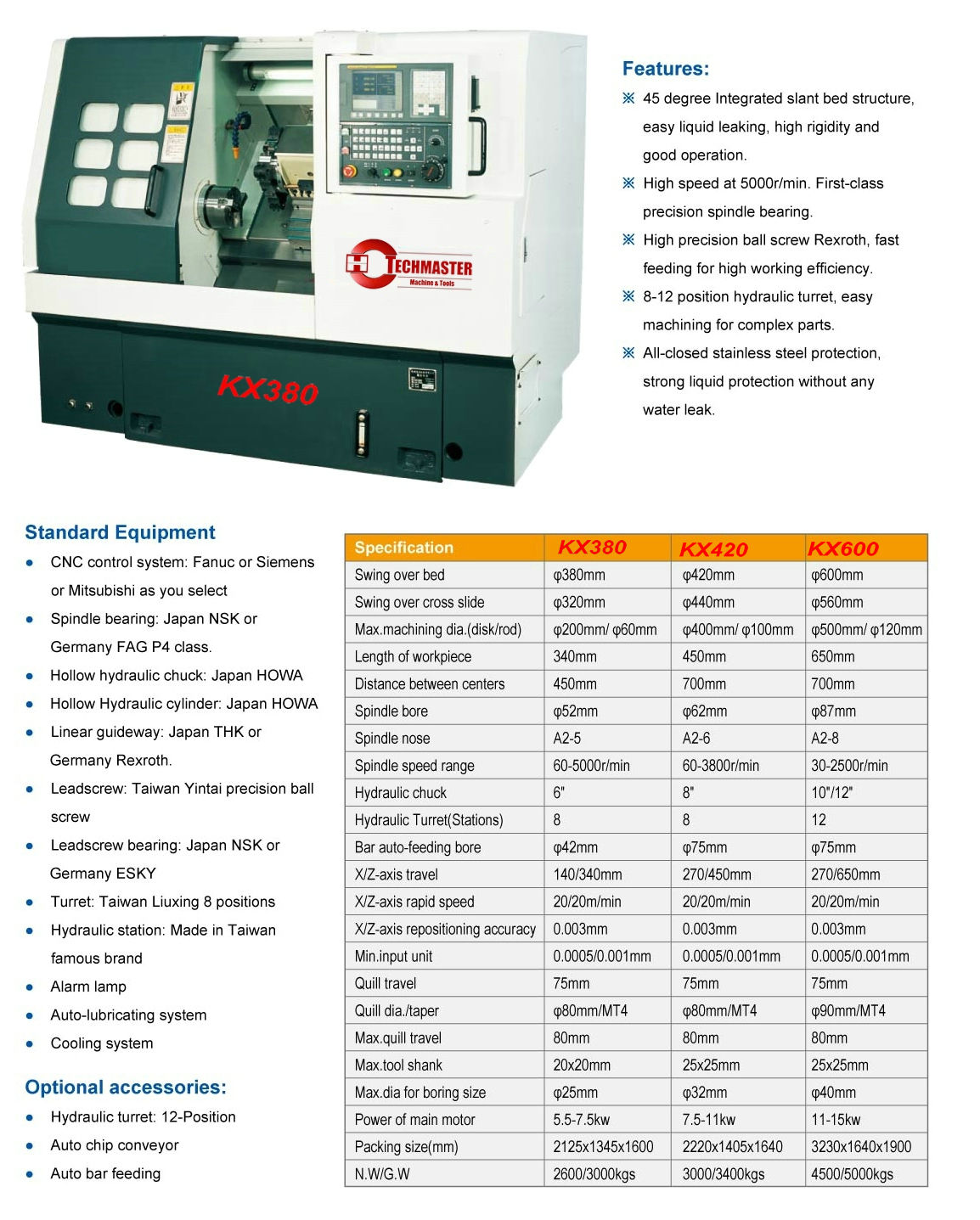

    Main specification:

    KX380 KX420 KX600
    Swing over bed 380mm 420mm 600mm
    Swing over cross slide 320mm 440mm 560mm
    Max.machining dia.(disk/rod) 200mm/60mm 400mm/100mm 500mm/120mm
    Length of workpiece 340mm 450mm 650mm
    Distance between centers 450mm 700mm 700mm
    Spindle bore 52mm 62mm 87mm
    Spindle nose A2-5 A2-6 A2-8
    Spindle speed range 60-5000r/min 60-3800r/min 30-2500r/min
    Hydraulic chuck 6" 8" 10"/12"
    Hydraulic Turret(Stations) 8 8 12
    Bar auto-feeding bore 42mm 75mm 75mm
    X/Z-axis travel 140/340mm 270/450mm 270/650mm
    X/Z-axis rapid speed 20/20m/min 20/20m/min 20/20m/min
    X/Z-axis repositioning accuracy 0.003mm 0.003mm 0.003mm
    Min.input unit 0.0005/0.001mm 0.0005/0.001mm 0.0005/0.001mm
    Quill travel 75mm 75mm 75mm
    Quill dia./taper 80mm/MT4 80mm/MT4 90mm/MT4
    Max.quill travel 80mm 80mm 80mm
    Max.tool shank 20x20mm 25x25mm 25x25mm
    Max.dia for boring size 25mm 32mm 40mm
    Power of main motor 5.5-7.5kw 7.5-11kw 11-15kw
    Packing size(mm) 2125x1345x1600 2220x1405x1640 3230x1640x1900
    N.W/G.W 2600/3000kgs 3000/3400kgs 4500/5000kgs
    With standard equipment:
    1.Fanuc Oimate TD
    2.Spindle bearing: Japan NSK or Germany FAG P4 class.
    3.Hydraulic chuck: Hollow Taiwan Brand 6" for CK38T / 8" for CK42T / 12" for CK60T
    4. Hydraulic turret: 8 Position for CK38T/CK42T and 12 position for CK60T
    5.Linear guideway: Japan THK or Germany Rexroth.
    6.Leadscrew: Taiwan Yintai precision ball screw
    7.Leadscrew bearing: Japan NSK or Germany ESKY
    8.Hydraulic station: Made in Taiwan famous brand
    9.Alarm lamp
    10.Auto-lubricating system
    11.Cooling system
    Guarantee Terms:
    Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operationcan contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
