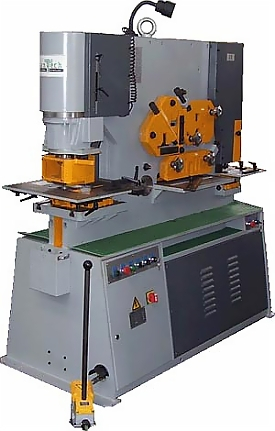

Hydraulic Steelworker
Quantity: The Hydraulic Steelworker machine is a bolted and welded steel mono-block construction. Steelworker is a 2-cylinder version (simultaneous working) with 5 stations:- hole punching,
- plate shearing
- angle shearing
- bar cropping
- notching
- power inching,
Standard Features and Equipment
- CE conformity including Safety Guarding on all stations and key-switch to isolate the notch station,
- Adjustable Strokes complete with rules at punch and shear end,
- Quick change punch holder with positive keyway location for shaped tools,
- Swing-away punch stripper,
- Universal 'Goose Neck' Die Holder up to o 57 mm to accommodate punching of flats - angles - channel,
- Adjustable hold-down plate on the hole punching, shearing and bar cropping station,
- 1M Auto Cut Length Stop Robust tables complete with rules - plate guides - quick release handles,
- 2 - hand moveable foot pedals,
- Halogen Light on magnetic base,
- 10 punches and dies up to o 38 mm,
- Hydraulic and Electrical overload protection,
- Tool kit and operator instruction manual,
- Compact, low-maintenance, hydraulic unit located at the bottom inside of the machine
Optional Equipment
- Plate Bending Unit,
- Minimum Deform Stripper,
- Chamfered Dies,
- Large hole/slot attachment,
- Hydraulic Hold-down clamping on hole punching and plate shearing station,
- Twin Hole Punching Unit,
- Feeding units to the hole punching and plate shearing station,
- Large hole/slot attachment
Technical Specifications:
Punching – Rated Capacity 60 Ton 80 Ton Diameter × Thickness 27 × 16 mm 28 × 20 mm Standard Throat Depth 310 mm 360 mm Cycle/min (20mm stroke) 48 (24 cycle) 48 (24 cycle) Shearing Flat bar – Max. Thickness 250 × 16 mm 330 × 16 mm Shearing Flat bar – Max. Width 400 × 8 mm 480 × 12 mm Angle Cutting 90º 125 × 12 mm 140 × 12 mm Angle Cutting 45º 70 × 8 mm 80 × 8 mm Section Cutting Round max. 45 mm, 25 mm, 12 mm max. 50 mm, 25 mm, 12 mm Section Cutting Square max. 40 × 40 mm, 20 × 20 mm max. 50 × 50 mm, 20 × 20 mm Notching Thickness 10 mm 13 mm Notching Width 58 mm 57 mm Notching Depth 105 mm 100 mm Max. Sheet Bending (optional) 500 × 3 mm 500 × 3 mm Motor Power 4 KW 5.5 KW Net Weight (Std Throat) 1600 Kg 2450 Kg Machine Dimensions (L × W × H) 1700 × 780 × 1680 mm 1920 × 790 × 1800 mm
