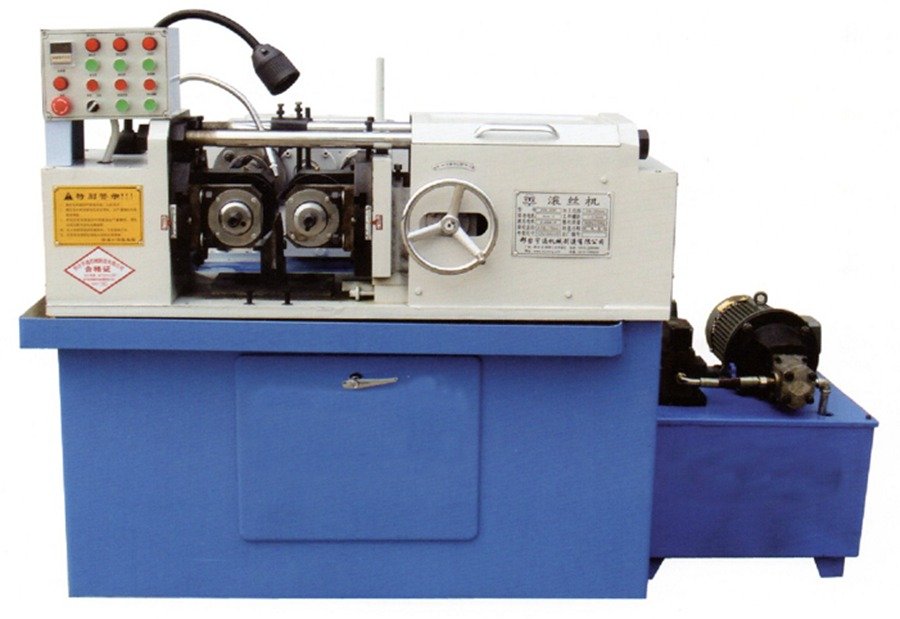

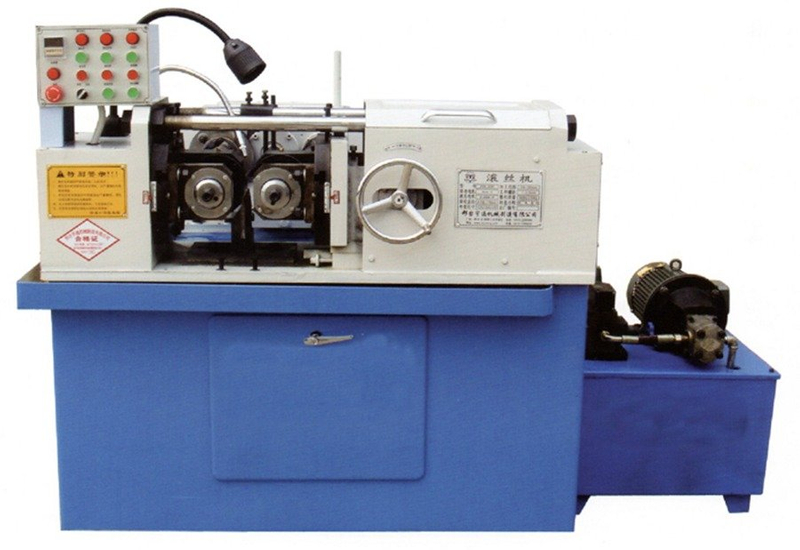

Hydraulic Thread Rolling Machine – Z28-40B Type
Quantity: Maximum roll pressure 80KN Spindle speed 34,43,57,72 r/min Rolling material diameter 5-30mm Active power 4.0kw-4 Track rollers 120-170mm Hydraulic power 2.2kw-4 Diameter rollers 54mm Cooling power 90w Maximum thickness of roller 100mm Dimension 1480*1500*1050mm Axis tilt angle ±3° Total mass 1100kgs(±50kgs) Spindle center distance 120-240mm Open thread lendth plus protection Z28-40B Type Screw Rolling Machine is suitable for diameter 5-30mm, Workpiece to ruled, thread, twill in cooling Process and Assembly screw rolling wheel can be processed Fixed length screws and screw rod (teeth). The machine consists of Welded steel plate, Reasonable structure, Easy operation, Reliable quality. The machine is best for production of non-standard screw, standard parts (Bolt).
Maximum roll pressure 80KN Spindle speed 34,43,57,72 r/min Rolling material diameter 5-30mm Active power 4.0kw-4 Track rollers 120-170mm Hydraulic power 2.2kw-4 Diameter rollers 54mm Cooling power 90w Maximum thickness of roller 100mm Dimension 1480*1500*1050mm Axis tilt angle ±3° Total mass 1100kgs(±50kgs) Spindle center distance 120-240mm Open thread lendth plus protection Z28-40B Type Screw Rolling Machine is suitable for diameter 5-30mm, Workpiece to ruled, thread, twill in cooling Process and Assembly screw rolling wheel can be processed Fixed length screws and screw rod (teeth). The machine consists of Welded steel plate, Reasonable structure, Easy operation, Reliable quality. The machine is best for production of non-standard screw, standard parts (Bolt).
