INDUSTRIAL DRILLING MACHINE Z1520F
You are here: Home » Products » DRILL PRESS » Z SERIES DRILL PRESS » INDUSTRIAL DRILLING MACHINE Z1520F
Share to:

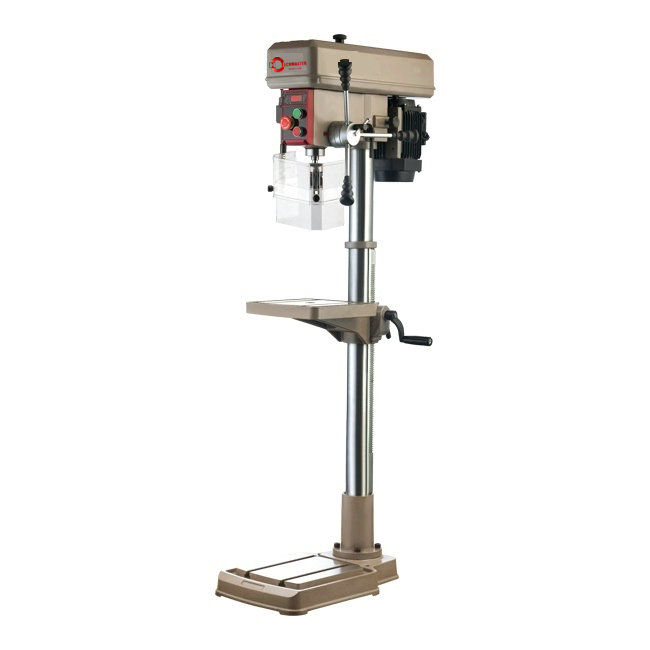

INDUSTRIAL DRILLING MACHINE Z1520F

Quantity:
  • Z1520F
Z1513A

Z1516A

Z1720A

 Z2025A

Z1516B

Z1720B

 Z2025B

Z1520F

Z1725F

Z2032F

钻孔范围: Drill Capacity:13mm16mm20mm25mm16mm20mm25mm16mm25mm32mm
夹头:Chuck Capacity:B16 1~13mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mmB16 1~16mm
立柱直径:Column Diameter :70mm70mm70mm85mm70mm70mm85mm73mm80mm98mm
主轴行程:Spindle Travel:85mm85mm100mm135mm85mm100mm135mm85mm100mm135mm
旋径:Swing:360mm360mm410mm510mm360mm410mm510mm360mm410mm510mm
主轴到工作台最大距离:Max. Distance spindle to table:/335mm320mm280mm335mm320mm280mm900mm850mm860mm
主轴到底座最大距离:Max. Distance spindle to base:540mm540mm530mm540mm540mm530mm540mm1210mm1160mm1200mm
主轴锥度:Spindle Taper:B16B16MT2MT3B16MT2MT3B16MT2MT3
转速范围:Speed Range:200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM200~2400RPM
速度:No. of Speed:5555555555
工作台尺寸:Table Size:/267×230mm283×248mm338×300mm267×230mm283×248mm338×300mm280×280mm320×320mm410×380mm
底座尺寸:Base Table Size:490×310mm490×310mm520×345mm600×385mm490×310mm520×345mm600×385mm520×330mm600×385mm650×440mm
机器总高:Height:980mm980mm1010mm1100mm980mm1010mm1100mm1620mm1630mm1770mm
电机功率:Motor:550W(400V/50Hz/6P)550W(400V/50Hz/6P)750W(400V/50Hz/6P)1100W(400V/50Hz/6P)550W(400V/50Hz/6P)750W(400V/50Hz/6P)1100W(400V/50Hz/6P)550W(400V/50Hz/6P)750W(400V/50Hz/6P)1100W(400V/50Hz/6P)
重量:Weight:72KG78KG95KG144KG85KG106KG160KG90KG128KG237KG
电机功率:Packing Size:1055×610×380mm1055×610×380mm1055×610×380mm1595×710×485mm1055×610×380mm1055×610×380mm1595×710×485mm1525×655×440mm1525×655×440mm1595×710×610mm
20尺装柜量:Quantity for 20ft114PCS114PCS114PCS46PCS114PCS114PCS46PCS58PCS58PCS33PCS
