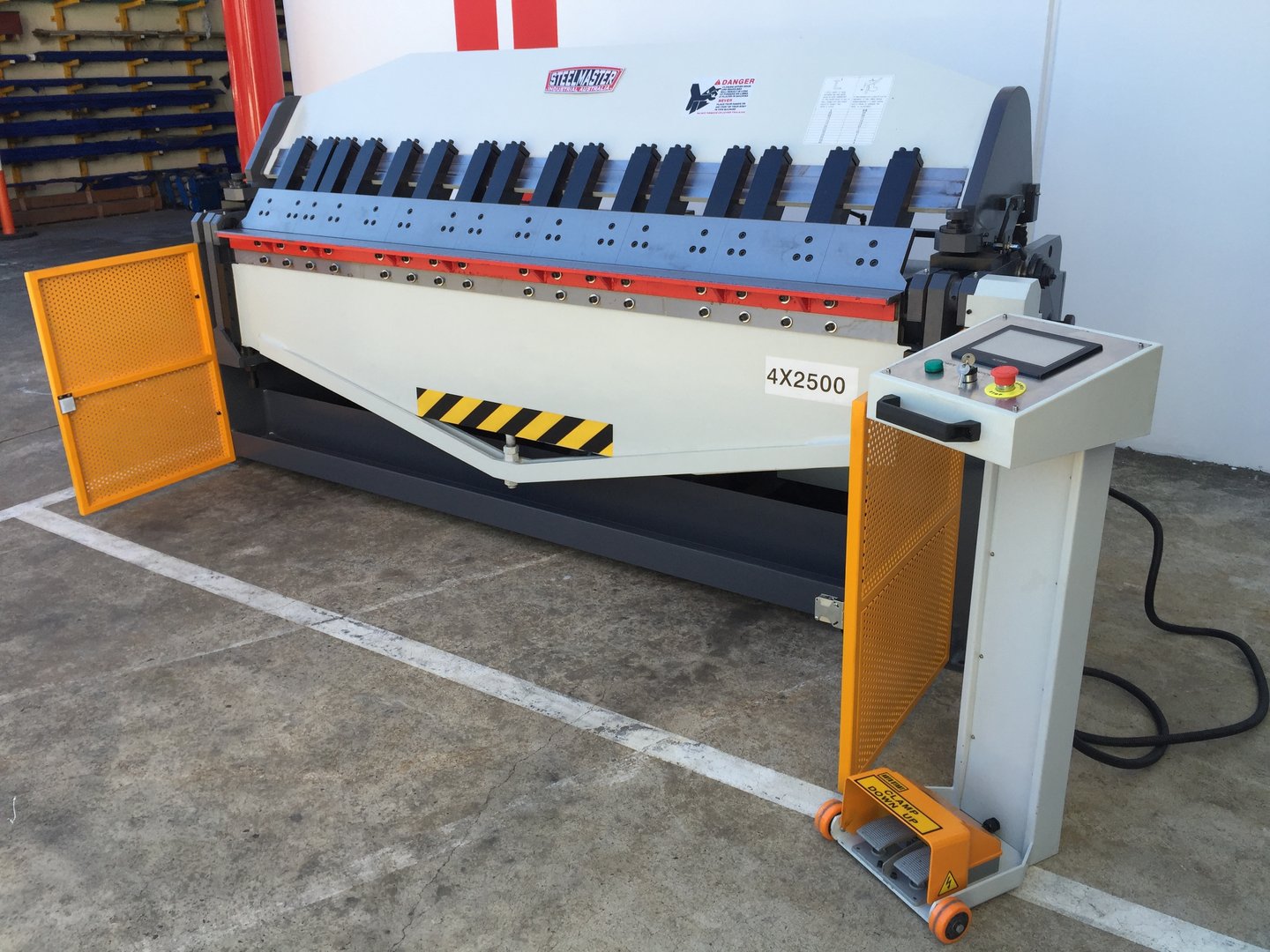

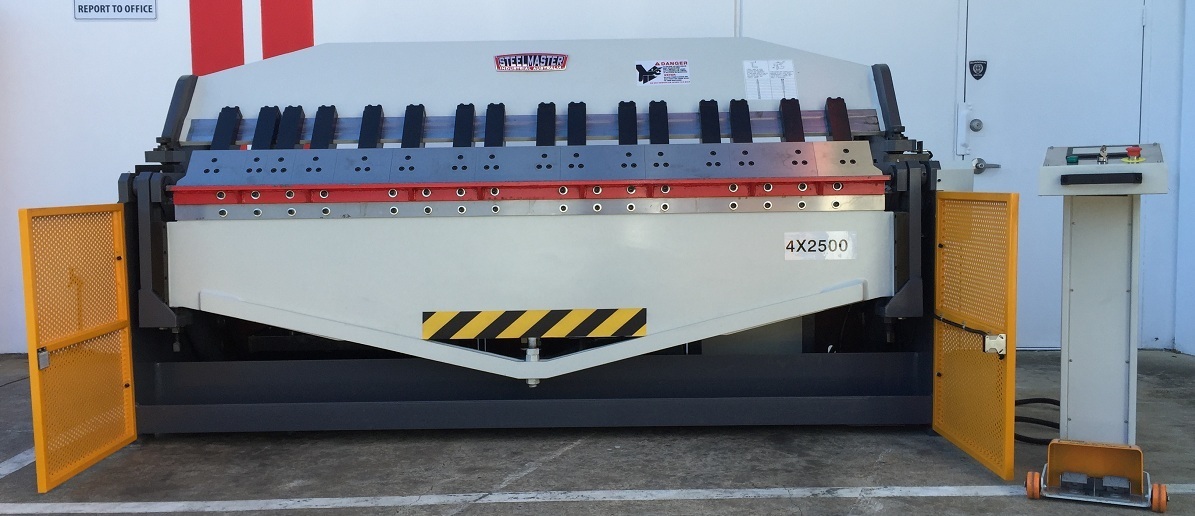

INDUSTRIAL HFM-4-2500B Full Hydraulic Panbrake Folder With PLC Touch Screen Controller
Quantity: -
INDUSTRIAL HFM-4-2500B Full Hydraulic Panbrake Folder With PLC Touch Screen Controller
Description
Work smarter – Not harder – This is what our ASSET Industrial PLC Controlled Panbrake is all about!
Quality and ease of operation, our PLC Digital machine offers a smart 89 station programmable angle setting for quick and accurate folding of all applications.
This can be used both in the single "enter angle and fold" mode, or used in a multi fold programmable folding sequence.
Along with this our machine is fitted with rapid material thickness setting.
Description
❚power operated clamping and bending operation for efficient folding applications
❚huge box folding depth.
❚NC Touchscreen control featuring 99 prgrams, 20 steps per program
❚high structural rigidity from heavy plate box steel construction with continuous welding seams for superior strength, minimal flex
❚quick action adjustment of beam for varying material thickness and settings
❚spherical bearings for smooth ease of operation on the clamping mechanism
❚replaceable bronze bushes at all points of wear with easy access
❚grease nipples located at all points of wear
❚variety of finger widths suitable for all box bending combinations
❚front safety light guards
Technical Data Snap-Shot
❚2500mm x 4.0mm bending capacity

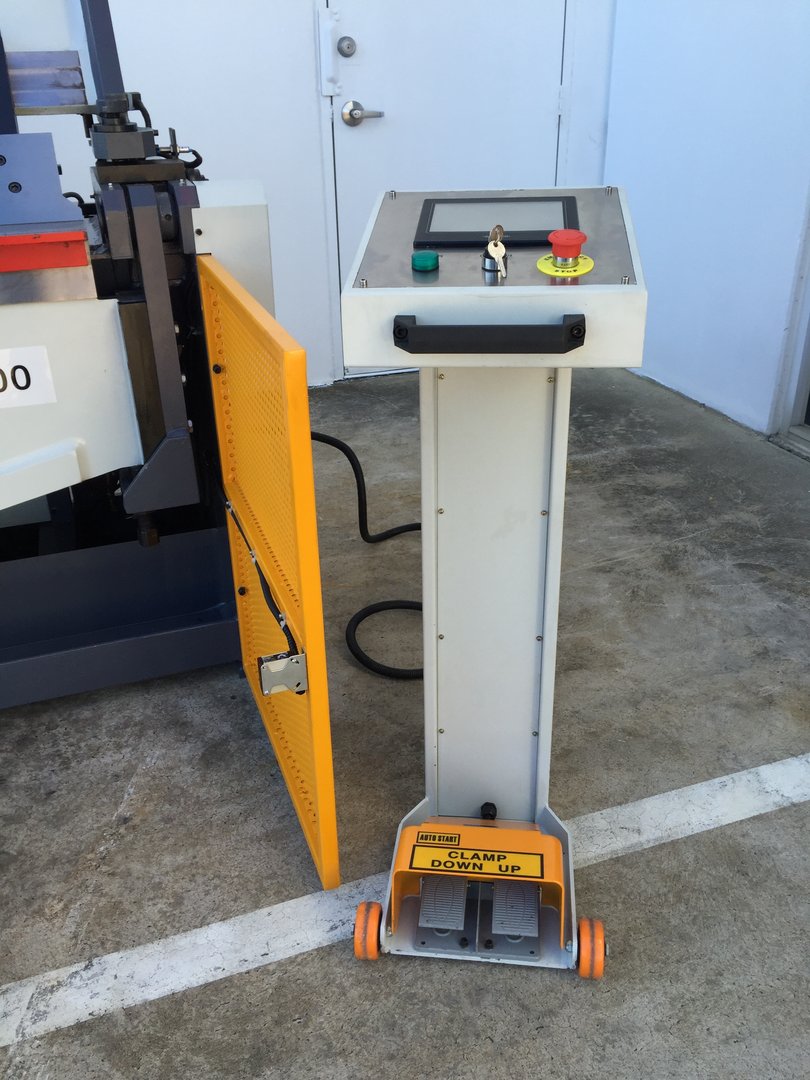

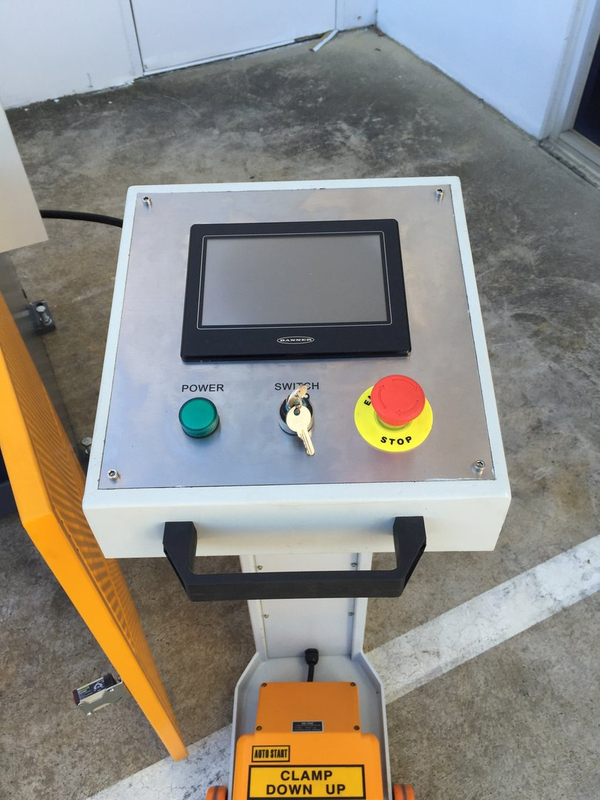

❚PLC touch screen controller
❚quick action material thickness setting
❚o ~ 125 bending range
❚205mm box height
❚shipping dimensions - 3200mm x 1250mm x 1650mm
❚power - 415V 5.5Kw
❚approx weight: 2900kgDescription
