INDUSTRIAL LATHE C6251 X1500
You are here: Home » Products » TURNING » INDUSTRIAL HEAVY DUTY LATHE » INDUSTRIAL LATHE C6251 X1500
Share to:

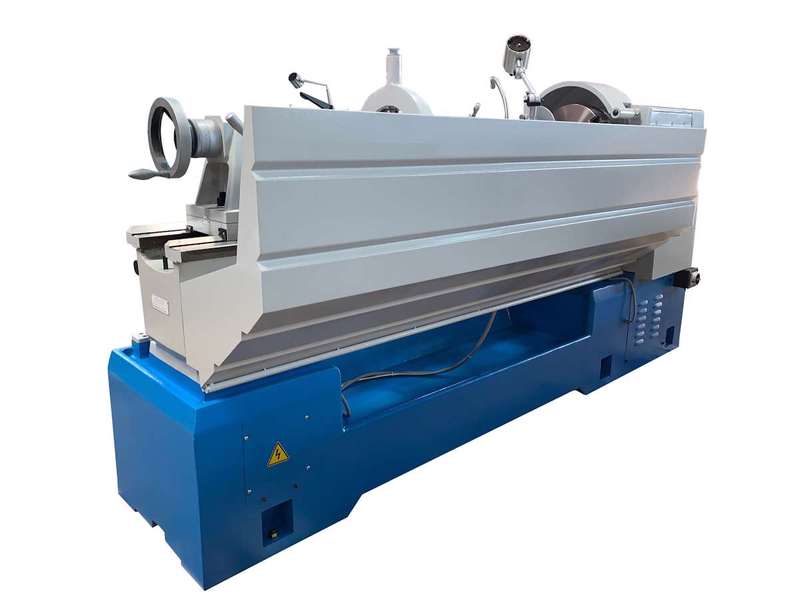

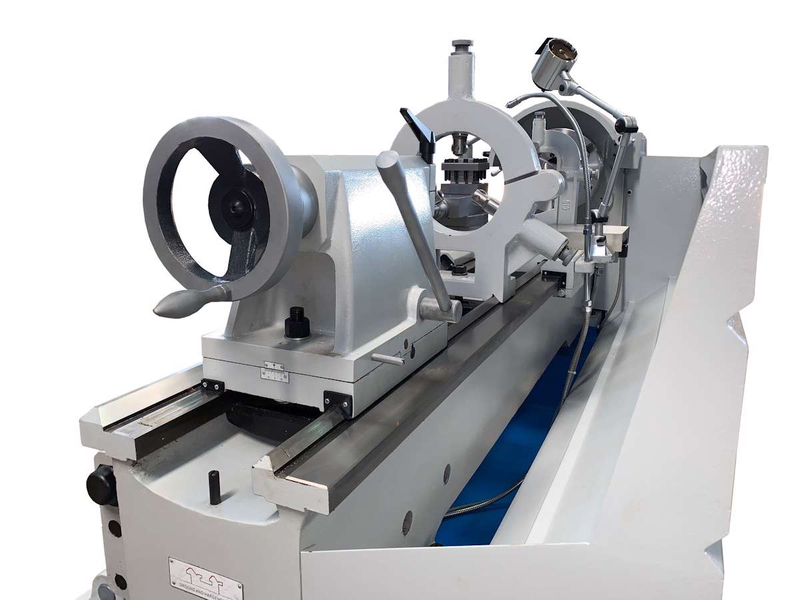

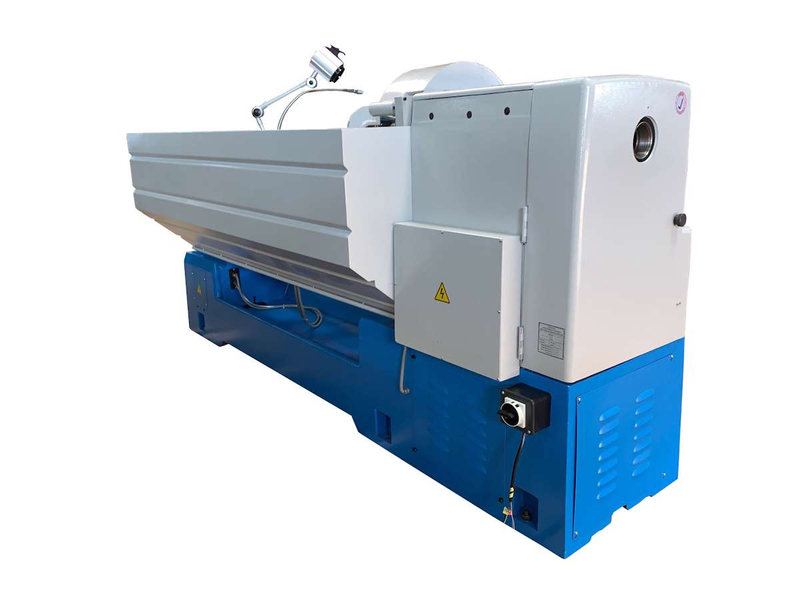

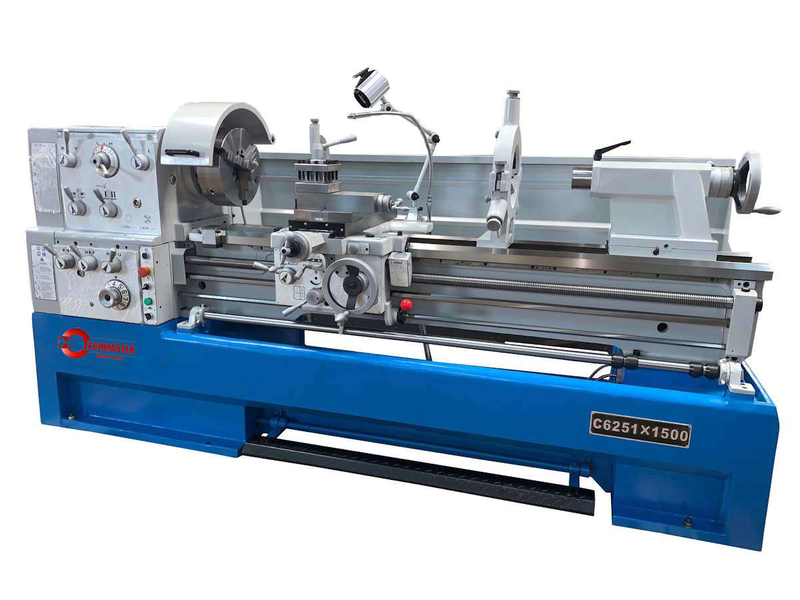

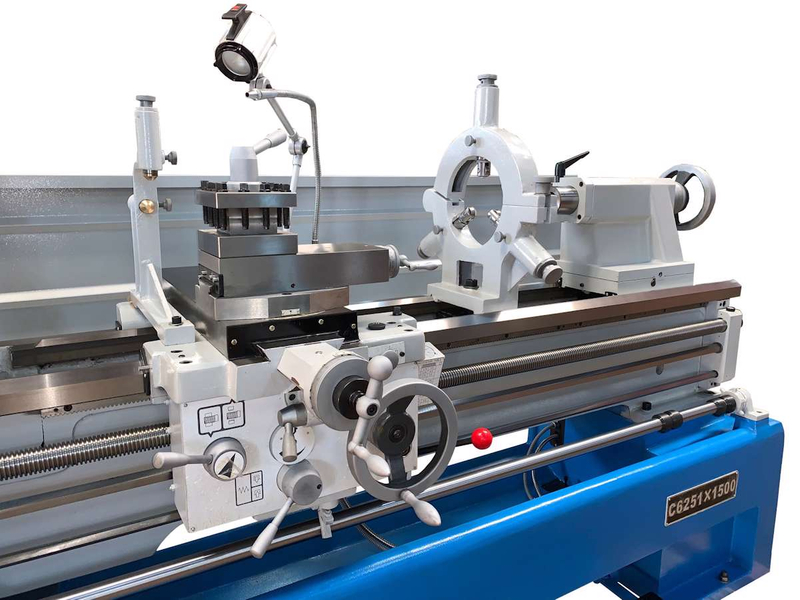

INDUSTRIAL LATHE C6251 X1500

Quantity:
  • HEAVY DUTY LATHE C6241 /C6246 /C6251/C6256 (C6246E/80MM) ---C6256E/105MM)

Dist. Between centres: 1000/1500/2000/3000
Swing Over bed: 510mm
Swing over cross slide: 305mm
Swing in gap: 735
Length of gap: 170mm
Bed Width: 350mm
Spindle Nose: D1-8
Spindle bore: 80mm
Taper of Spindle bore: MT 7
Spindle Speed Range: 12 Changes, 25-2000 r/min
Compound Rest Travel: 130mm
Cross Slide Travel: 316mm
Max. Tool section: 25x25mm
Lead Screw Thread: 6mm / 4TPI
Long Feed Range: 35 kinds, 0.059-1.646 mm/rev
Cross Feed Range: 42 kinds, 0.020-0.573 mm/rev
Thread Pitch Metric: 47 kinds, 0.2-14mm
Thread Pitch Imperial: 60 kinds, 2-112 TPI
Thread Pitch Diameter: 50 kinds, 4-112 TPI
Thread Pitch Module: 34 kinds, 0.1-7MP
Quill Ø: 75mm
Quill Travel: 180mm
Quill Taper: MT 5
Mail Motor: 7.5kW
Dimensions: 2390/2840/3340/4340x1150x1430 mm
Weight: 2460/2550/2840/3270 kg


Machine Accessories:
Faceplate
3-Jaw Chuck
4-Jaw Chuck
Fixed Steady
Travel Steady
