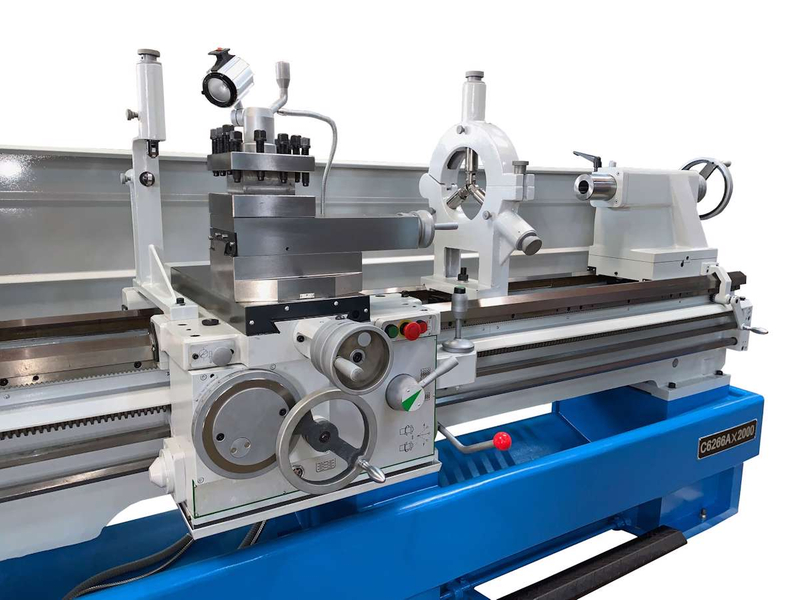

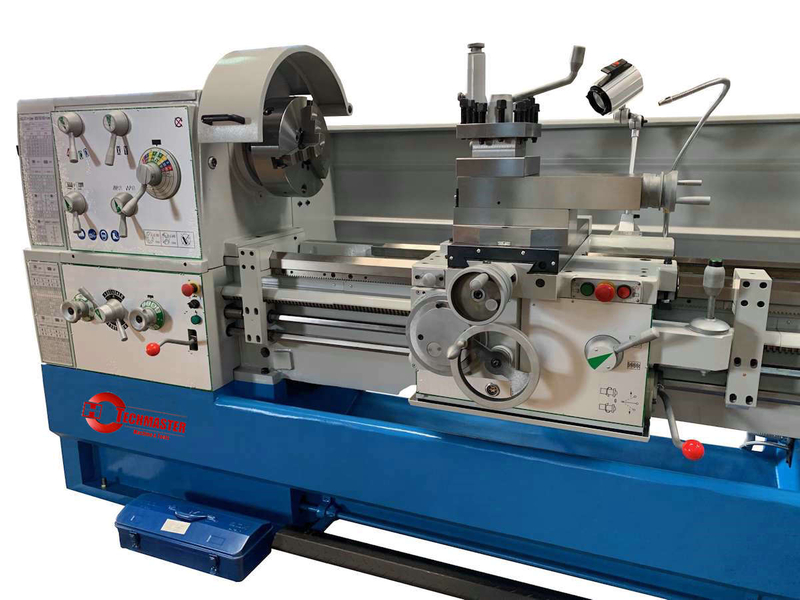

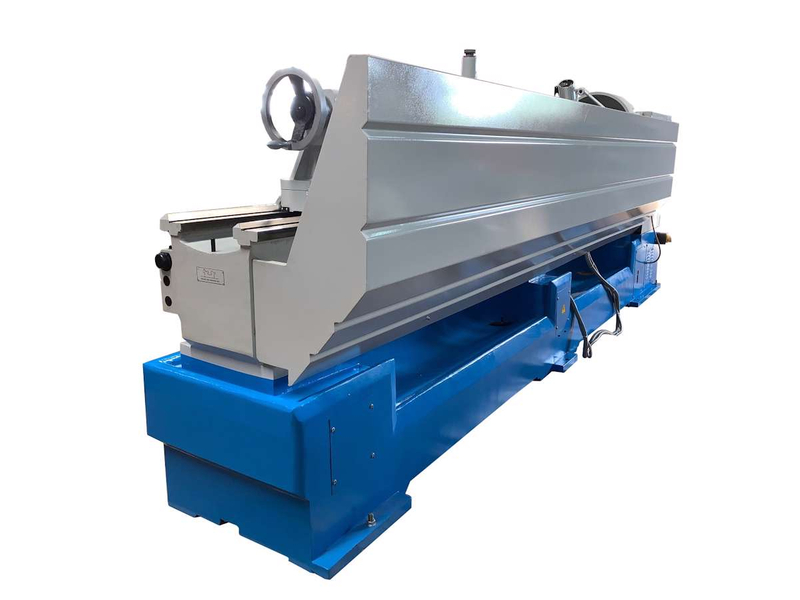

INDUSTRIAL LATHE C6266A X3000

Availability:
Quantity:
  • HEAVY DUTY LATHE C6241 /C6246 /C6251/C6256 (C6246E/80MM) ---C6256E/105MM)

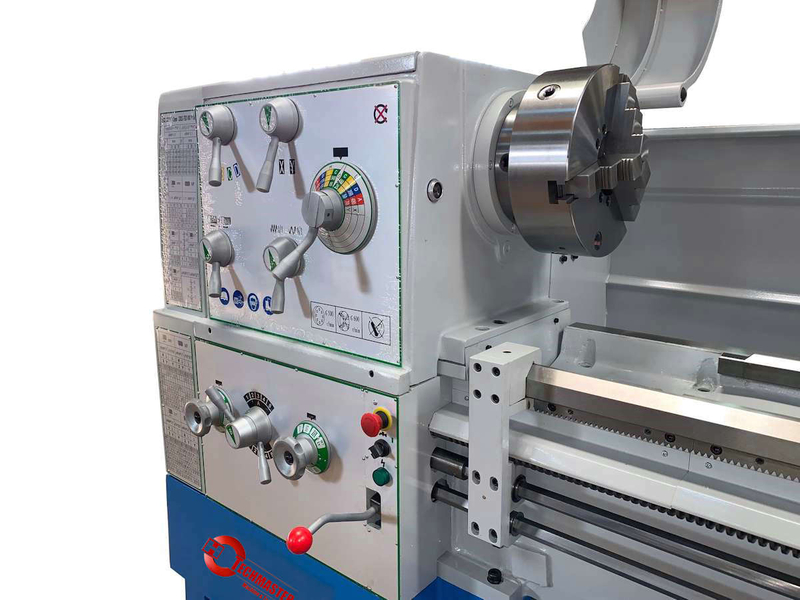

Main Data of Spindle
Spindle bore: Φ 105mm
Spindle head joining style: D1-8
Spindle reducing bush taper: Φ113mm (1:20)/ MT5
Spindle speed grade: 16
Spindle speed range: 25~1600rpm


Cutting Thread, Feed range and kind
Large screw size: Φ40mm x 2T.P.I. or Φ40mm x 12mm
Inch thread range & kind: 7/16~80 T.P.I. (54 kinds)
Metric thread range & kind: 0.45~120mm (54 kinds)
Diameter pitch range & kind: 7/8~160DP (42 kinds)
Module range & kind: 0.25 ~ 60MP (46 kinds)
Metric spindle longitudinal feed per revolution: 0.044~1.48mm/rev (25 kinds)
Inch spindle longitudinal feed per revolution: 0.0016498~0.05497” /rev (25 kinds)
Metric spindle cross feed per revolution: 0.022~0.74mm/rev (25 kinds)
Inch spindle cross feed per revolution: 0.0008326~0.02774” /rev (25 kinds)

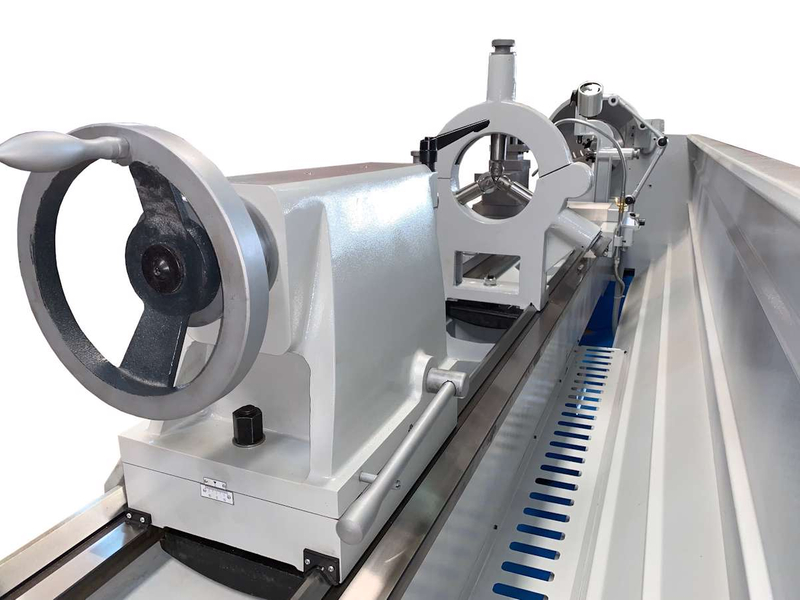

Tailstock data of lathe
Travel of tailstock sleeve: 235mm
Diameter of tailstock sleeve: Φ 90mm
Inside taper of tailstock sleeve: MT5


Motor size of lathe
Power of main motor: 7.5kW (10PH)
Power of cooling pump: 0.09kW (1/8HP)


Included:
3 Jaw chuck Ø 315mm
4 Jaw chuck Ø 400mm
Faceplate Ø 445mm
8x Foot mounts
Travelling steady
Fixed steady
