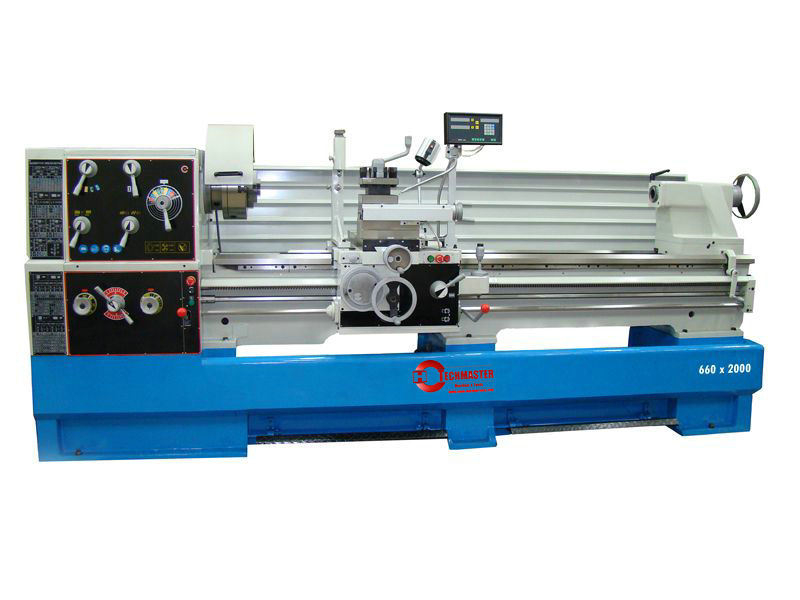

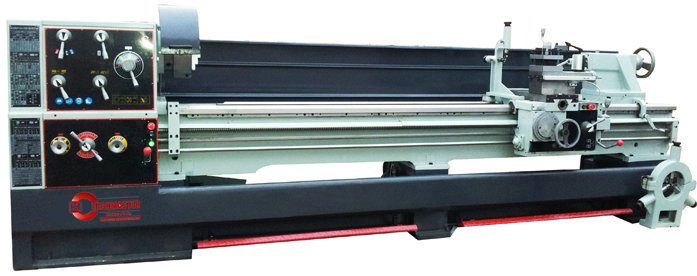

Industrial Horizontal Metal Lathe D660X1500/D660X2000/D660X3000
Quantity: -
D660X1500/ D660X2000/ D660X3000
Feature:
• Widely useful heavy duty industrial lathe
• Grey cast-iron machine bed, induction hardened and grinding
• One piece of cast iron base allows heavy cuts,
higher rigidity and fewer vibrations
• 105mm spindle capacity for large parts
• High precision and quiet operation
• Manual central lubrication for slides
• Multi-disk clutch for soft starts when working with heavy parts
• Automatic lubrication of headstock and gears
• Leadscrew protection as standard
• Overload protection for feed shaft
• Rapid feed device
Standard accessories:
3 jaw chuck, 4 jaw chuck, faceplate, follow rest,
steady rest, work lamp, coolant system, foot brake
Optional accessoires:
quick change tool post, 3 axis of digital readout,
magnetic spindle brake, taper attachment
Model No. D660×1500 D660×2000 D660×3000 Distance between centers 1500mm 2000mm 3000mm Swing over slide 660mm 660mm 660mm Swing over cross slide 440mm 440mm 440mm Swing in gap diameter 900mm 900mm 900mm Bed width 400mm 400mm 400mm Spindle nose D1-8 D1-8 D1-8 Spindle bore 105mm 105mm 105mm Range of spindle speed 25-1600r/min 25-1600r/min 25-1600r/min spindle speed number 16 16 16 Cross slide travel 370mm 370mm 370mm Top slide travel 230mm 230mm 230mm Imperial thread range 1/16-80T.P.I/54 1/16-80T.P.I/54 1/16-80T.P.I/54 Metric thread range 0.45-120mm/54 0.45-120mm/54 0.45-120mm/54 Diametrical pitches range 7/8-160DP/42 7/8-160DP/42 7/8-160DP/42 Module pitches range 0.25-60MP/46 0.25-60MP/46 0.25-60MP/46 Longitudinal feeds range 0.044-1.48mm/rev 0.044-1.48mm/rev 0.044-1.48mm/rev Cross feeds range 0.022-0.74mm/rev 0.022-0.74mm/rev 0.022-0.74mm/rev Travel of tailstock quill 235mm 235mm 235mm Quill diameter 90mm 90mm 90mm Quill taper MT5 MT5 MT5 Coolant pump 90W 90W 90W Motor 7.5KW 7.5KW 7.5KW Weight 3060kg 3345kg 3345kg Packing size 3240x1140x1840mm 3740x1140x1840mm 4740x1140x1840mm
