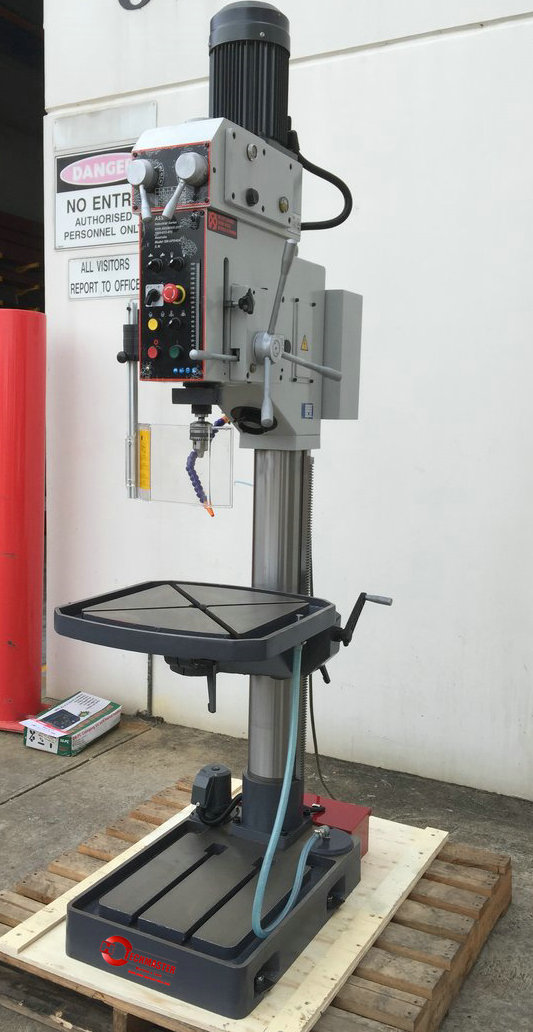

Industrial Series Geared Head Drill, 40mm Capacity, Power Feed & Coolant.
Quantity: -
GPD40A
Description
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expands the capacity of this machine. You can also change speeds quickly and easily.
Heavy duty thick walled column, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???
Features:
❚40mm drilling capacity, M24 tapping capacity
❚ rigid cast iron construction
❚ tapping selector fitted when used in conjunction with tapping head (GPD40A & 50A only)
❚ power raise and lower of table (GPD50A only)
❚ large throat up to 380 mm
❚ halogen work light as standard
❚ tables rotates 180 and swivels 45°
❚ 4 step automatic feed
❚ adjustable depth stop
❚ thick-walled column
❚ extremely easy tool change
❚ coolant system
❚ CE compliant
Technical Data Snap-Shot
❚560mm x 660mm tee slotted swivel work table
❚730mm x 500mm heavy duty tee work base
❚180mm spindle travel
❚4 morse taper spindle
❚speeds range - 50 ~ 1450
❚motor capacity - 1.5Kw x 415Volt
❚machine dimensions - 1150mm x 700mm x 2280mm
❚crate shipping dimensions - 2300mm x 1100mm x 630mm High
❚approx weight: 610kgDescription
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expands the capacity of this machine. You can also change speeds quickly and easily.
Heavy duty thick walled column, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???
Features:
❚40mm drilling capacity, M24 tapping capacity
❚ rigid cast iron construction
❚ tapping selector fitted when used in conjunction with tapping head (GPD40A & 50A only)
❚ power raise and lower of table (GPD50A only)
❚ large throat up to 380 mm
❚ halogen work light as standard
❚ tables rotates 180 and swivels 45°
❚ 4 step automatic feed
❚ adjustable depth stop
❚ thick-walled column
❚ extremely easy tool change
❚ coolant system
❚ CE compliant
Technical Data Snap-Shot
❚560mm x 660mm tee slotted swivel work table
❚730mm x 500mm heavy duty tee work base
❚180mm spindle travel
❚4 morse taper spindle
❚speeds range - 50 ~ 1450
❚motor capacity - 1.5Kw x 415Volt
❚machine dimensions - 1150mm x 700mm x 2280mm
❚crate shipping dimensions - 2300mm x 1100mm x 630mm High
❚approx weight: 610kg
