t Industrial Series Panbrakes feature a range including Hydraulic NC Programmable to Semi Hydraulic and Manual models.
Description

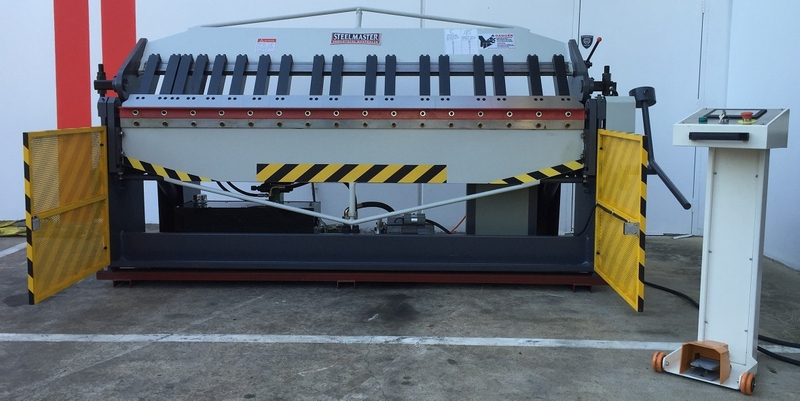

At last! A 240Volt 2500mm x 2mm Full Hydraulic Panbrake Folder without an expensive Phase Changer!
STEELMASTER Hydraulic Panbrake folder. Produced Exclusively for Asset by Australian Engineers.
Structural & Operating Features
❚hydraulically operated bending with Manual clamping beam for efficient heavy duty operation
❚high structural rigidity from heavy plate steel box construction with continuous welded seams
❚bending beam powered by dual hydraulic cylinders
❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
❚precise electric / hydraulic controls with manual inching of bending beam
❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
❚comprehensive equipment protection from electric and hydraulic overload systems
Standard Angle Setting Option
❚offering quick action digital angle setting
Technical Data Snap-Shot
❚2500mm x 2mm bending capacity
❚0 ~ 130 bending range
❚Power 2.2Kw / 240Volt
❚shipping dimensions - 2800mm x 900mm x 1600mm
❚approx weight: 1750kg
