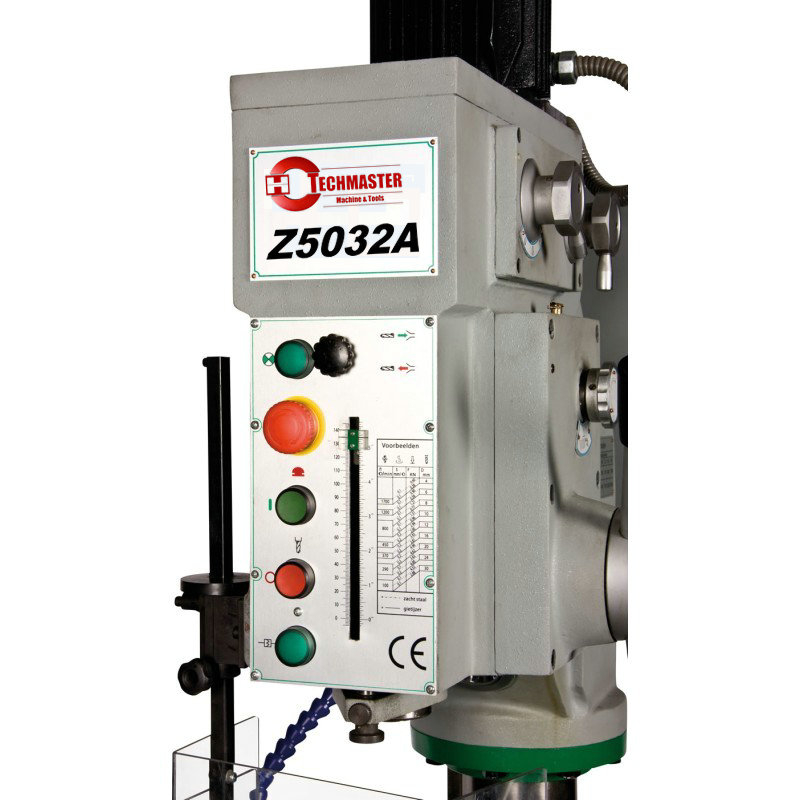

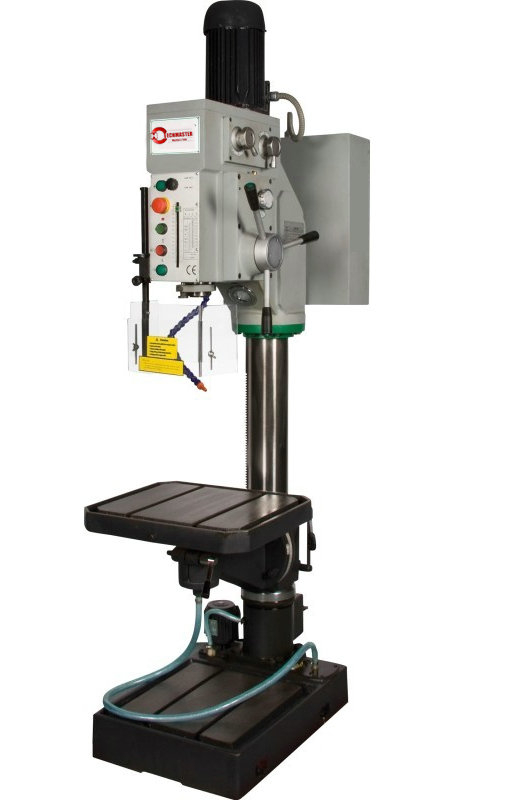

This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch.
cooling system
electromagnetic feed
spindle turns clockwise and counter clockwise
rotating and tilting table

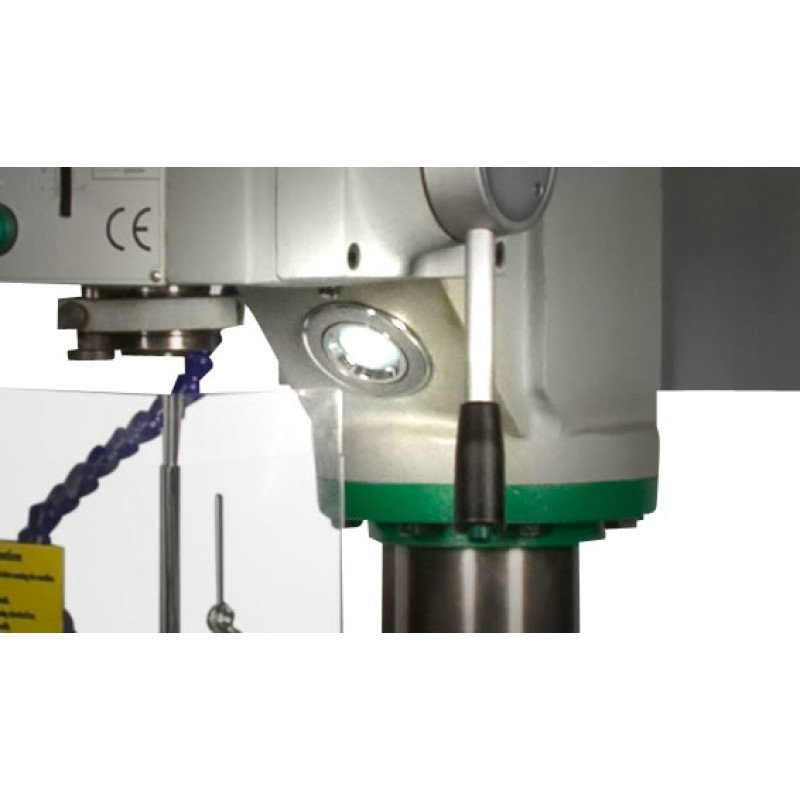

machine worklight
table clamped with eccentric clamp
gear wheel driven
Motor power | 1.0 - 1.5 kW |
Drilling capacity | 30 mm |
Tapping capacity | M20 |
Drilling depth | 135 mm |
Spindle taper | MT3 |
Number of speeds | 12 |
Spindle speed range | 72 - 2600 rpm |
Feed range | 0,1 - 0,2 - 0,3 mm/r |
Column diameter | 120 mm |
Distance spindle-column | 320 mm |
Table size | 370 x 360 lxw |
Base dimensions l x w | 500 x 450 mm |
Height | 2120 mm |
Packaging dimensions l x w x h | 950 x 580 x 2250 mm |
Voltage | 400 V |
Net weight | 440 kg |
