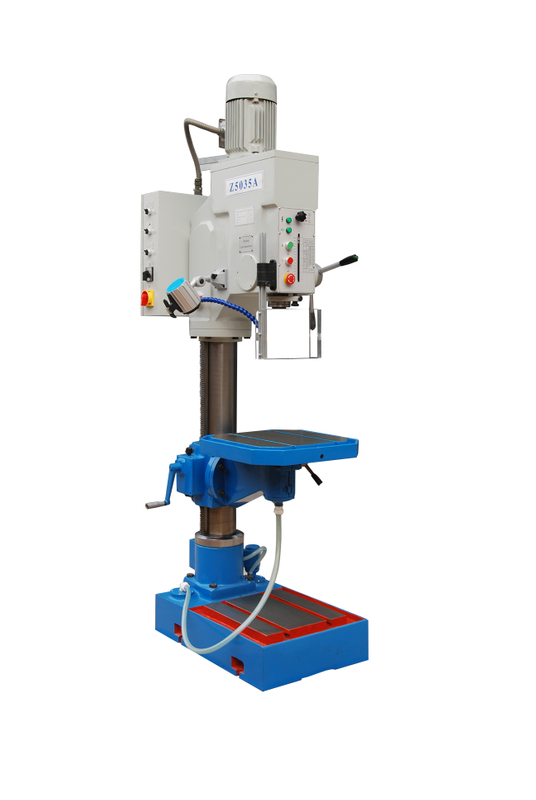

This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch. The head is vertically adjustable over a rack. Ideally suited for production lines.

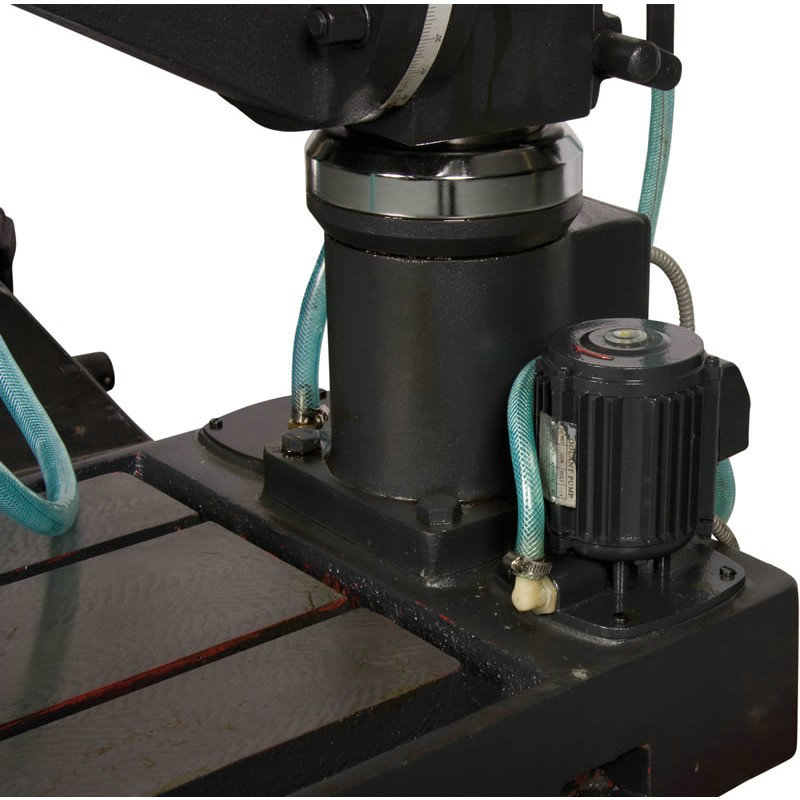

cooling system
electromagnetic feed
2 speed motor
spindle turns clockwise and counter clockwise
rotating and tilting table
machine worklight
table clamped with eccentric clamp
head vertically adjustable
gear wheel driven
| Motor power | 1 / 1,5 kW |
|---|---|
| Drilling capacity | 35 mm |
| Tapping capacity | M20 |
| Drilling depth | 160 mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Spindle speed range | 72 - 2600 rpm |
| Feed range | 0,1 - 0,2 - 0,3 mm/r |
| Column diameter | 140 mm |
| Distance spindle-column | 350 mm |
| Table size | 370 x 360 lxw |
| Base dimensions l x w | 500 x 450 mm |
| Height | 2120 mm |
| Packaging dimensions l x w x h | 1030 x 610 x 2250 mm |
| Voltage | 400 V |
| Net weight | 500 kg |
