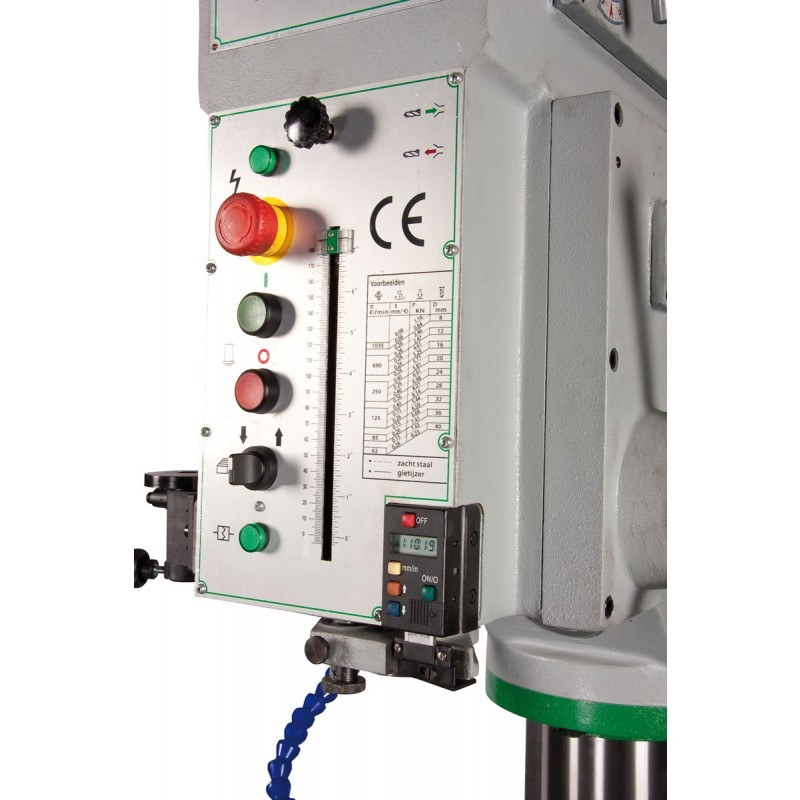

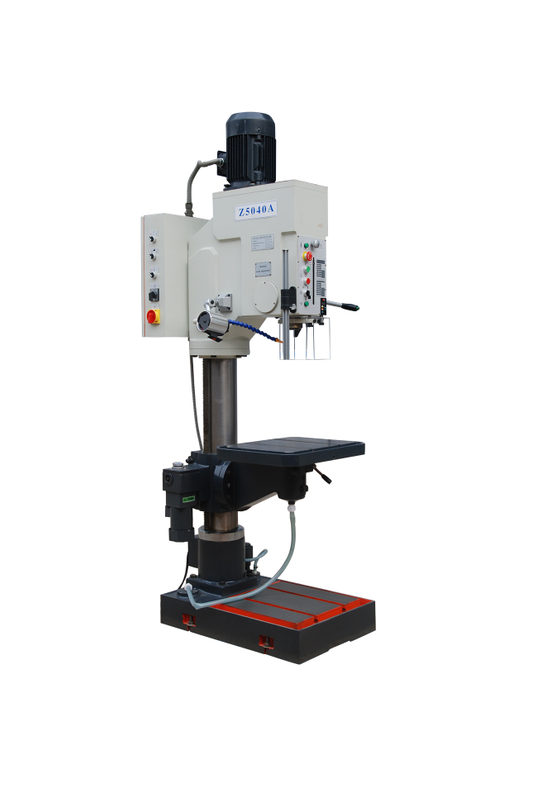

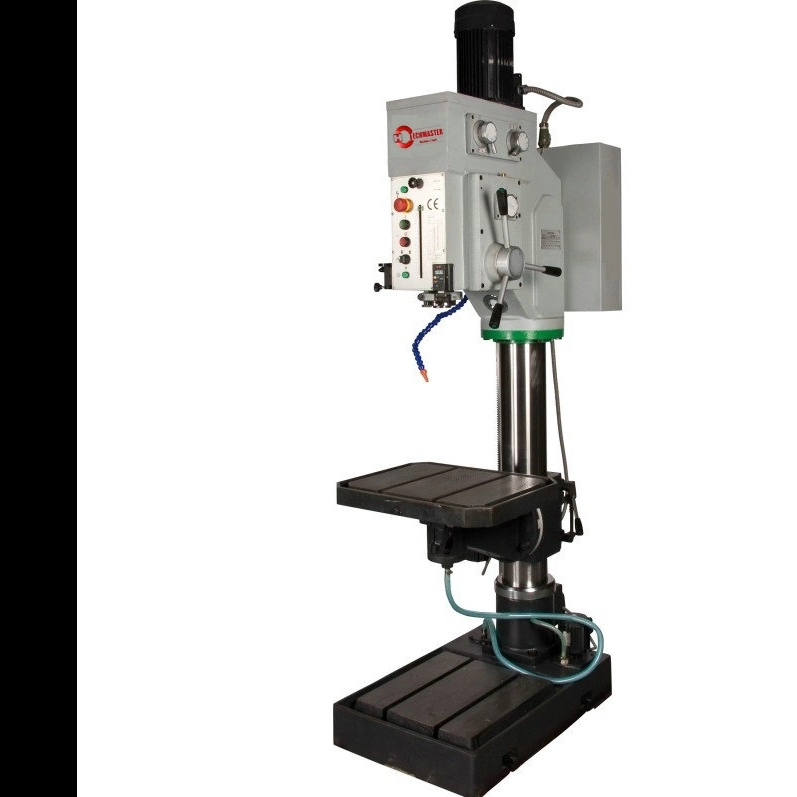

The gear head column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop, and the machine is fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise, with auto feed. The drill chuck cover is equipped with an auto stop switch.
cooling system
electric table height adjustment
electromagnetic feed
2 speed motor
spindle turns clockwise and counter clockwise
rotating and tilting table
machine worklight
table clamped with eccentric clamp
gear wheel driven
| Motor power | 2,2 - 2,8 kW |
|---|---|
| Drilling capacity | 40 mm |
| Tapping capacity | M27 |
| Drilling depth | 180 mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Spindle speed range | 42 - 2050 rpm |
| Feed range | 0,07 - 0,15 - 0,26 - 0,40 mm/r |
| T-slots | 2/14mm |
| Column diameter | 160 mm |
| Distance spindle-column | 360 mm |
| Max. distance spindle table | 600 mm |
| Table size | 450 x 440 lxw |
| Base dimensions l x w | 510 x 380 mm |
| Height | 2330 mm |
| Packaging dimensions l x w x h | 1150 x 700 x 2150 mm |
| Voltage | 400 V |
| Net weight | 680 kg |
