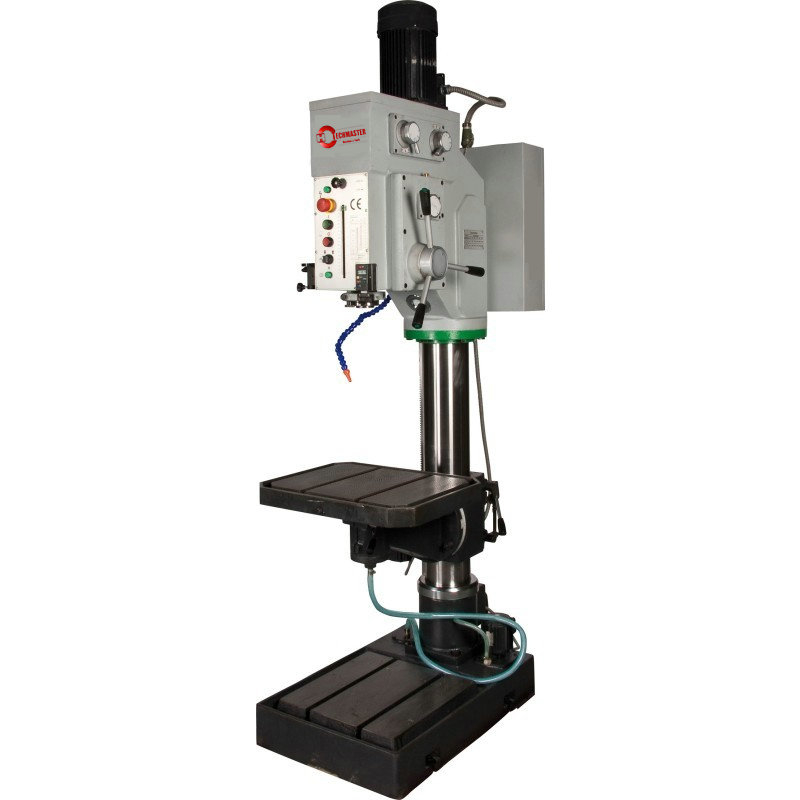

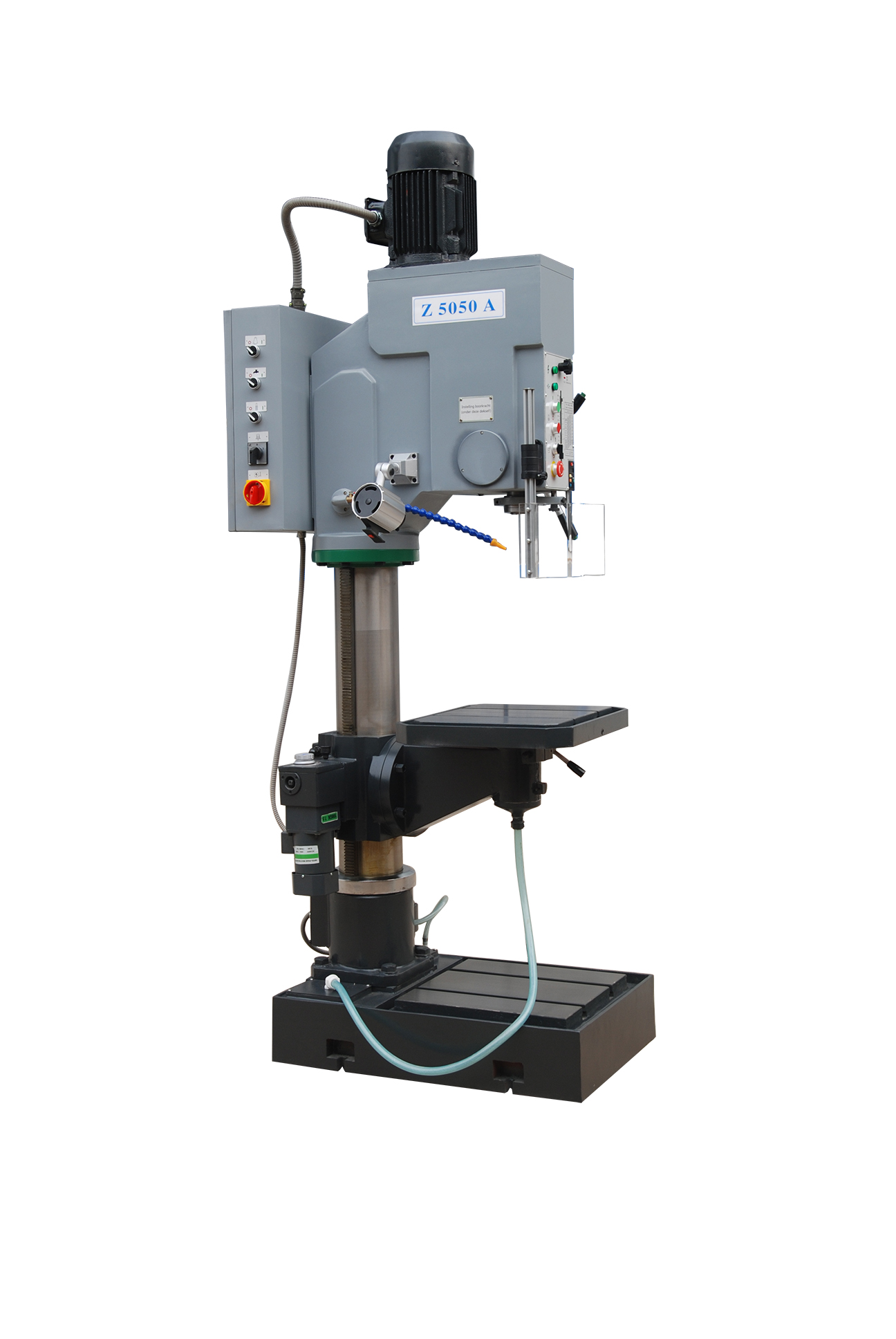

This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch.
cooling system
electric table height adjustment
electromagnetic feed
2 speed motor
spindle turns clockwise and counter clockwise
rotating and tilting table
machine worklight
table clamped with eccentric clamp
gear wheel driven
| Motor power | 2,2 - 2,8 kW |
|---|---|
| Drilling capacity | 50 mm |
| Tapping capacity | M30 |
| Drilling depth | 240 mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Spindle speed range | 42 - 2050 rpm |
| Feed range | 0,1 - 0,2 - 0,3 - 0,4 mm/r |
| T-slots | 2/14mm |
| Column diameter | 160 mm |
| Distance spindle-column | 360 mm |
| Max. distance spindle table | 600 mm |
| Table size | 450 x 440 lxw |
| Base dimensions l x w | 510 x 380 mm |
| Height | 2450 mm |
| Packaging dimensions l x w x h | 1100 x 670 x 2100 mm |
| Voltage | 400 V |
| Net weight | 690 kg |
