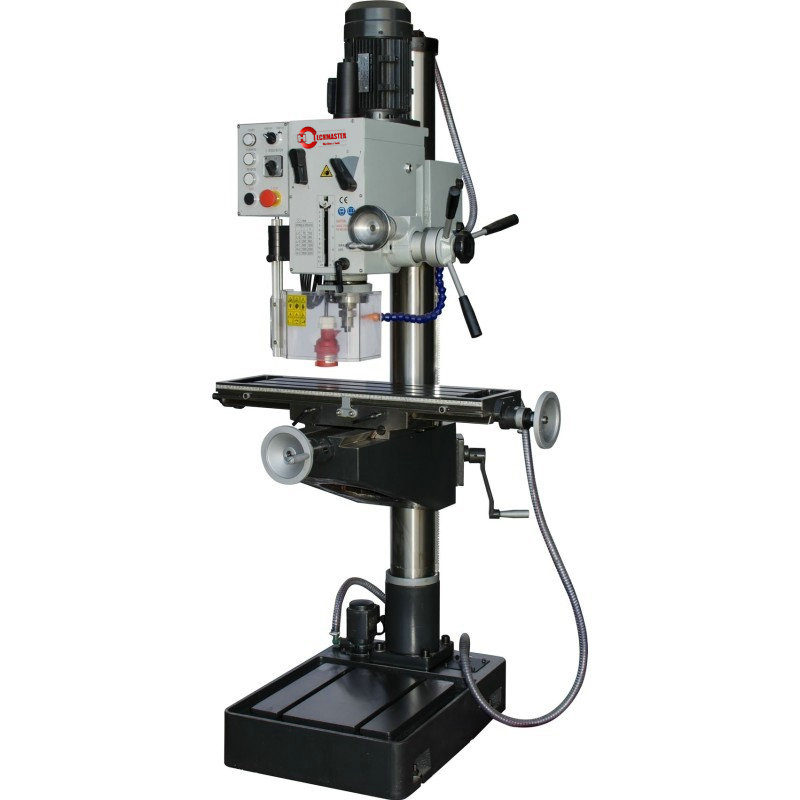

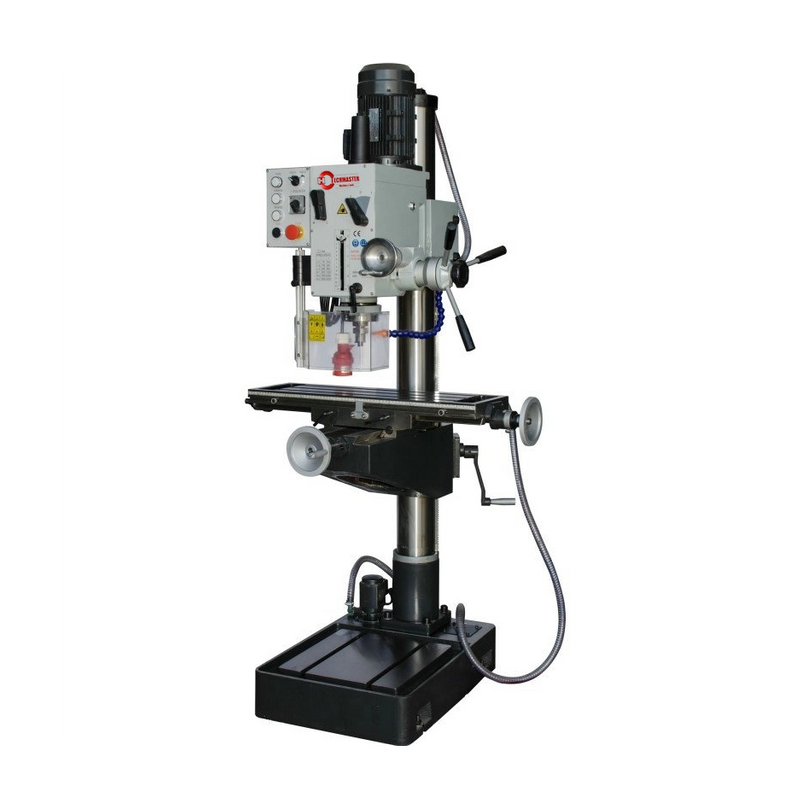

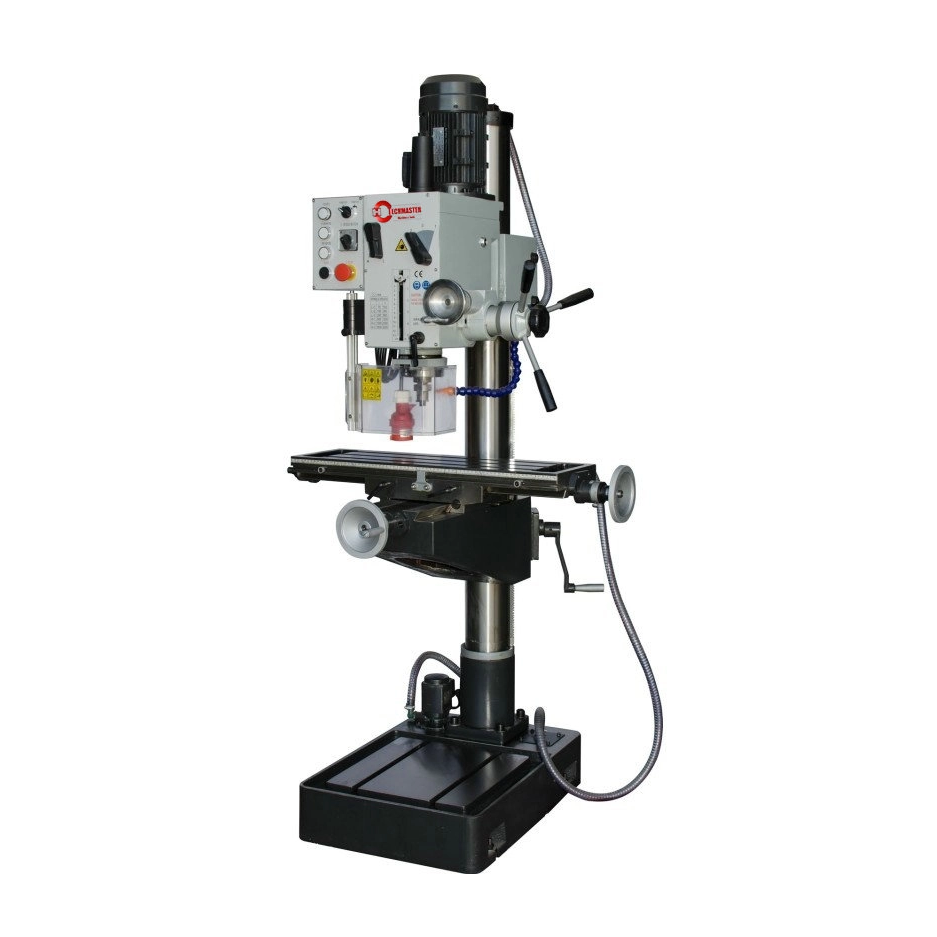

Industrial drilling machine ZX40A

  • ZX40A

Universal miling/drilling machine. Supplied with cross table. Quality machine for very smooth operation. Vertical adjustment cross table possible. The gear wheels run through an oil bath; the guides can be set using keys. Z-axis can be set over dovetail guide. With precision feed. Equipped with a switch controlled protection cover, in accordance with the latest EC guidelines.
Perfect for workshops and DIY.

  • finefeed

  • head tiltable

  • spindle with 4 heavy duty tapered roller bearings

  • depth setting on spindle feed

  • solid column to avoid vibration

  • gear wheels in oil bath

  • left and right turning

  • precision setting for milling depth

  • with drawbar (M12)

Drilling capacity32 mm
Spindle taperNT 3
Capacity end milling30 mm
Capacity face milling St. 37100 mm
Drilling depth130 mm
Distance spindle column278 mm
Max. distance spindle table600 mm
Table size750X200 lxw
T-slots number/dimensions3/14 mm
Spindle speeds40-3200 rpm
Speed range vertical spindle12R x 12L
Milling head tilting45 °
Spindle travel130 mm
Cross/longitudinal travel510x240 mm
Distance spindle-table650 mm
Motor1,1 kW
Packaging dimensions l x w x h950x780x195 mm
Voltage400 V
Net weight380 kg
