| Quantity: | |
|---|---|

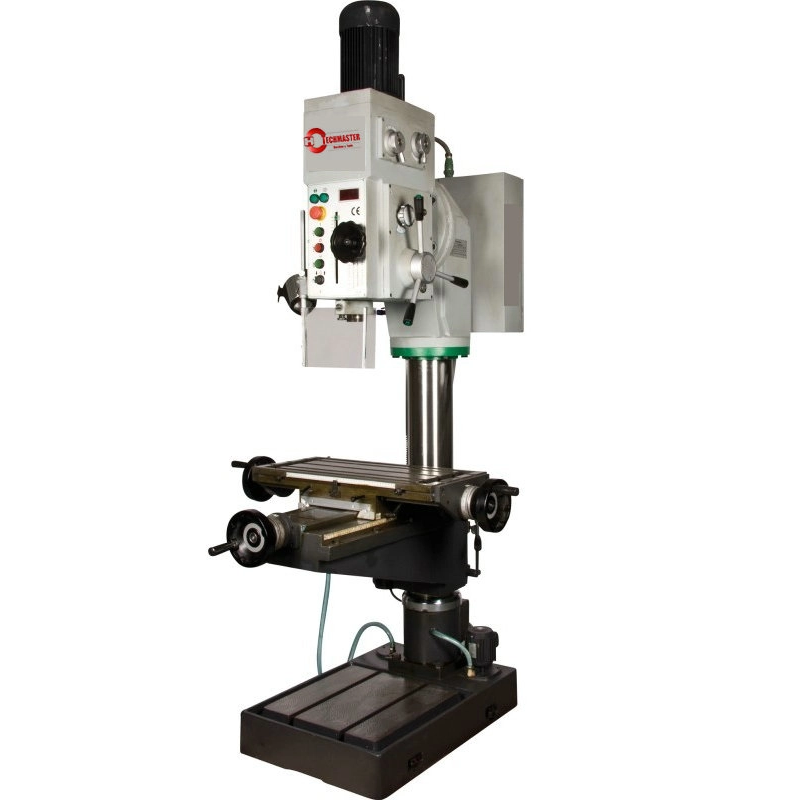

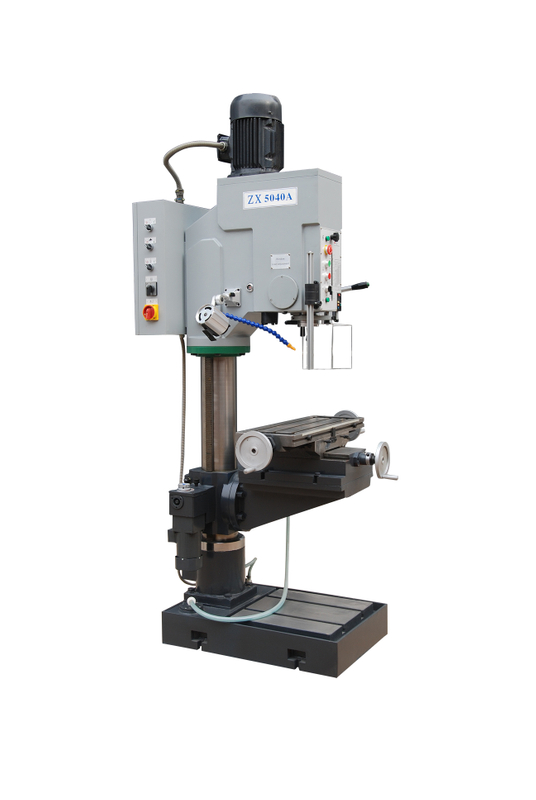

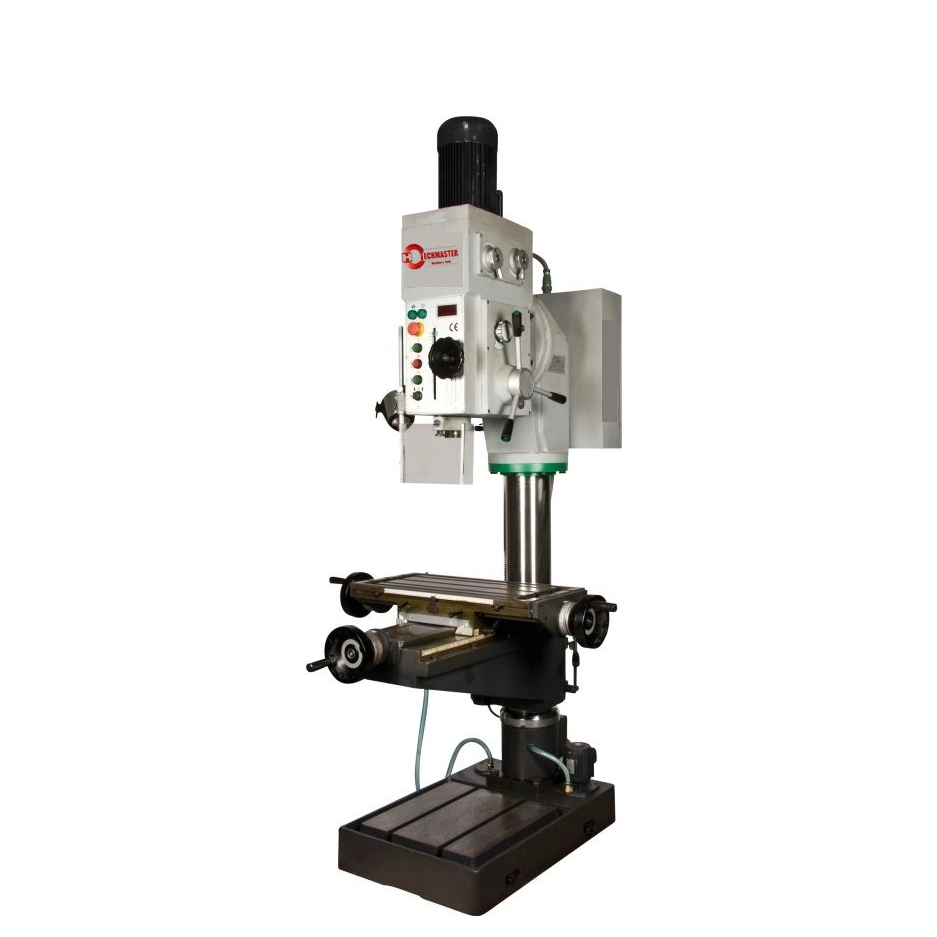

Industrial drilling machine with milling option and cross table. The machine is equipped with electromagnetic feed and precision feed. Milling tool optional.

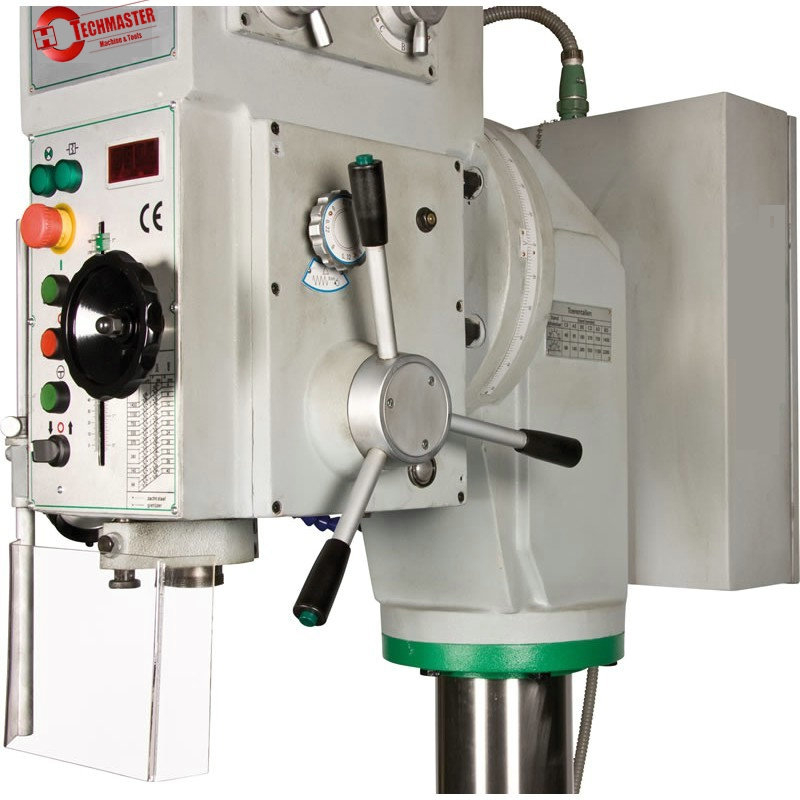

head tiltable
with precision feed

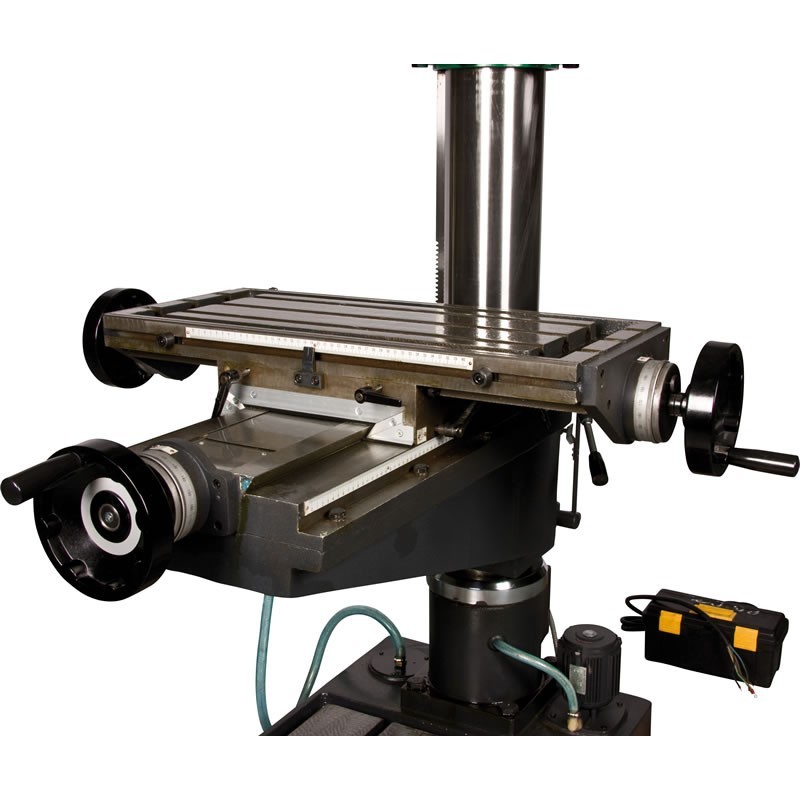

heavy duty cross table
gear wheel drive
| Drilling capacity | 40 mm |
|---|---|
| Spindle taper | MT4 met moer |
| Drilling depth | 180 mm |
| Motor power | 2,8 kW |
| Tapping capacity | M27 |
| Number of speeds | 12 |
| Spindle speed range | 42 - 2050 rpm |
| Feed range | 0,07 - 0,15 - 0,26 - 0,40 mm/r |
| Number of feeds | 4 |
| T-slots | 2/14 |
| Column diameter | 160 mm |
| Max. throat capacity | 360 mm |
| Max. distance spindle table | 490 mm |
| Table size | 715 x 320 lxw |
| Base dimensions l x w | 510 x 380 mm |
| Height | 2330 mm |
| Packaging dimensions l x w x h | 1150 x 700 x 2150 mm |
| Voltage | 400 V |
| Net weight | 750 kg |
