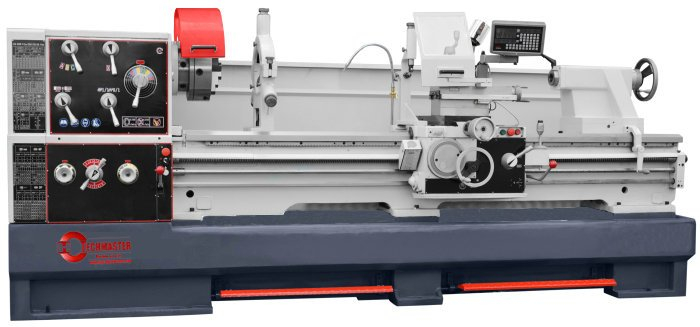

Industrial lathe CQ6266 660x1500/2000/3000
Quantity: -
Industrial lathe CQ6266 660x1500/2000/3000
Machine characteristics
The modern metal-turning lathe 660 x 1500/2000 has been equipped with rapid feeds, a multi-plate clutch and a digital readout thanks to which is an ideal solution for professional and industrial work.
- Inductively hardened and precisely ground bed
- Massive, cast iron machine structure

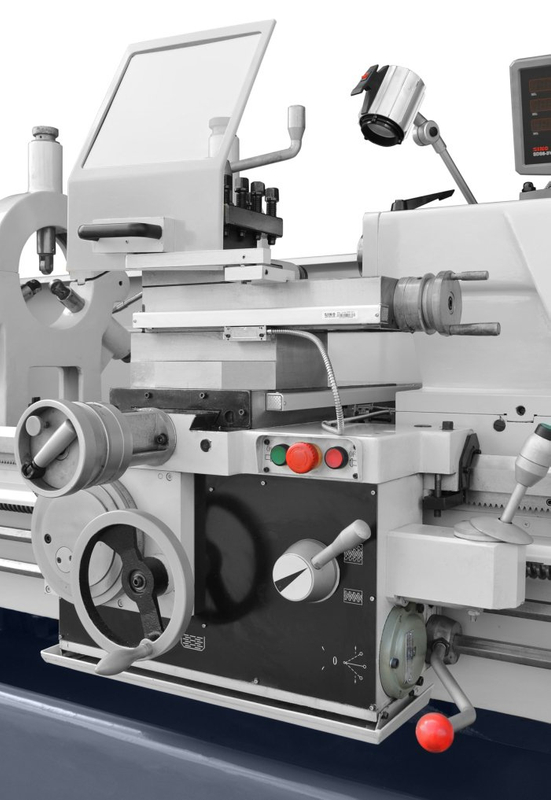

- Lathe equipped with quick longitudinal and cross run
- Main arbor with ball bearings
- Spindle bore 105 mm
- Digital readouts for 3 axes
Technical data
SWING OVER BED
660 mm with LCD readout
SWING OVER CROSS SLIDE
460 mm
SWING OVER GAP
900 mm
CENTRE DISTANCE
1500/2000/3000 mm
BED
inductively hardened
BED WIDTH
400 mm
LATHE CHUCK DIAMETER
315 mm
SPINDLE BORE
105 mm
SPINDLE TAPER
D1-8 DIN 55029
SPINDLE SPEEDS RANGE
25 - 1700 rpm
MAXIMAL TOOL DIMENSIONS
25 x 25 mm
FEED LONGITUDINAL
0.044 – 1.480 mm/rotation
FEED CROSS
0.022 – 0.740 mm/rotation
METRIC THREAD
0.35 - 120 mm
INCH THREAD
7/16 - 80 Gg/1"
TAILSTOCK SPINDLE TRAVEL
235 mm
TAILSTOCK SPINDLE TAPER
MT 5
DIGITAL READOUT
for 3 axes
MAIN MOTOR POWER
7.5 kW
OVERALL DIMENSIONS
3630 mm x 1200 mm x 1700 mm
NET WEIGHT
3800 kg
Standard equipment
- 3-jaw chuck PS3-315/D8
- Face plate 400 mm
- Clamping plate 450 mm
- Digital readout for 3 axes

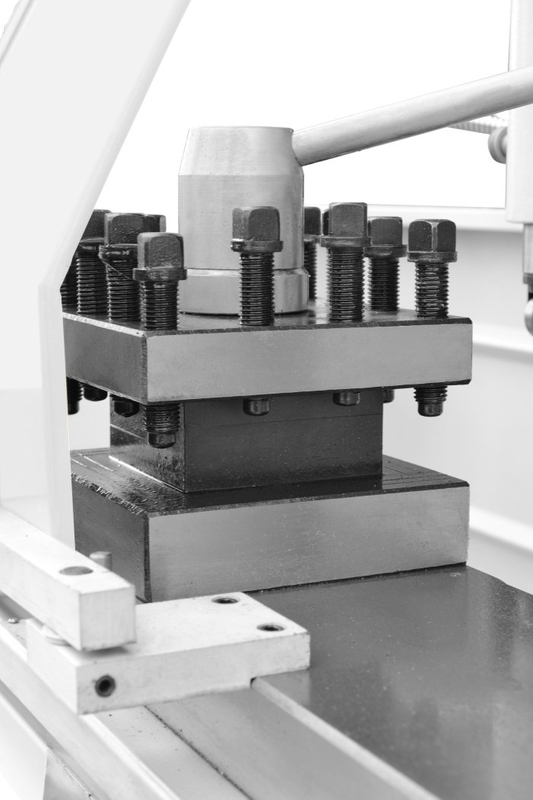

- Four-way tool post
