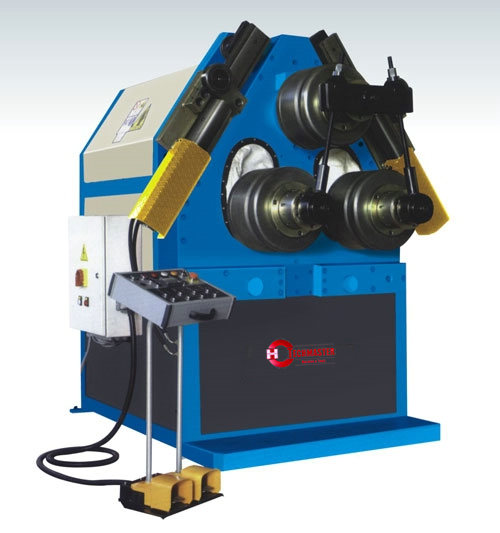

JW- | 50S | 75S | 89S | 115S | 159S | 245S | 273S | |
(mm ) Profile section modulus of bending | 6 | 16 | 30 | 45 | 100 | 320 | 500 | |
(MPa) profile yield limit(MPa) | 245 | 245 | 245 | 245 | 245 | 245 | 245 | |
Steel pipe ◎ ∣ ◎ | Max section | Φ42×3 | Φ76×4 | Φ89×5 | Φ114×5 | Φ159×5 | Φ245×8 | Φ273×10 |
| Min bending Dia | φ500 | φ800 | φ1000 | φ1250 | φ1600 | φ3500 | φ5000 |
angle steel incurvature ┏ ∣ ┑ | Max section | 45×45×5 | 70×70×8 | 75×75×10 | 100×100×12 | 110×110×14 | 180×180×16 | 200×200×24 |
| Min bending Dia | φ700 | φ1100 | φ1200 | φ1300 | φ1600 | φ3600 | φ4200 |
angle steel excurvature ┒ ∣ ┎ | Max section | 50×50×6 | 75×75×10 | 90×90×10 | 100×100×16 | 120×120×16 | 180×180×16 | 200×200×24 |
| Min bending Dia | φ700 | φ1000 | φ1150 | φ1300 | φ1600 | φ3500 | φ42000 |
channel steel incurvature [ ∣ ] | Channel steel model | 8 | 14 | 16 | 18 | 22 | 36 | 40 |
| Min bending Dia | φ560 | φ800 | φ1000 | φ1350 | φ1500 | φ3500 | φ4000 |
channel steel excurvature ] ∣ [ | Channel steel model | 8 | 14 | 16 | 18 | 22 | 36 | 40 |
| Min bending Dia | φ500 | φ760 | φ800 | φ1300 | φ1400 | φ3500 | φ4000 |
flat steel bend in easy way∣] ∣ [∣ | Max section | 100×18 | 150×25 | 180×25 | 250×30 | 250×40 | 350×60 | 500×75 |
| Min bending Dia | φ500 | φ600 | φ900 | φ1000 | φ1200 | φ2400 | φ4800 |
flat steel bend in hard way 〓 ∣ 〓 | Max section | 50×12 | 75×16 | 90×20 | 100×30 | 120×40 | 190×50 | 200×60 |
| Min bending Dia | φ500 | φ600 | φ900 | φ1000 | φ1200 | φ2400 | φ4800 |
Pipe ● ∣ ● | Max section | φ30 | φ50 | φ65 | φ75 | φ90 | φ145 | φ160 |
| Min bending Dia | φ450 | φ600 | φ700 | φ800 | φ1000 | φ1600 | φ1800 |
(mm)standard module Dia | φ220 | φ350 | φ360 | φ385 | φ460 | φ650 | φ800 | |
(m/min)bending speed | 5.5 | 5 | 5 | 5 | 4.5 | 3 | 3 | |
(kw)main motor power | 3 | 5.5 | 7.5 | 11 | 15 | 30 | 30 |
