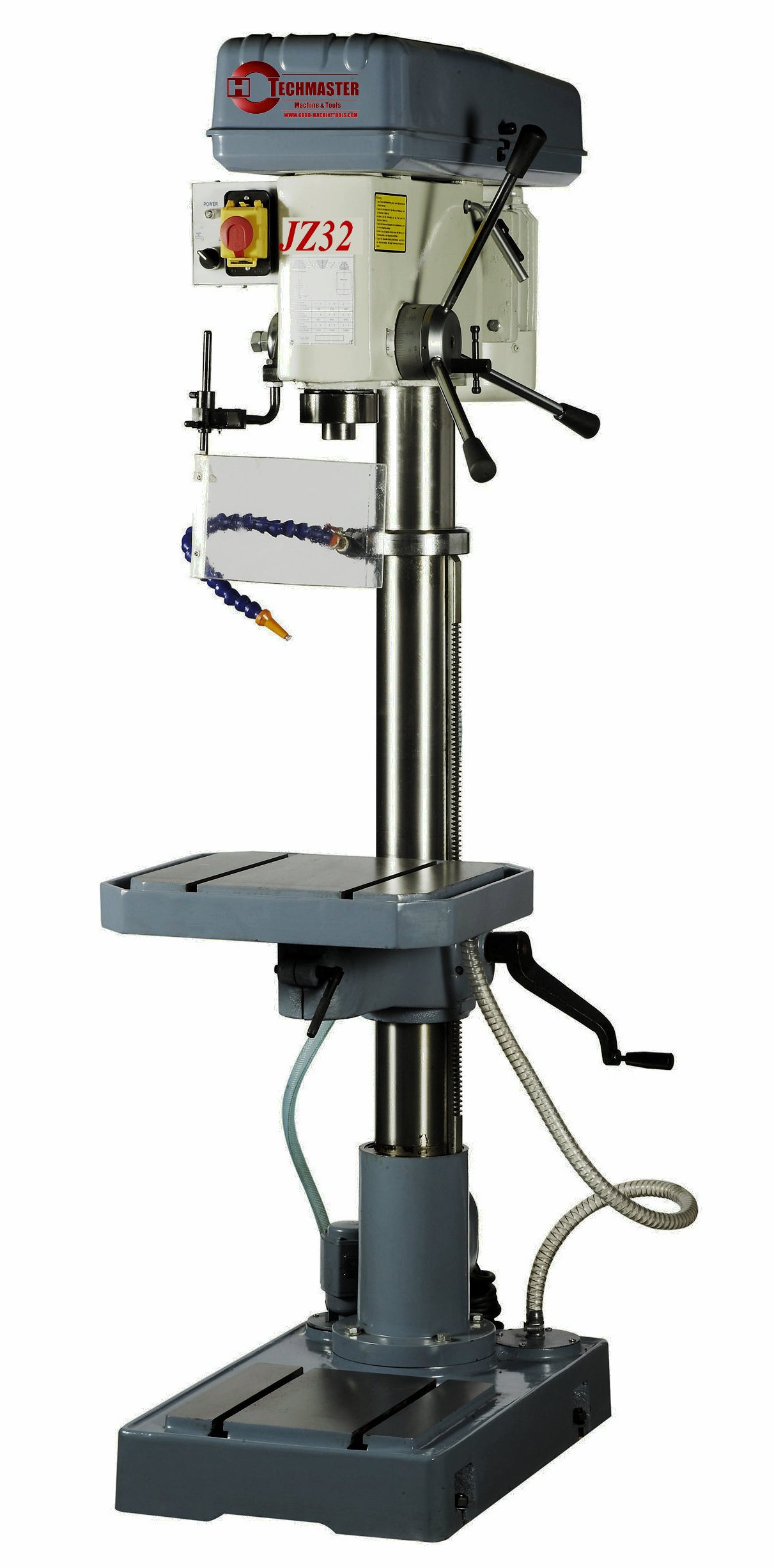

JZ32L

Quantity:

MODEL

JZ-25

JZ-32 (A) (L)

Max.Drilling capacity

25mm

32mm

Diameter of column

85mm

102mm

Spindle stroke

93mm

130mm

Distance spinde axis to column surface

180mm

230mm

Max.Distance spinde nose to table

425mm

620mm

Max.Distance spinde nose to base

610mm

1095mm

Spinde taper

MT.3

MT.3

Spinde speeds range

240-2710r/min

160-1880r/min

Spinde speeds

9

9

Working area of table

320mm/280*310mm

420mm/380*330mm

Working area of base

250*250mm

300*320mm

Overall height

1050mm

1681mm

Motor

1100w

1100w

G. W./N. W.

118/108kg

220/200kg 230/210kg

Ship measurement(wooden cases)

79*46*115cm

93*57*180cm
