| Quantity: | |
|---|---|

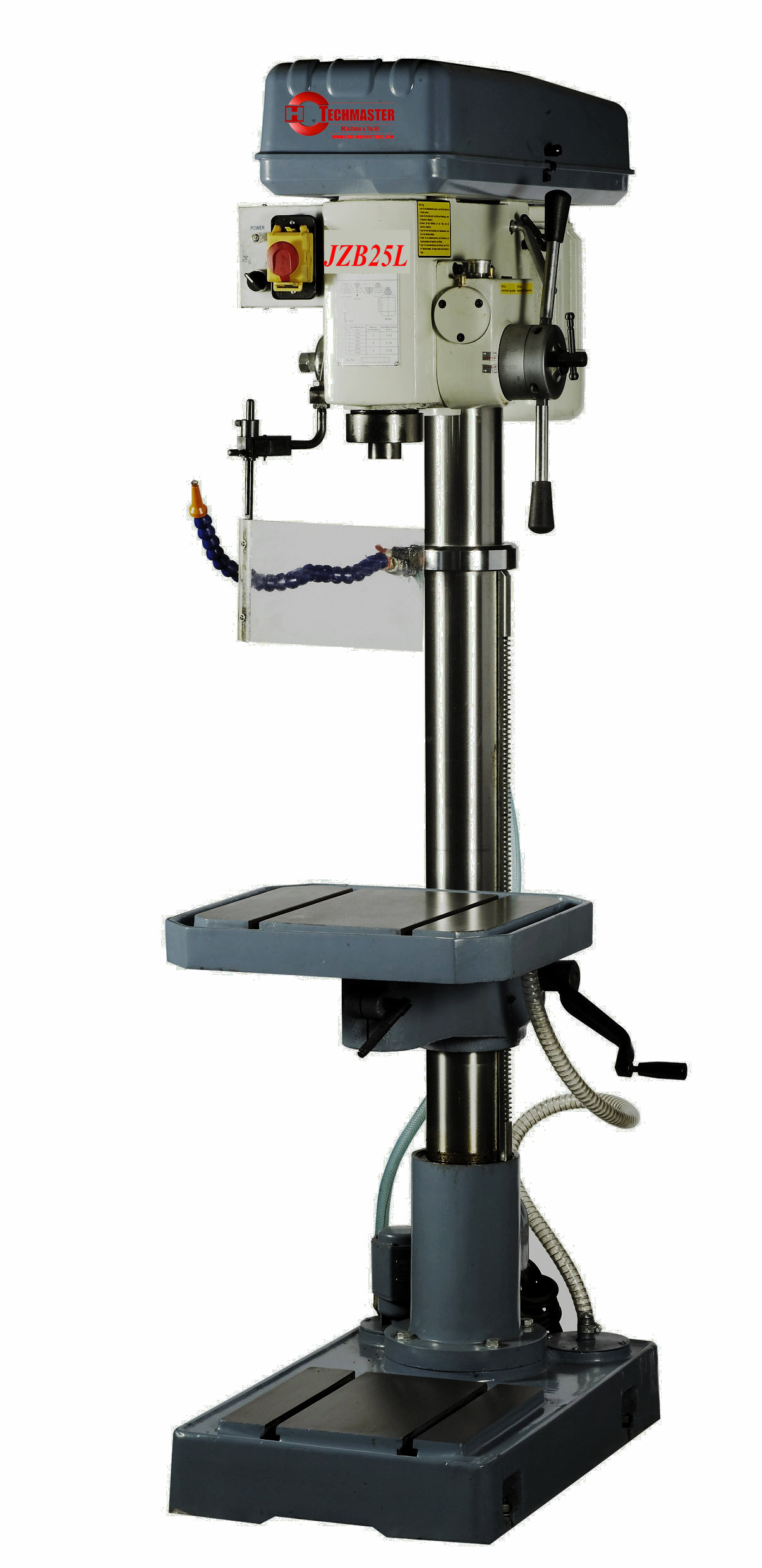

| MODEL | JZB-25(L) |
| Max.Drilling capacity | 25mm |
| Spindle stroke | 102mm |
| Distance spinde axis to column surface | 130mm |
| Max.Distance spinde nose to table | 230mm |
| Max.Distance spinde nose to base | 680mm |
| Spinde taper | 965mm |
| Spinde speeds range | MT.3 |
| Spinde speeds | 230-2160r/min |
| Working area of table | 6 |
| Working area of base | Ф420mm/330×380mm |
| Trip table | 300×320mm |
| Overall height | 1681mm |
| Motor power | 1500w |
| G.W/N.W | 220/200kg,230/210kg |
| Ship measurement(wooden cases) | 93×57×180cm |
