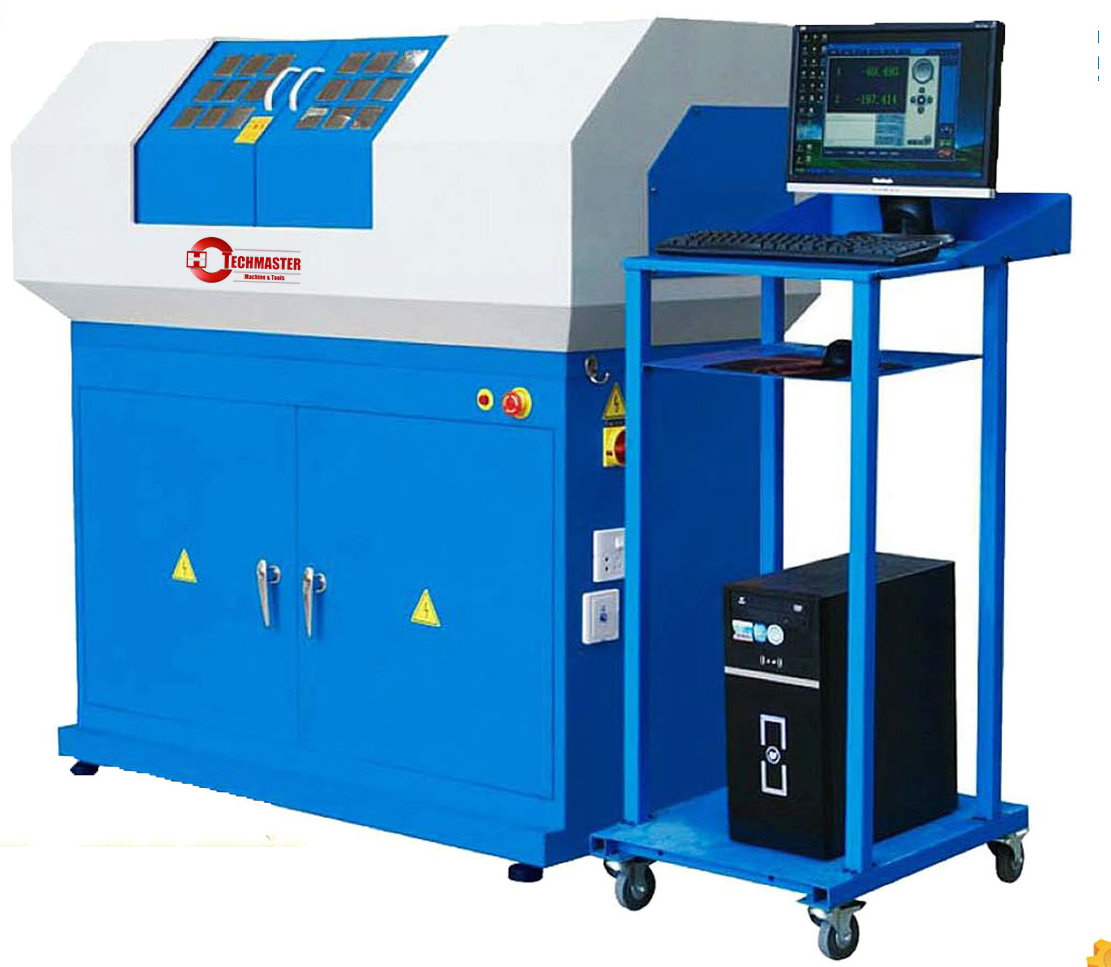

KC6S CNC LATHE

Key Features

• Swing over bed : 260 mm
• Max distance between centers : 550mm
• PC based Sieg CNC system,high reliability,operate simple
• Connect with PC via network cable
• Automatic 4 positions tool post
• High strength guide way
• CE safety certification

WORKING AREA

• Turning diameter over bed(max) : 250mm
• Travel across slide : 110mm
• Center width : 450mm

SPINDLE

• Chuck diameter : 125mm
• Spindle speed : 100-3000r/min
• Spindle through-hole : 20mm
• Spindle mount : MT3
• Spindle motor power : 1000W

FEED

• X travel : 180mm
• Z travel : 320mm
• The max moving speed : 2000mm/min
• The max feeding speed : 500mm/min
• Motor : 4N/m

TOOLREST

• Tool position : 4
• Tool dimension : 10×10mm

TAILSTOCK

• Tailstock taper : MT2
• Tailstock sleeve diameter : 17mm
• Travel of tailstock : 50mm

ACCURACY

• Positioning accuracy : 0.015mm
• Repeatability accuracy : 0.01mm

OTHERS

• Power : 220V
• Weight(NW/GW) : 360/410kg
• Dimension : 1460×760×1450/1630×1070×1685
