KNEE-TYPE MILLING MACHINE 57-3D
Quantity: -
57-3D

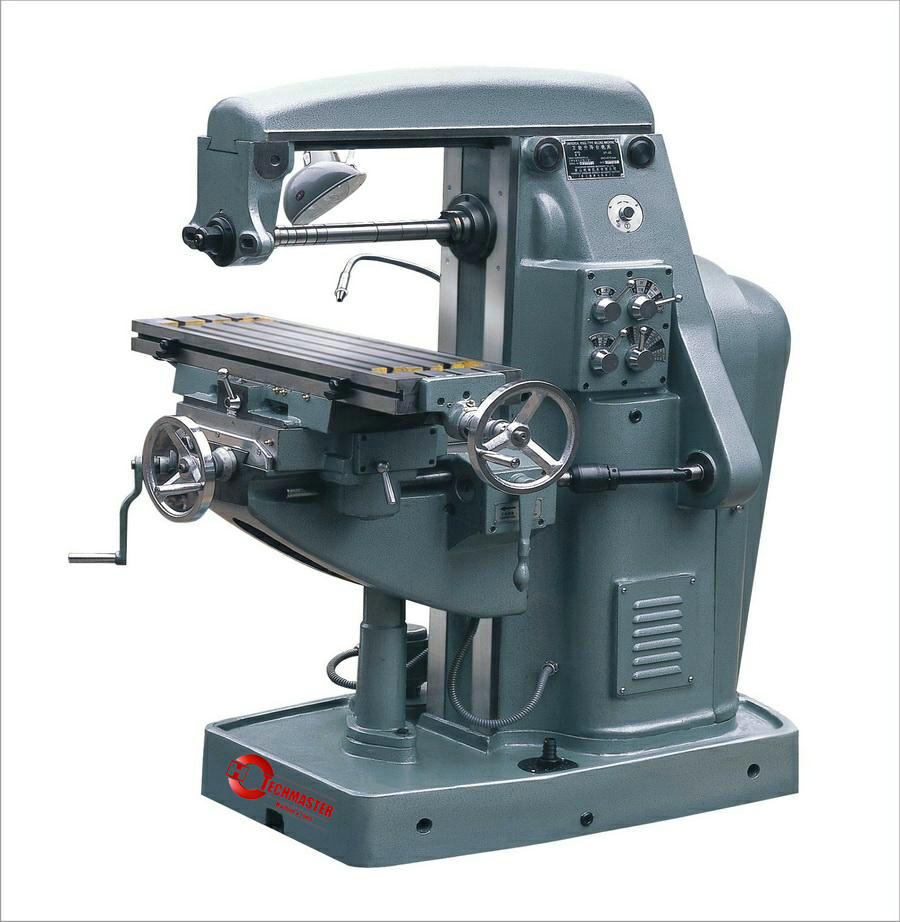

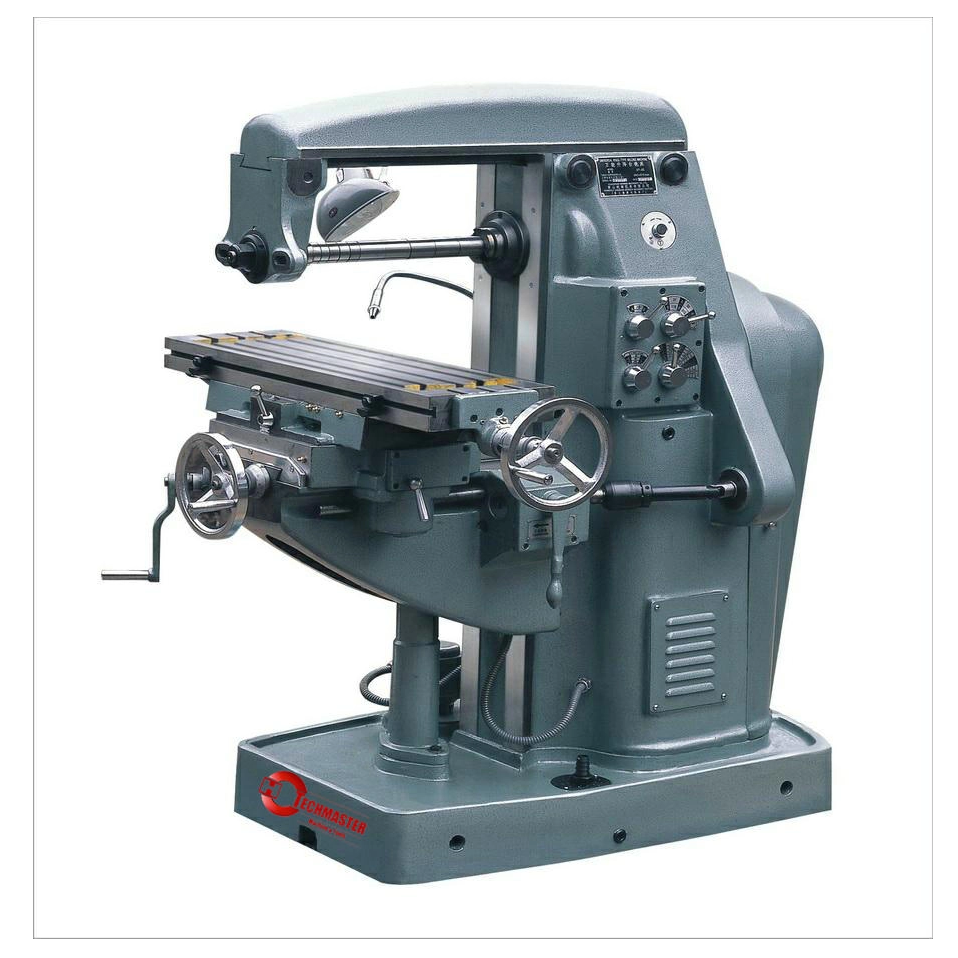

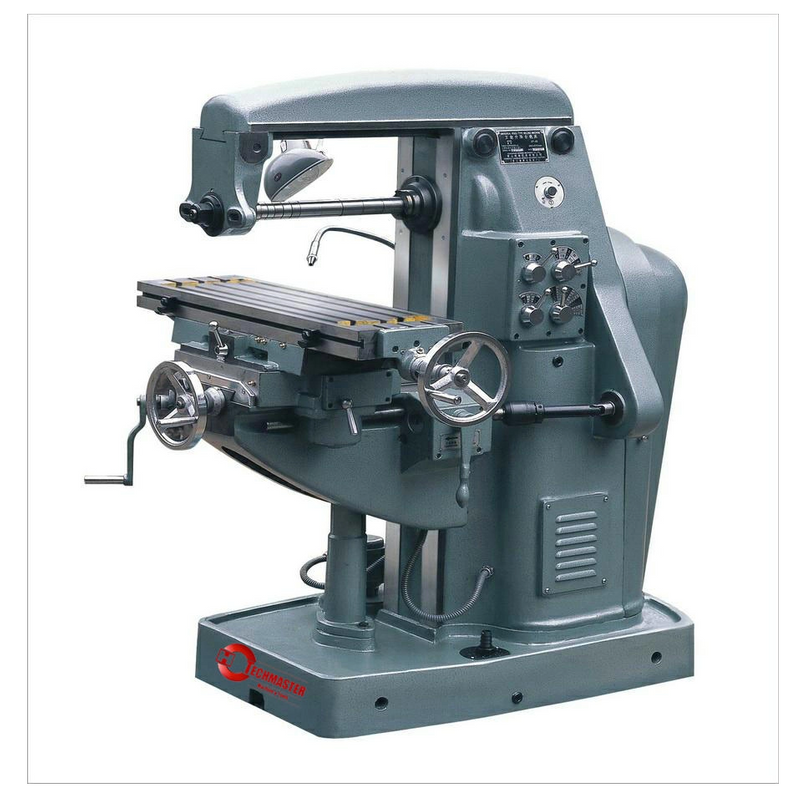

X57-3D universal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equiped with optional accessories, such as vertical milling head and dividing gead, machine can be applicable to versatile processing. With high rigidty, accuracy and efficiency, it is an ideal machine tool for machining process, maintenance, instrument, die and molds.
Complete coolant and lubrication system
DRO equipment is optionalWork table size(mm) 240x810 T slots(NxWxD)(mm) 3x14x54 Longitudinal Travel X(mm) 480 Cross travel Y(mm) 165 Vertical travel Z(mm) 300 Max.rotary angle of table ±45º Spindle hole taper Mt3 or 7:24 NO:30 Arbor diameter φ22, φ27 Distance from spindle center to arm(mm) 160 Distance from spindle center to worktable(mm) 60-360 Spindle speed steps 6 steps Spindle feed range(r/min) 31-570(horizontal) 31-1250(vertical) Feed speed steps 6 steps Feed speed range:Longitudinal X(mm/min) 7.3-111.9 Cross Y(mm/min) 14.9-226.3 Vertical Z(mm/min) 6-90.4 Main motor power(kw) 1.5 Machine dimension(mm) 1400x1240x1478 Package dimension(mm) 1500x1340x1800 Net weight(kg) 1200 Voltage/Frequency(v/hz) 380/50
X57-3D universal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equiped with optional accessories, such as vertical milling head and dividing gead, machine can be applicable to versatile processing. With high rigidty, accuracy and efficiency, it is an ideal machine tool for machining process, maintenance, instrument, die and molds.
Complete coolant and lubrication system
DRO equipment is optionalWork table size(mm) 240x810 T slots(NxWxD)(mm) 3x14x54 Longitudinal Travel X(mm) 480 Cross travel Y(mm) 165 Vertical travel Z(mm) 300 Max.rotary angle of table ±45º Spindle hole taper Mt3 or 7:24 NO:30 Arbor diameter φ22, φ27 Distance from spindle center to arm(mm) 160 Distance from spindle center to worktable(mm) 60-360 Spindle speed steps 6 steps Spindle feed range(r/min) 31-570(horizontal) 31-1250(vertical) Feed speed steps 6 steps Feed speed range:Longitudinal X(mm/min) 7.3-111.9 Cross Y(mm/min) 14.9-226.3 Vertical Z(mm/min) 6-90.4 Main motor power(kw) 1.5 Machine dimension(mm) 1400x1240x1478 Package dimension(mm) 1500x1340x1800 Net weight(kg) 1200 Voltage/Frequency(v/hz) 380/50
