KNEE-TYPE MILLING MACHINE FU1235
Quantity: -

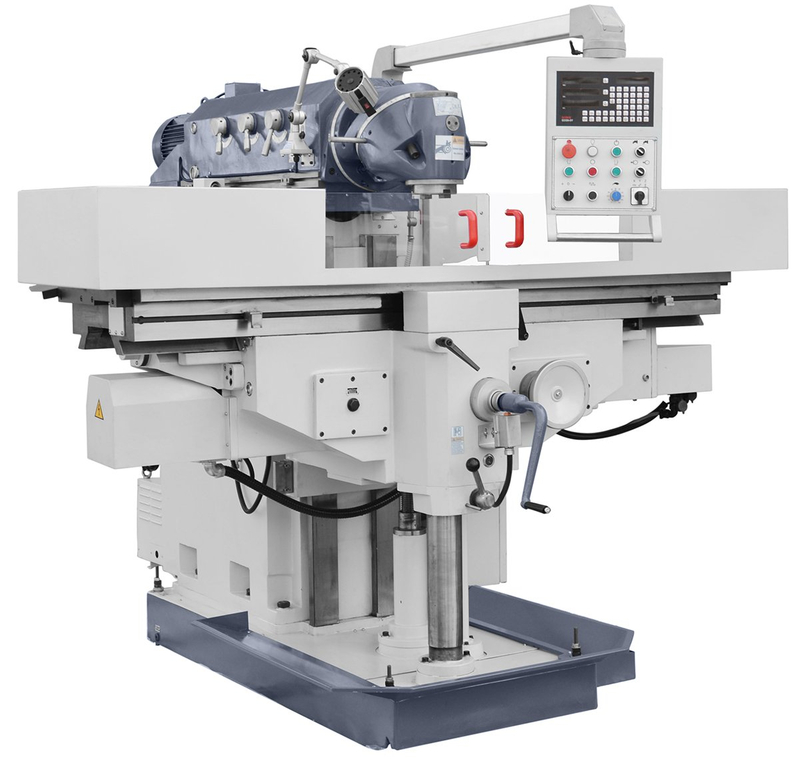

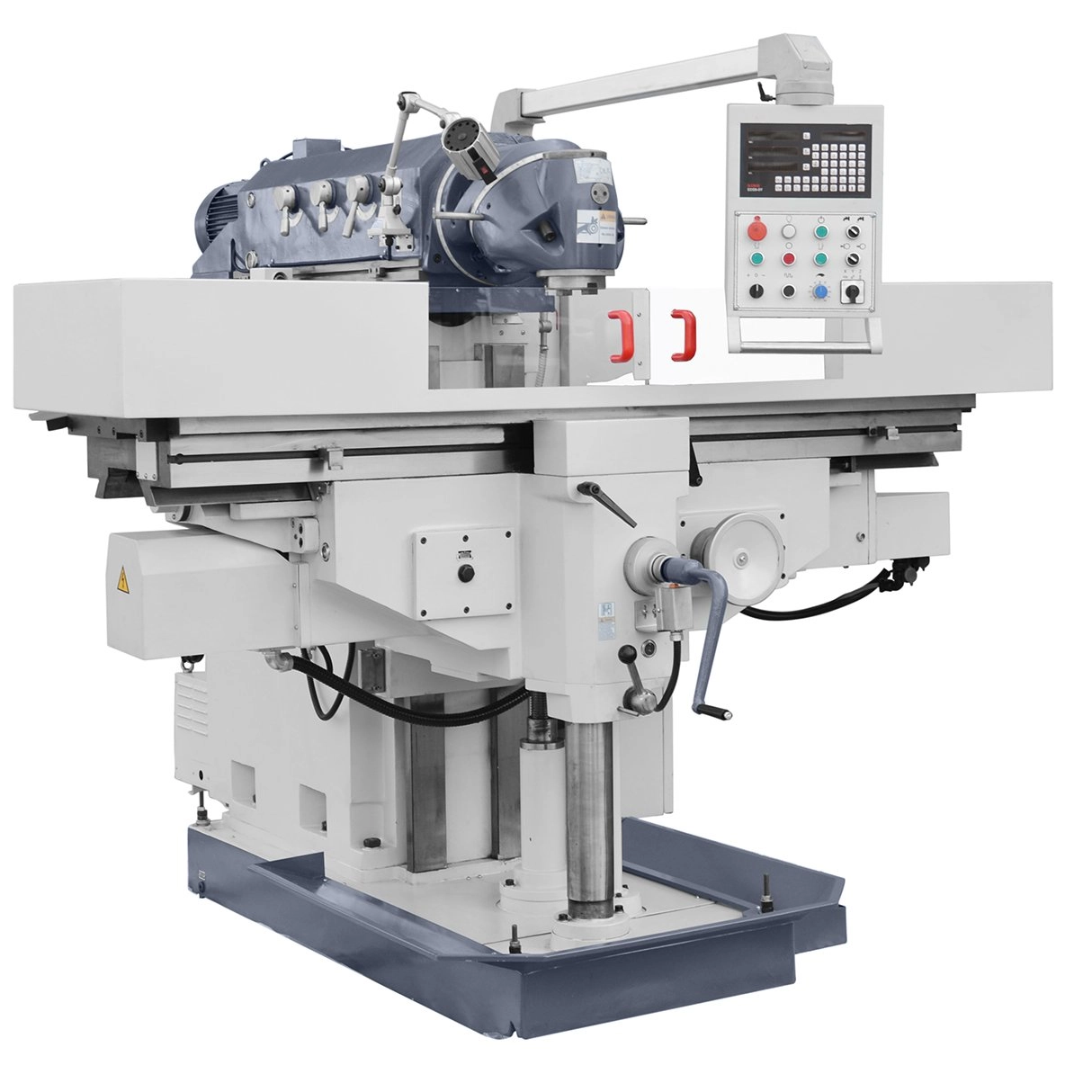

KNEE-TYPE MILLING MACHINE FU1235
High-quality milling machines with a sturdy construction.
The large table allows the machining of parts with high weight to 1800 kg.
As drives in all axes used servo-motors and ball bolts.Technical data
Table dimensions
460x1235 mm
Table load capacity
250 kg
Travel X-axis
900 mm
Travel Y-axis
650 mm
Travel Z-axis
450 mm
Speed range
(27) 30 - 2050 min-1
Distance from spindle taper to table surface
58 - 508 mm
Swivel head
360°
Rapid feed X-axis
2200 mm/min
Rapid feed Y-axis
2200 mm/min
Rapid feed Z-axis
1100 mm/min
Rapid feed X-axis
10 - 1000 mm/min
Rapid feed Y-axis
10 - 1000 mm/min
Rapid feed Z-axis
6- 640 mm/min
Power, main drive
5.5 kW
Overall dimensions
2570x2035x1990 mm
Weight
4000 kg
Scope of delivery
- Digital readout for 3 axes
- Milling arbor with collets set for end mills
- Reduction sleeves ISO 40/Morse
- Lighting installation – 24 V
- Cooling system
- Instructions for use in Polish language
