X6130C

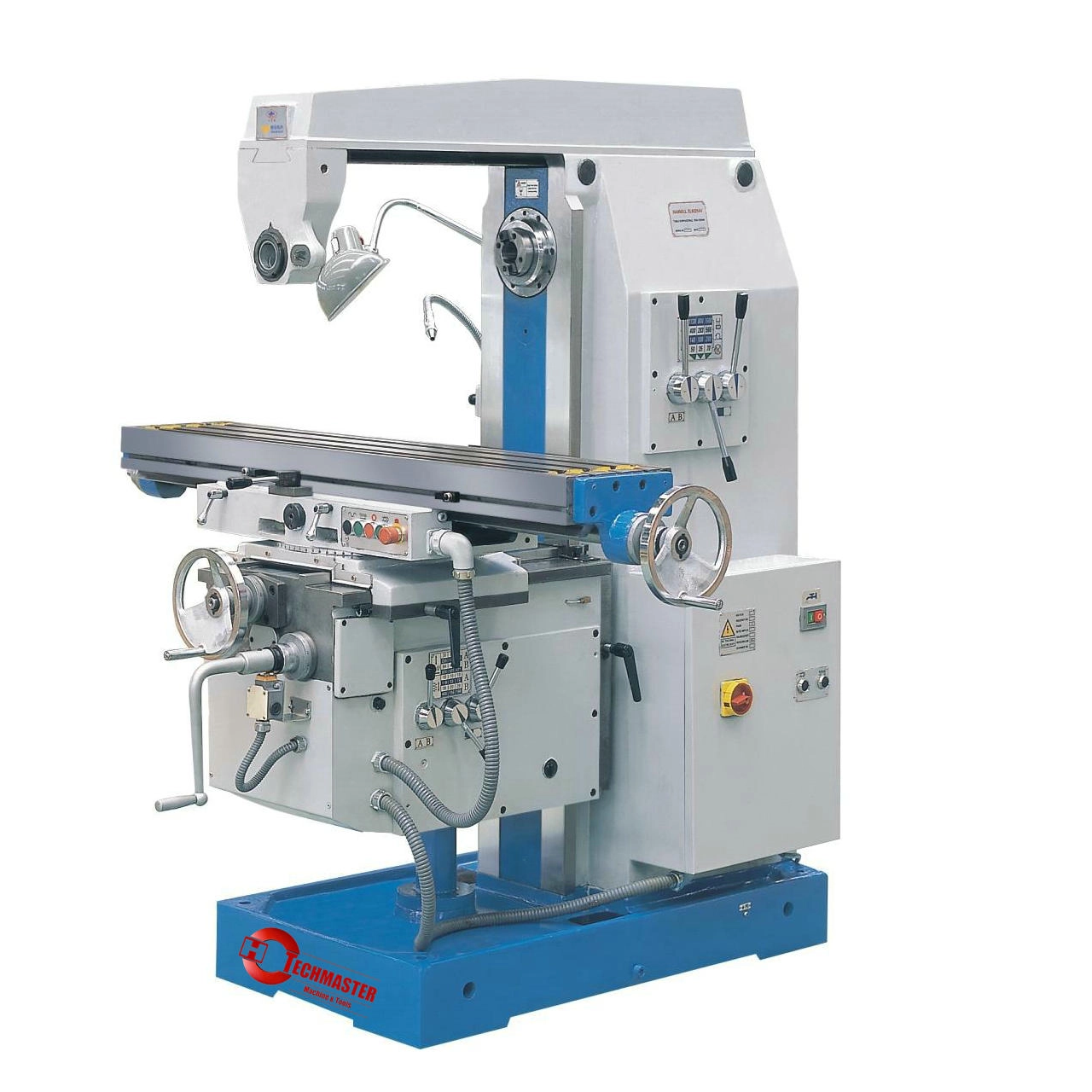

X6130C universal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equiped with optional accessories, such as vertical milling head and dividing gead, machine can be applicable to versatile processing. With high rigidty, accuracy and efficiency, it is an ideal machine tool for machining process, maintenance, instrument, die and molds.
Complete coolant and lubrication system
DRO equipment is optional
Work table size(mm) | 300x1250 |
T slots(NxWxD)(mm) | 3x14x63 |
Max.Load on work table(kg) | 250 |
Longitudinal Trave X(mm) | 800 |
Cross travel Y(mm) | 235 |
Vertical travel Z(mm) | 440 |
Max.rotary angle of table | ±45º |
Spindle hole taper | 7:24 NO.40 |
Arbor diameter | φ22, φ27 |
Distance from spindle center to arm(mm) | 161 |
Distance from spindle center to worktable(mm) | 30-470 |
Spindle speed steps | 12 steps |
Spindle feed range(r/min) | 35-1600 |
Feed speed steps | 12 steps |
Feed speed range:Longitudinal X(mm/min) | 15-800 |
Cross Y(mm/min) | 15-800 |
Vertical Z(mm/min) | 6-270 |
Rapid feed range:Longitudinal X(mm/min) | 2100 |
Cross Y(mm/min) | 2100 |
Vertical Z(mm/min) | 880 |
Main motor power(kw) | 4 |
Feed motor power(kw) | 0.75 |
Machine dimension(mm) | 1650x1540x1720 |
Package dimension(mm) | 1800x1560x2220 |
Net weight(kg) | 1700 |
Voltage/Frequency(v/hz) | 380/50 |
