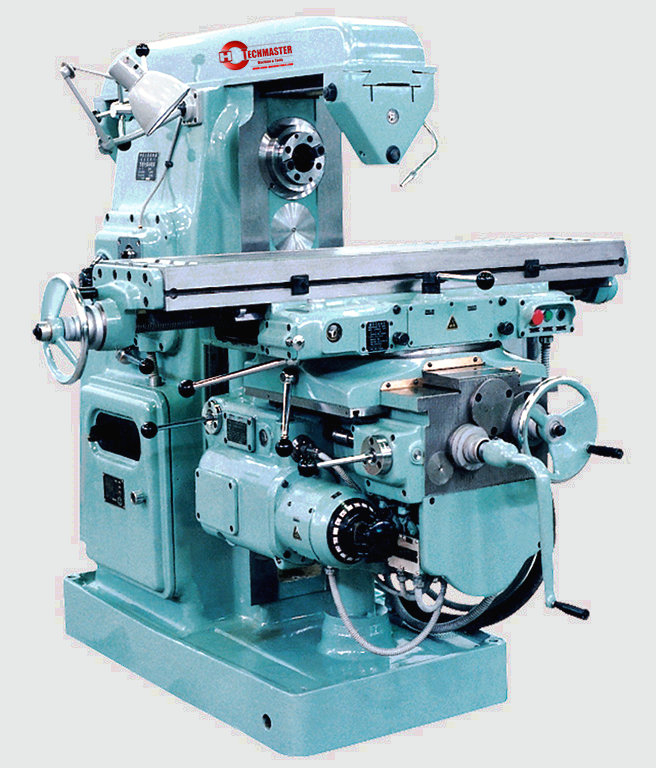

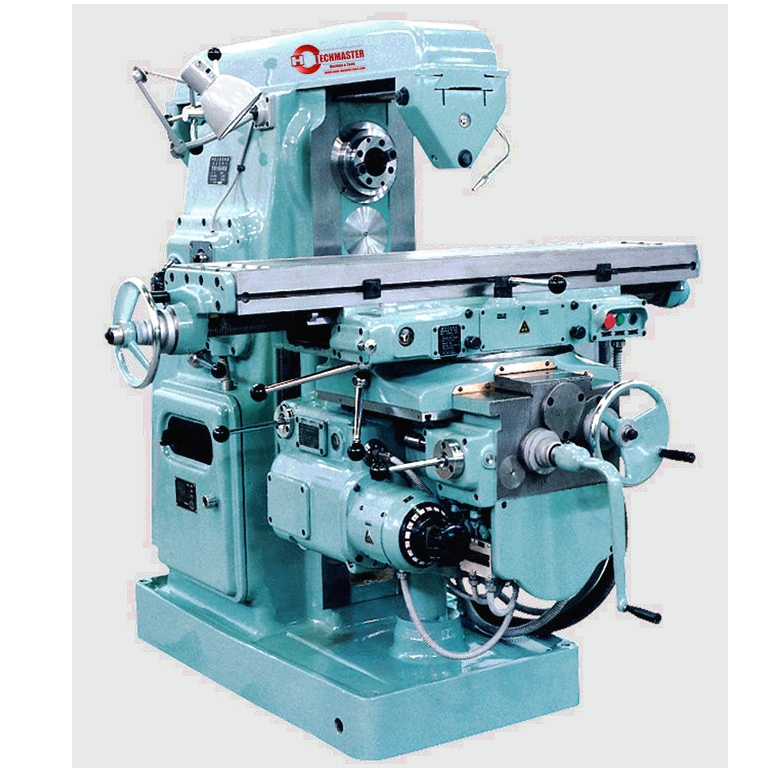

X6132
Features of X6132 Heavy Duty Universal Knee-type Milling Machine1. X6132 XL worktable length is extended to 1600mm;2. X6132 XH vertical travel is extended to 410mm;3. X6132 XLH worktable length is extended to 1600mm and vertical travel is extended to 410mm;4. Main parts are casted with high-strength material and after artificial aging treatment;5. Spindle bearing is tapered roller bearing; spindle adopts three supporting structure with good rigidity and strong load capacity;6. Worktable can swivel ±45° on the horizontal plane;7. Main transmission and worktable feed adopt gear change mechanism with wide speed range;8. The guideway pair on X, Y and Z axes are supersonic frequency quenched, precision grinded and scraped;9. Lubrication system may make forced lubrication on the lead screw and guideway;10. Ball screw is optional for X6132 Heavy Duty Vertical Knee-type Milling Machine;Technical parameters of X6132 Heavy Duty Universal Knee-type Milling MachineModelUnitX6132TypeGXHXLXLHWorking table size(L×W)mm1320x3201320x3201600x3201600x320T slot (Width × No. × Pitch)mm18x3x7018x3x7018x3x7018x3x70Max. load-bearingkg500500500500Longitudinal travel (manual/power)mm700/680700/680900/880900/880Cross travel (manual/power)mm255/240255/240255/240255/240Vertical travel (manual/power)mm320/300410/390320/300410/390Spindle motor powerkW7.57.57.57.5Spindle taperISO50 7: 24ISO50 7: 24ISO50 7: 24ISO50 7: 24Spindle speedrpm18 steps 30~150018 steps 30~150018 steps 30~150018 steps 30~1500Max swiveling angle of tableº±45º±45º±45º±45ºDistance from spindle nose to working tablemm30~35030~44030~35030~440Distance from spindle axis to column guidewaymm215~470215~470215~470215~470Feed step18181818Feed rate (X/Y/Z)mm/min18 steps; 23.5-1180/23.5-1180/8-394Rapid feed (X/Y/Z)mm/min2300/2300/7702300/2300/7702300/2300/7702300/2300/770Feed motor powerkW1.51.51.51.5Overall dimensions(L×W×H)mm2294x1770x16652294x1770x17902294x2050x16652294x2050x1790Weight (net/gross)kg2650/34002850/36002750/35002950/3700Standard accessories of X6132 Heavy Duty Universal Knee-type Milling Machine1. Horizontal arbor assembly; 2. End milling arbor;3. Inner hexagon spanner; 4. Draw bar;5. Oil gun; 6. Double-ended wrench;Optional accessories of X6132 Heavy Duty Universal Knee-type Milling Machine1. Dividing head; 2. Rotary table;3. Milling chuck; 4. Vertical milling head;5. Machine vice; 6. Digital Readout (DRO);Features of X6132 Heavy Duty Universal Knee-type Milling Machine1. X6132 XL worktable length is extended to 1600mm;2. X6132 XH vertical travel is extended to 410mm;3. X6132 XLH worktable length is extended to 1600mm and vertical travel is extended to 410mm;4. Main parts are casted with high-strength material and after artificial aging treatment;5. Spindle bearing is tapered roller bearing; spindle adopts three supporting structure with good rigidity and strong load capacity;6. Worktable can swivel ±45° on the horizontal plane;7. Main transmission and worktable feed adopt gear change mechanism with wide speed range;8. The guideway pair on X, Y and Z axes are supersonic frequency quenched, precision grinded and scraped;9. Lubrication system may make forced lubrication on the lead screw and guideway;10. Ball screw is optional for X6132 Heavy Duty Vertical Knee-type Milling Machine;Technical parameters of X6132 Heavy Duty Universal Knee-type Milling MachineModelUnitX6132TypeGXHXLXLHWorking table size(L×W)mm1320x3201320x3201600x3201600x320T slot (Width × No. × Pitch)mm18x3x7018x3x7018x3x7018x3x70Max. load-bearingkg500500500500Longitudinal travel (manual/power)mm700/680700/680900/880900/880Cross travel (manual/power)mm255/240255/240255/240255/240Vertical travel (manual/power)mm320/300410/390320/300410/390Spindle motor powerkW7.57.57.57.5Spindle taperISO50 7: 24ISO50 7: 24ISO50 7: 24ISO50 7: 24Spindle speedrpm18 steps 30~150018 steps 30~150018 steps 30~150018 steps 30~1500Max swiveling angle of tableº±45º±45º±45º±45ºDistance from spindle nose to working tablemm30~35030~44030~35030~440Distance from spindle axis to column guidewaymm215~470215~470215~470215~470Feed step18181818Feed rate (X/Y/Z)mm/min18 steps; 23.5-1180/23.5-1180/8-394Rapid feed (X/Y/Z)mm/min2300/2300/7702300/2300/7702300/2300/7702300/2300/770Feed motor powerkW1.51.51.51.5Overall dimensions(L×W×H)mm2294x1770x16652294x1770x17902294x2050x16652294x2050x1790Weight (net/gross)kg2650/34002850/36002750/35002950/3700Standard accessories of X6132 Heavy Duty Universal Knee-type Milling Machine1. Horizontal arbor assembly; 2. End milling arbor;3. Inner hexagon spanner; 4. Draw bar;5. Oil gun; 6. Double-ended wrench;Optional accessories of X6132 Heavy Duty Universal Knee-type Milling Machine1. Dividing head; 2. Rotary table;3. Milling chuck; 4. Vertical milling head;5. Machine vice; 6. Digital Readout (DRO);
