LATHE TOOL GRINDER SERIES
You are here: Home » Products » TURNING » PROFESSIONAL ENGINE LATHE » LATHE TOOL GRINDER SERIES
Share to:

LATHE TOOL GRINDER SERIES

Quantity:
  • GD-125 SERIES

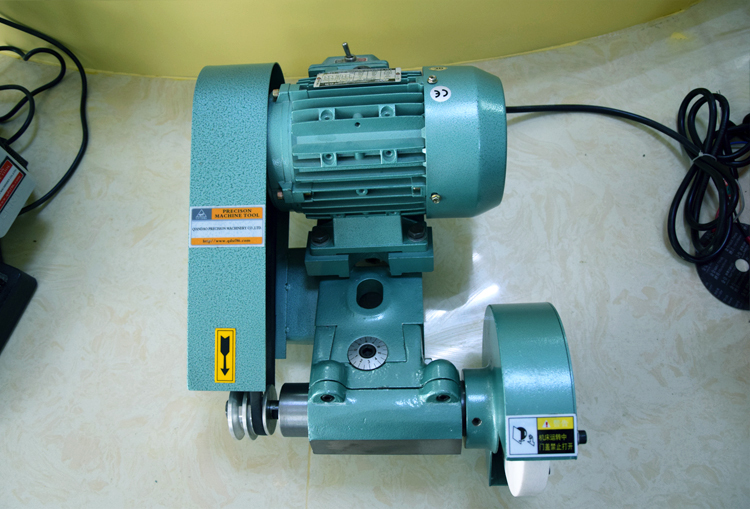

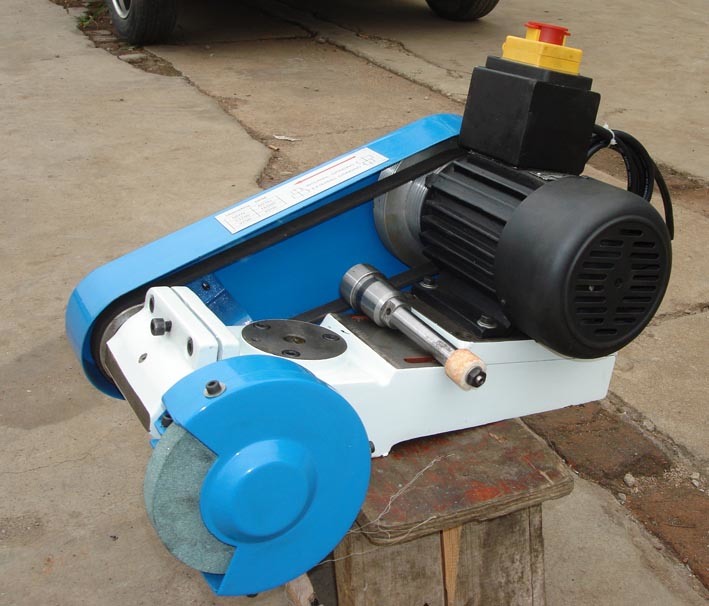

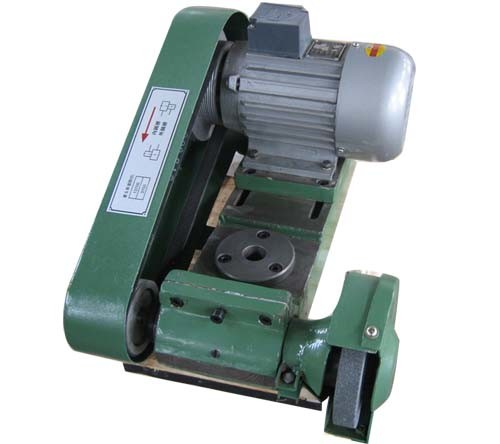

Tool Post Grinder On Lathe

Standard Accessories
1. Internal Spindle: 1
2. Pully for Internal Grinding: 2
3. Flat Belt: 1
4. Diamond tool: 1
5. Holder for Diamond Tool: 1
6. Key Folds ( 8, 5, 3, 2 mm): 4

Characteristic Features
1. The 2 main shafts have been specially designed, and the precision bearing is used to fit the main shafts which are made of alloy steel heat-treated for high wear resistance, precision, as well as maintaining to the lowest temperature for durability stablity.

2. Both motor base and spindle bushing are adjustable.

3. The motor is well designed with a special and nice appearance, The R. R. M. Of this motor varies depending on the
Size of the work piece.

4. Lathe Tool Post Grinder is capable of grinding the work piece to a minimum of 3mm in outer diameter and from 2mm
Up in inner diameter (bore) accuracy within 0.003mm well-finished surface. (supplied with special attachments). Spindle
Bushing is made of cast iron, and supported by three surfaces. Therefore, it is durable and elastic.

5. Materials such as steel, iron, copper (brass), aluminum, cast iron, plastics, porcelain, marble, regardless of being heat
Treated or not, can be ground on this machine which functions relies on the cylindrical grinder. So it may lower the cost
Of the production.


Internal grinding spindle

25*16*6mm
Center hole

Ø 25*40mm
Wheel diameter size

125*32*20mm
Voltage

220V/380V
Horse Power

1/2Hp, 50-60HZ
Outer speed

3500/4500rpm
Inner speed

16300
Standard Accessory

Intenal spindle(1pc)

Pulley for internal grinding(2pcs)
flat belt(1pc)

diamond tool(1pc)
Holder for diamond tool(1pc)

key folder(2.3.5.8)
