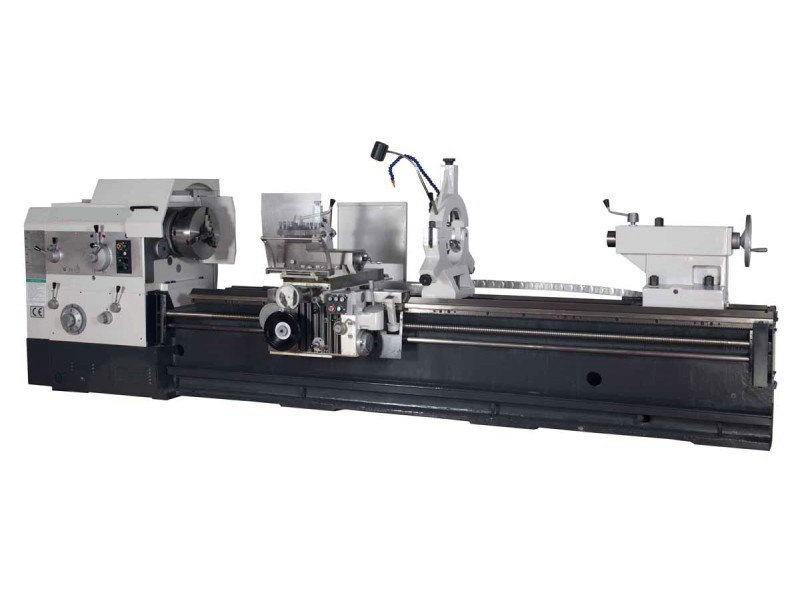

LATHE TPG800X4000
Quantity: -
LATHE TPG800X4000
LATHE TPG800X4000
Distance between centers (mm) 4000 Modular pitch (53)0,5-120 Diametral pitch (24) 1-28 Main spindle pitch (mm) Ø - 55x12 DP Cross carriage travel (mm) 500 Carriage travel (mm) 200 Max. dimension of tool (mm) 40x40 Diameter tailstock quill (mm) 100 Tailstock spindle travel (mm) 250 Tailstock morse taper MT 5 Power main motor (Kw) 15 Power of motor pump (Kw) 0,09 Dimensions (mm) (length x width x height) 6650x1550x1630 Whitworth pitch per inch (26) 14-1 Metric pitch (50)1-240 Swing over bed (mm) 800 Swing over ram (mm) 1100 Swing over carriage (mm) 480 Bed width (mm) 600 Length gap 420 Main spindle hole (mm) 105 Spindle nose CAMLOCK Nº11 Main spindle morse taper MT5 Spindle speed range (rpm) 7-720 Speed number 18 Longitudinal feed (mm/rev) (64)0,1-24,32 Cross feed (mm/rev) (64)0,5-12,16 Net weigth (Kg) 6100
