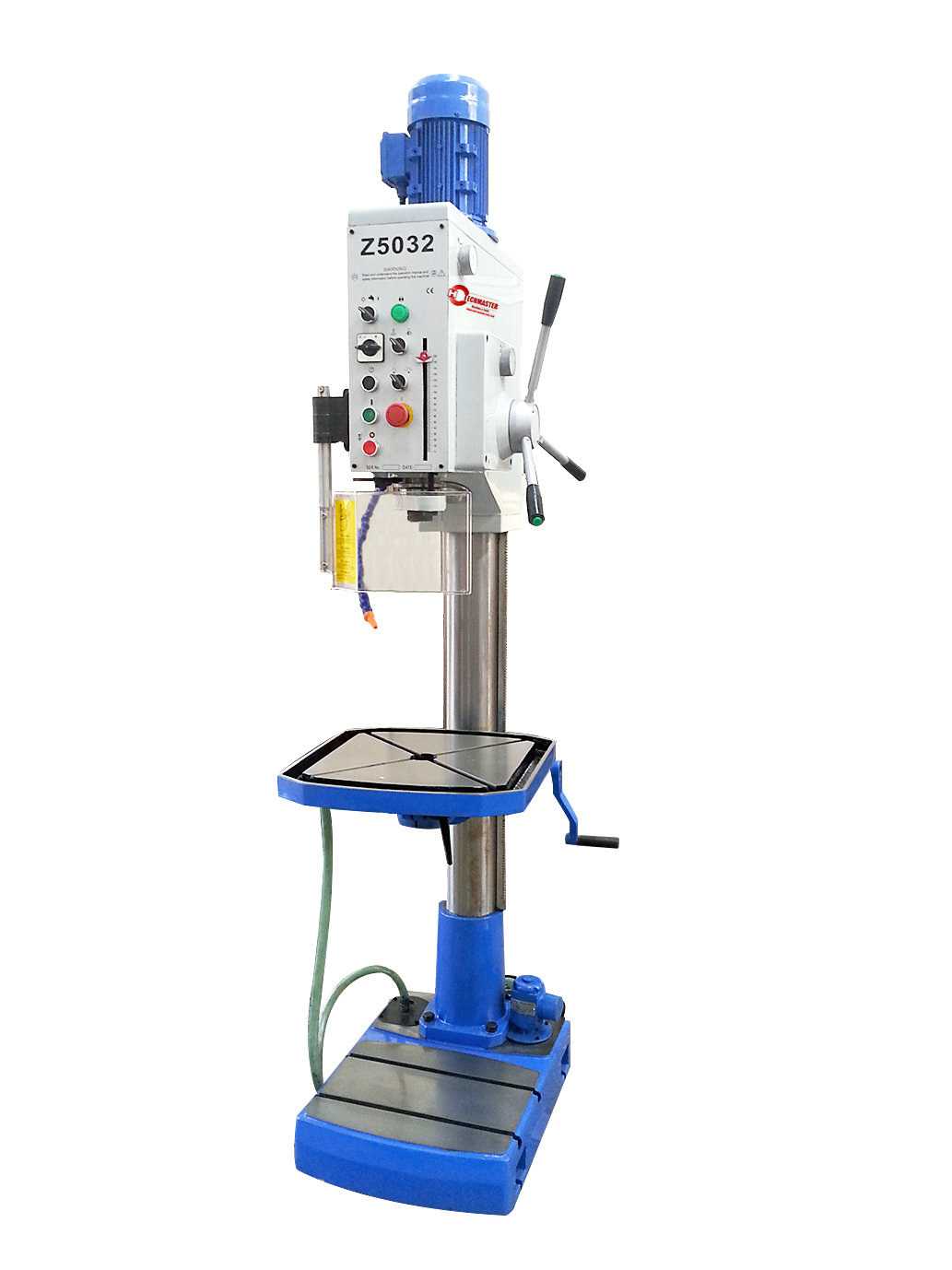

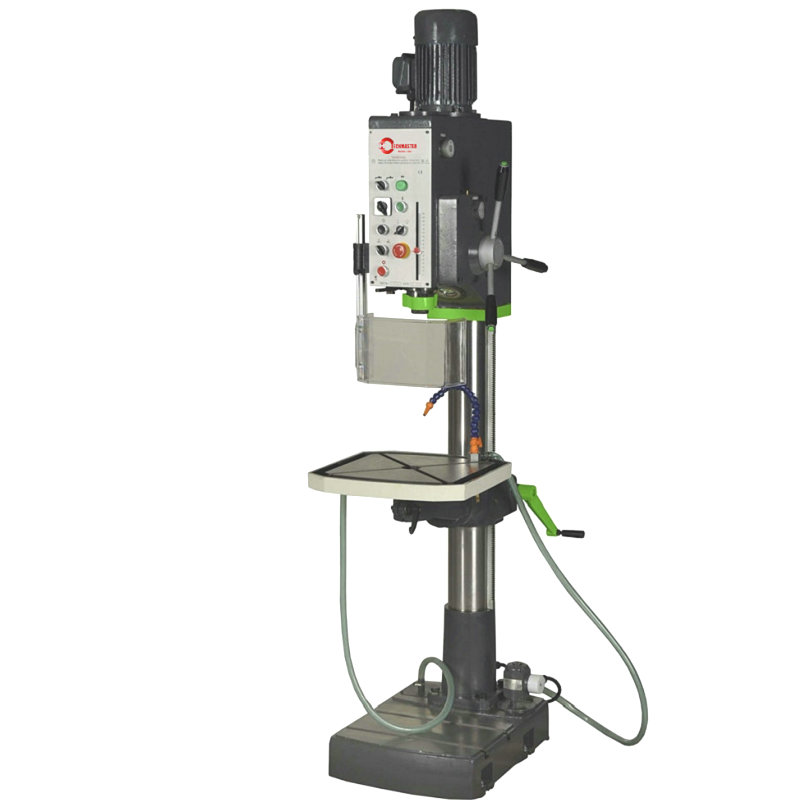

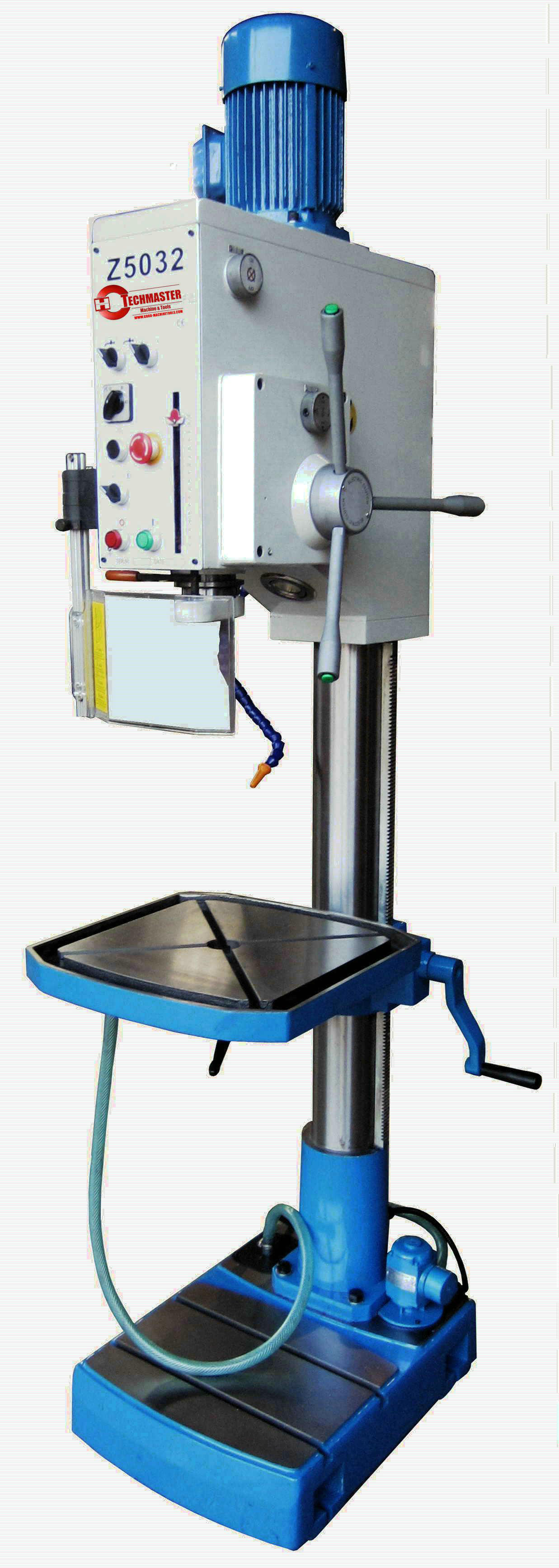

• Drilling, tapping, boring, reaming ；
•Strong column,Vice table,Gear drive, lower noise。；
•Heavy-duty tapered roller bearing spindle,Positive spindle lock。
Item | Parameter |
Max.drilling capacity(iron/steel) | 35mm |
Max.tapping capacity(iron/steel) | 22/20mm |
Spindle taper | MT4 |
Worktable size | 460×460mm |
Dimensions of base | 620×540mm |
Spindle travel | 160mm |
Distance spindle center to column surface | 300mm |
Spindle nose to worktable | 720mm |
Spindle nose to base | 1200mm |
Column diameter | 125mm |
Spindle speeds range(optiona) | 12steps:75~3200rmp |
Spindle power down feed | 0.06/0.12/0.18 mm/r |
Motor | 1.5/1.1kw |
N．W/G.W | 350/400KG |
Packing size(L×W×H) | 2200×540×750mm |
20’ Container Q’ty | 24 sets |
