Specification:

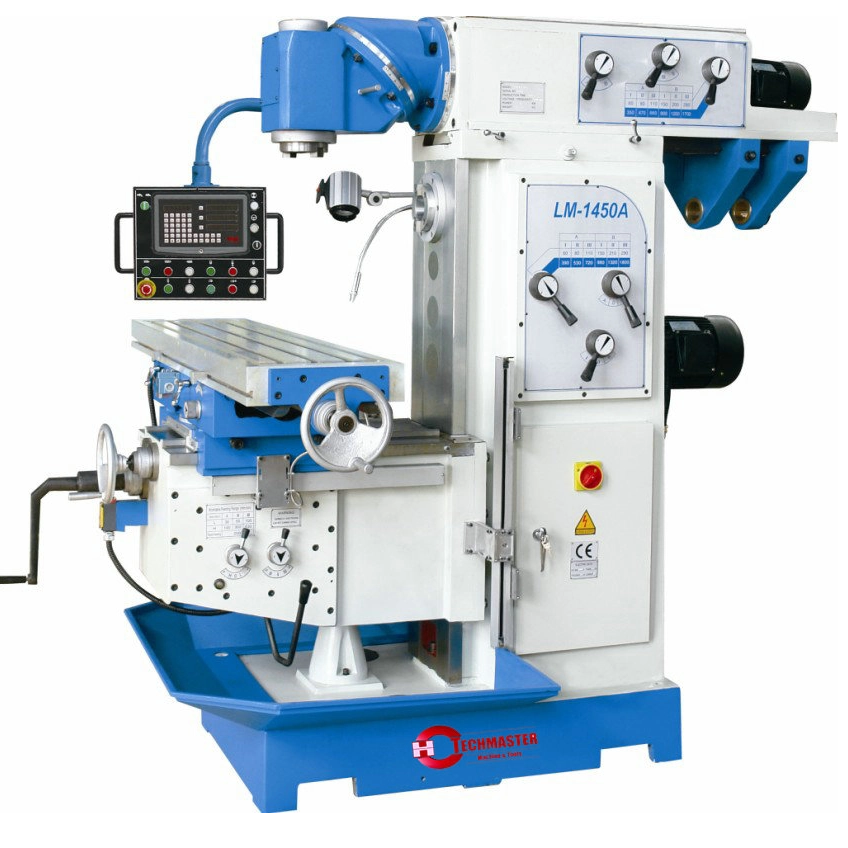

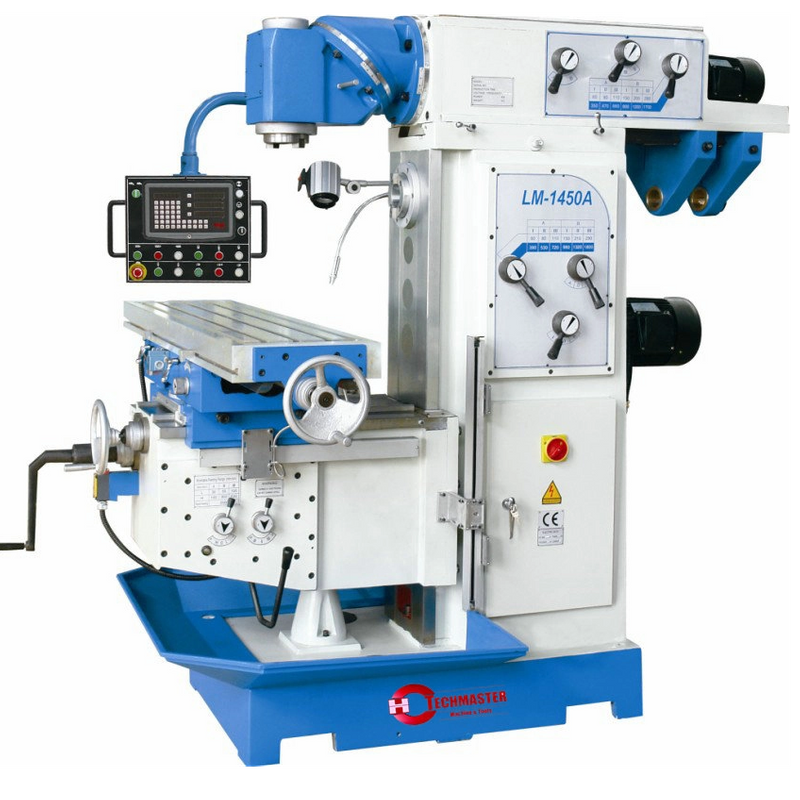

rectangular table guideways with high stability hardened and ground table surface automatic feeds on X Y and Z axis arrow diagram refers special accessoriesLM-1450A universal swivel head milling machine is based on an increase in the XQ1450 installation of rotary table 45 degrees processing of a wide range of ,three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min.
Specifications | LM1450A |
Spindle taper | ISO50 |
Difference from spindle axis to guideway(mm) | 505 |
Horizontal axis middle height | 0-480 |
Table size | 1630*360 |
Table travel | 1000*320*405 |
Main motor | 4kw |
Feeding motor | 1.5kw |
Spindle speed | 60-1800 |
Overall dimensions(mm) | 2000*2000*2250 |
N.W/G.W (kg) | 2650/2850 |
