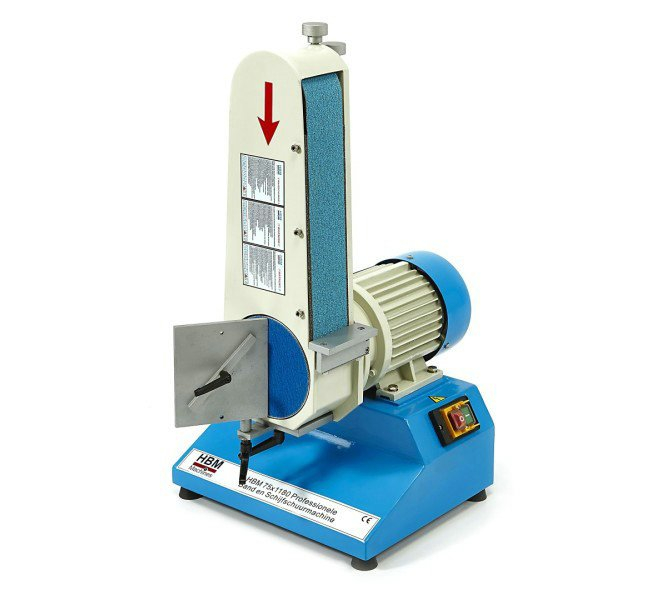

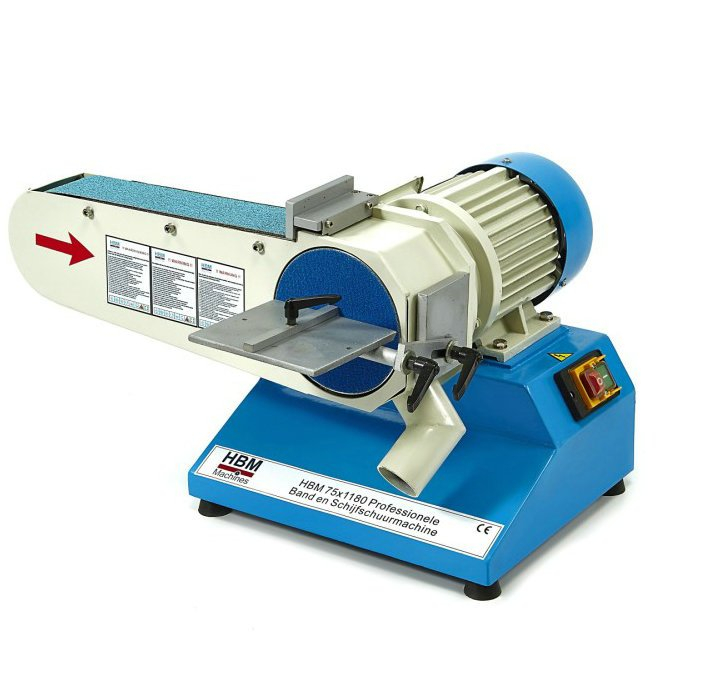

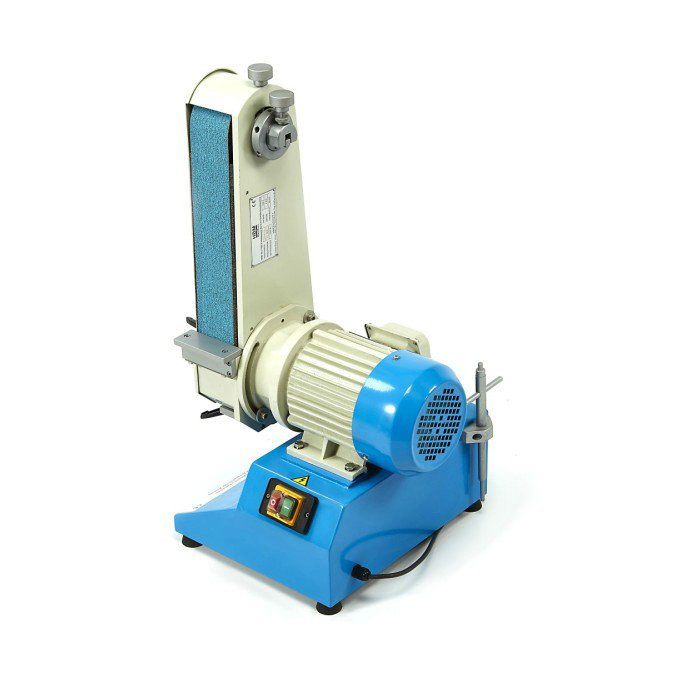

Lijadora de Banda y Disco Profesional BDS75/BDS75-2

Belt and disc sanding machines BDS75/BDS75-2

•Graphite coating on face grinder increases sliding capacity of sanding

belt

• High belt speed ensures excellent grinding performance

• Wide range of applications such as contour, surface and cylindrical

grinding

• Quick adjustment from vertical to horizontal grinding

• Solid and torsion-free machine housing guarantees smooth run

• Efficient deburring of edges, buffing of welding seams

• Sanding disc with Velcro fastener, ideal for multiple change of grit

• Model BDS 75-2 comes with 2 speed settings and adjustable

workpiece support

• Sanding belt is easy to change, manual adjustment of belt tension

Technical data                    BDS 75                                      BDS 75-2

Sanding belt                  75 x 1180 mm                     75 x 1180 mm

Belt speed                       11 m/sec                                 .11 / 22 m/sec.

Belt sanding table               280 x 80 mm                            280 x 80 mm

Belt sanding table tiltable          0° to 90°                         0° to 90°

Sanding disc diam.               150 mm                                          150 mm

Sanding disc table             150 x 130 mm                          150 x 130 mm

Sanding disc table tiltable         0° to 45°                  0° to 45°

Dust extraction outlet            50 mm                                            50 mm

Motor power output S1 100%      1,1 kW                           1,5 / 1,8 kW

Motor power input S6 40%            1,5 kW                               2,1 / 2,5 kW

Voltage                             400 V                                                           400 V

Machine dimension :     470 x 720 x 520 mm      580 x 680 x 765 mm

Weight approx.                  6 5 kg                    69 kg

Standard accessories:

• Sanding belt grit 80

• Sanding disc grit 80

• Spark protection (BDS 75-2)

• Sanding and supporting table

• Graphite coating

• Dust extraction outlet

• 2-speed switch

ARACTERÍSTICAS:

Motor: 1.100 W Monofásico

Velocidad: 1.410 rpm

Dimensiones de la cinta: 75 x 1.180 mm

Dimensiones del disco: 150 mm

Dimensiones de la mesa: 150x130 mm

Inclinación de la mesa: 90 º

Dimensiones del embalaje: 665 x 460 x 370 mm

Peso: 62 Kg
