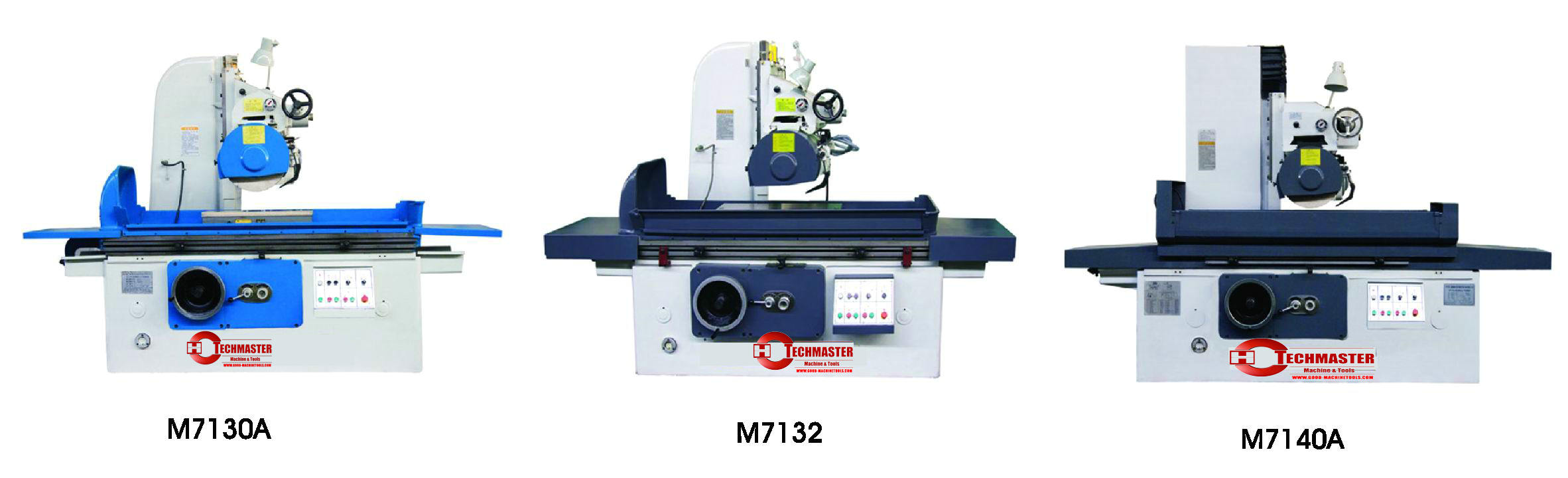

M7130A-M7132-M7140A
Quantity: This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontalspindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.
Model
Unit
M7130
M7130A
M7130AL
M7130B
M7130C
M7132
Worktable size(WxL)
Mm
300x1000
320x1000
Max matching dimension(W x L)
Mm
300x1000
320x1000
Max distance between spindle center line
and worktable surface
Mm
575
575
975
1375
575
Longitudinal moving speed of worktable
m/min
3-27
T-slot number x W
Mm
3x18
Wheel head
Cross moving
Continuous
feed speed
m/min
0.5-4.5
Intermitten
t feed speed
Mm/t
3-30
Vertical Moving
of wheel head
Rapid speed
Mm/min
400
Hand wheel
feed
Mm/.gra
0.005
Wheel Head
motor
Power
Kw
5.5
Rotation
speed
Rpm
1440
Total power
Kw
8.63
9
Max loading capacity of
worktable
(with chuck)
Kg
470
500
Chuck size(WxL)
Mm
300x680x1
320x1000x1
Wheel size(ODxWxID)
Mm
350x40x127
Package dimension
(LxWxH)
Cm
284x171
x213
284x171
x213
284x171
x261
284x171
x303
284x171
x213
Machine Weight
t
3.48
3.5
3.7
4
3.6
