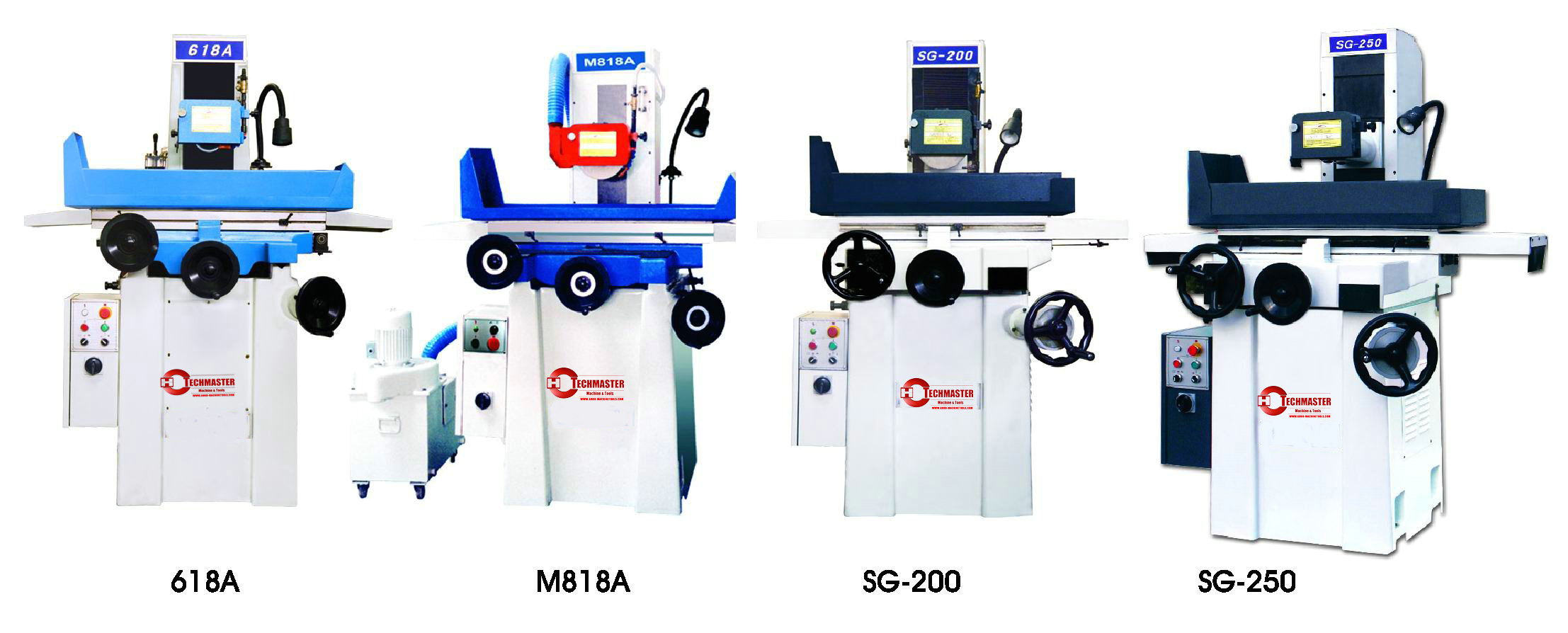

MANUAL GRINDER 618A
Quantity: 3-axis manual operation
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidityMODEL M618A M818A SG200 SG250 Table size(mm) 155X460 210X450 150X460 200X520 Table travel(mm) 500X185 500X240 500X200 570X250 Max width to be ground(mm) 165 220 165 220 Max length to be ground(mm) 470 470 470 520 Max height to be ground(mm) 350 350 350 350 Vertical feed revolution(mm) 1 1 2 2 graduation(mm) 0.005 0.005 0.005 0.005 Max distance from spindle to table surface(mm) 450 450 450 450 Grinding wheel size (mm) 200x13x31.75 200x13x31.75 200x20x31.75 200x20x31.75 Spindle speed (r/min) 3450 (60hz) 2850 (50hz) Spindle motor(kw) 1.5 (1.1 spindle) Max load capacity 97 128 110 140 N..W. (kg) 790 920 1000 1120 Overall size(mm) 1330x1090x1680 1330x1150x1680 1360x1350x1710 1450x1390x1770
3-axis manual operation
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidityMODEL M618A M818A SG200 SG250 Table size(mm) 155X460 210X450 150X460 200X520 Table travel(mm) 500X185 500X240 500X200 570X250 Max width to be ground(mm) 165 220 165 220 Max length to be ground(mm) 470 470 470 520 Max height to be ground(mm) 350 350 350 350 Vertical feed revolution(mm) 1 1 2 2 graduation(mm) 0.005 0.005 0.005 0.005 Max distance from spindle to table surface(mm) 450 450 450 450 Grinding wheel size (mm) 200x13x31.75 200x13x31.75 200x20x31.75 200x20x31.75 Spindle speed (r/min) 3450 (60hz) 2850 (50hz) Spindle motor(kw) 1.5 (1.1 spindle) Max load capacity 97 128 110 140 N..W. (kg) 790 920 1000 1120 Overall size(mm) 1330x1090x1680 1330x1150x1680 1360x1350x1710 1450x1390x1770
