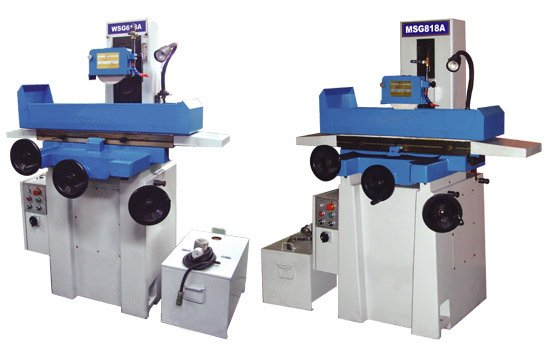

MANUAL SURFACE GRINDER SG618A
Quantity: -
SG618A
Widely useful,grind various surface.l Spindle and leadscrew is imported.l Rolling ball guideway is used on longitudinal direction.l Double V type guideways.l Vertical handwheel is fixed on bed.l Manual oil pump lubricates all moveable parts.Model No.SG618ASG818AMax. width to be ground165mm220mmMax. length to be ground470mm470mmMax. height to be ground350mm350mmWork table size155×460mm210×450mmPermanent magnetic chuck size150×400mm200×450mmMax.longitudinal travel500mm500mmMax.cross travel185mm240mmMax. distance from spindle to table surface450mm450mmFeed of vertical handwheel1per rev.1per rev.Grinding wheel size（OD×W×ID）200×13×31.75mm200×13×31.75mmSpindle speed3450(60Hz)2850(50Hz)r/min3450(60Hz)2850(50Hz)r/minPower of spindle head1.5Kw1.5KwMax. load capacity97kg128kgPacking size1340×1120×1930mm1400×1120×1985mmN.W.720kg800kgStandard accessoriesWheelBalancing arborHoisting setSpannerWheel chuckWheel dresserCoolant systemTool box and special wrenchHalogen lampWidely useful,grind various surface.l Spindle and leadscrew is imported.l Rolling ball guideway is used on longitudinal direction.l Double V type guideways.l Vertical handwheel is fixed on bed.l Manual oil pump lubricates all moveable parts.Model No.SG618ASG818AMax. width to be ground165mm220mmMax. length to be ground470mm470mmMax. height to be ground350mm350mmWork table size155×460mm210×450mmPermanent magnetic chuck size150×400mm200×450mmMax.longitudinal travel500mm500mmMax.cross travel185mm240mmMax. distance from spindle to table surface450mm450mmFeed of vertical handwheel1per rev.1per rev.Grinding wheel size（OD×W×ID）200×13×31.75mm200×13×31.75mmSpindle speed3450(60Hz)2850(50Hz)r/min3450(60Hz)2850(50Hz)r/minPower of spindle head1.5Kw1.5KwMax. load capacity97kg128kgPacking size1340×1120×1930mm1400×1120×1985mmN.W.720kg800kgStandard accessoriesWheelBalancing arborHoisting setSpannerWheel chuckWheel dresserCoolant systemTool box and special wrenchHalogen lamp
