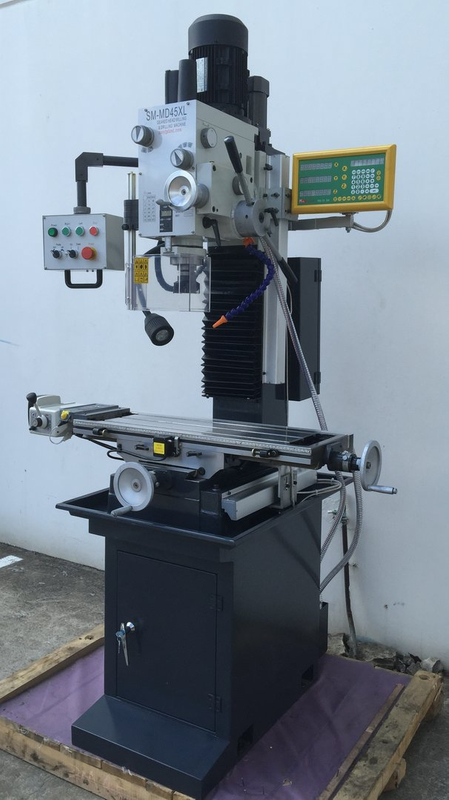

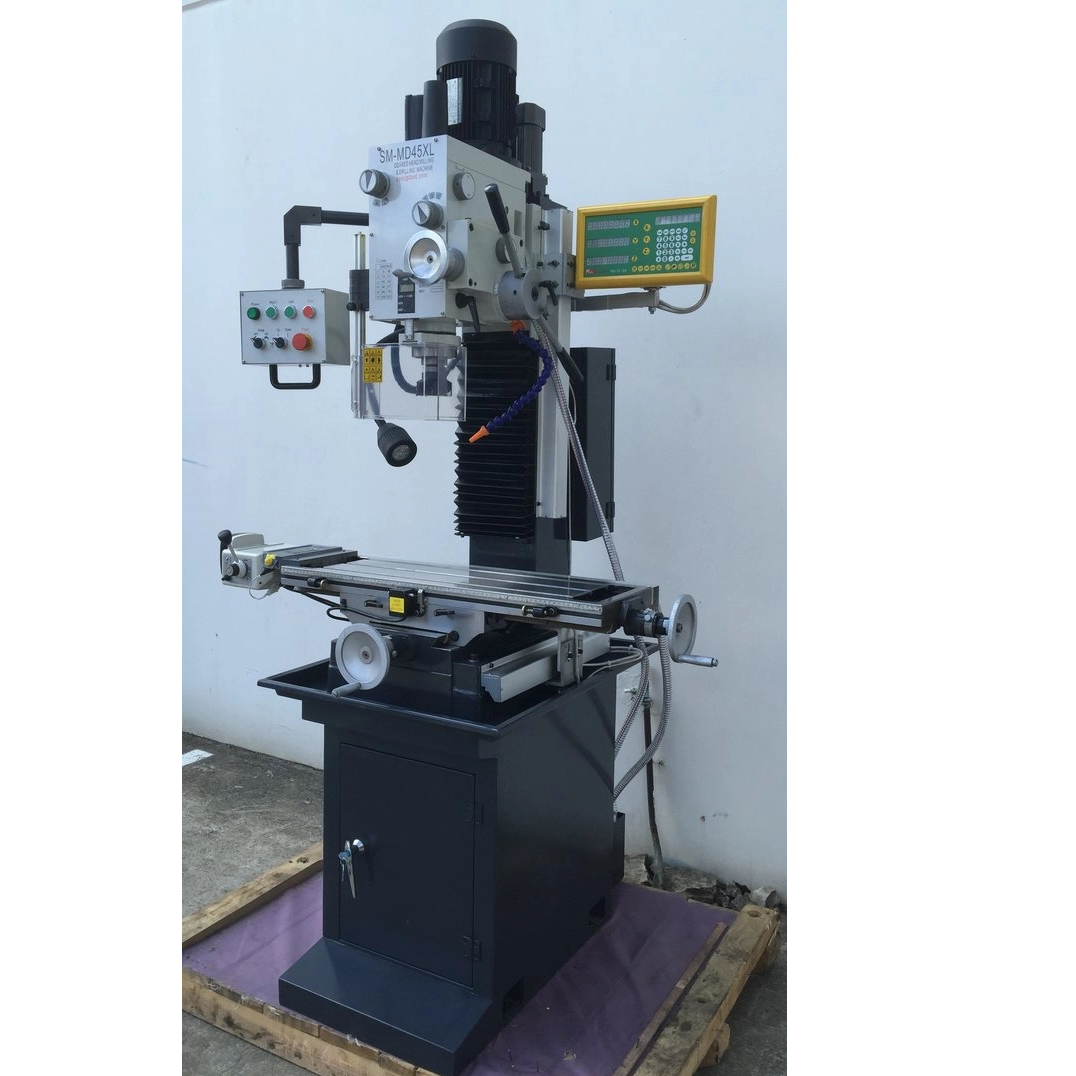

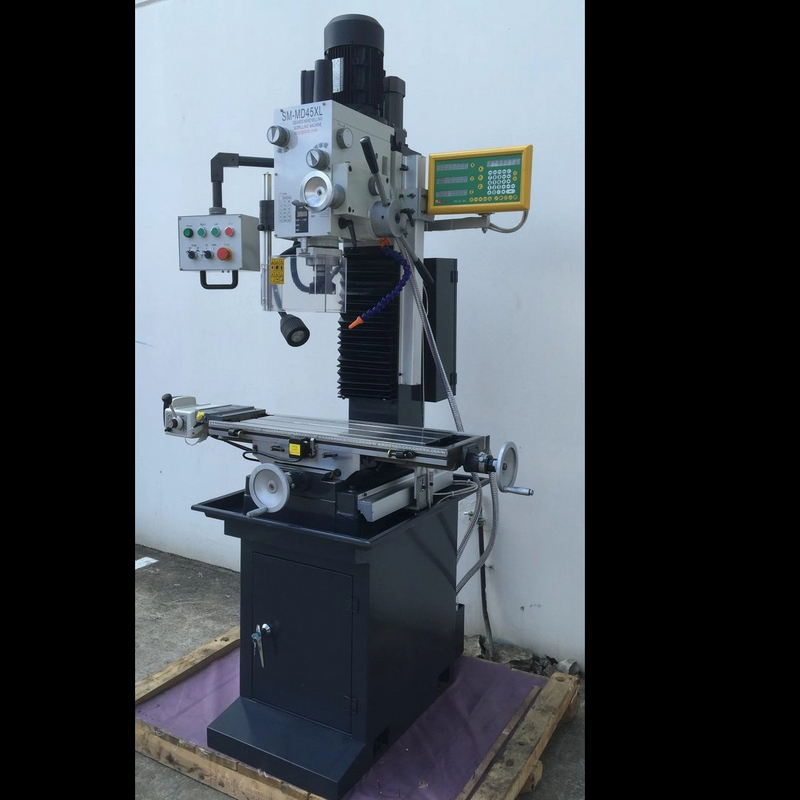

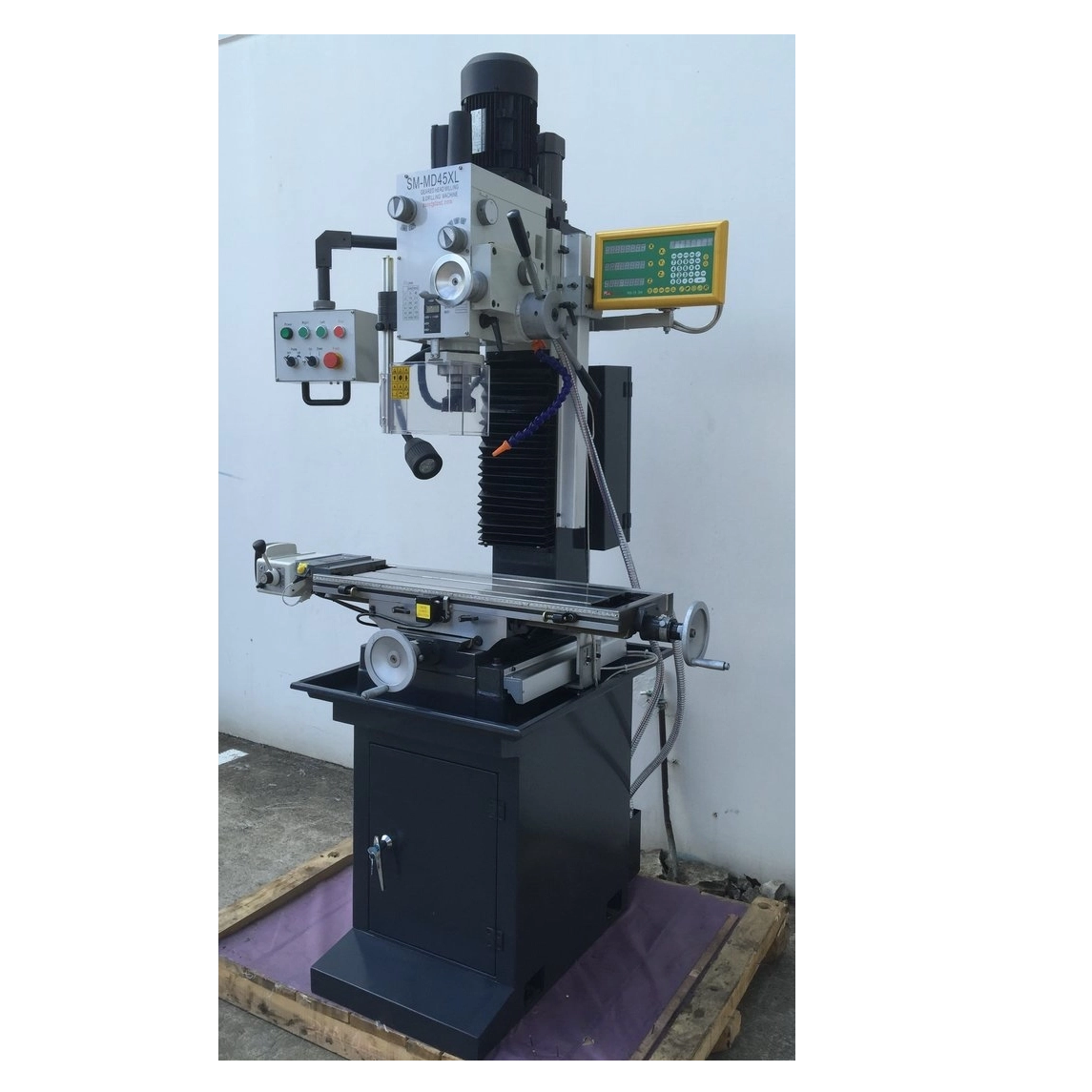

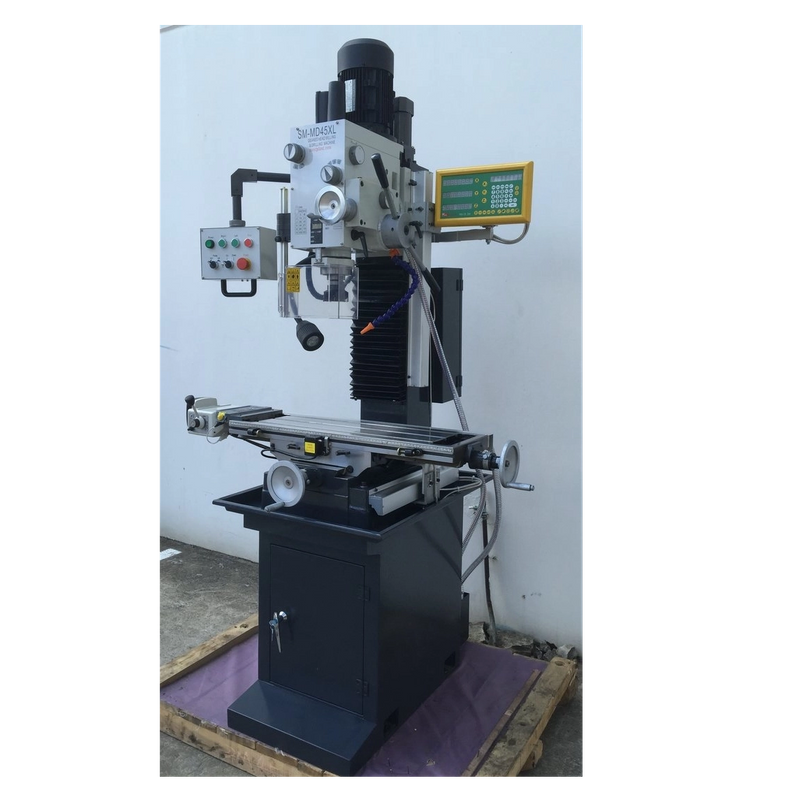

MD45XL. Mill Drill with DRO. Geared Drive Mill Drill, Coolant, Dovetail Guides,

Quantity:
  • MD45XL
 ## NEW Z AXIS POWER FEED NOW INCLUDED & CARBIDE FACE CUTTER ##
Description
Now offered in our popular Industrial Grey Colour Schedule -This machines sports a dovetail column with a power feed & 3 Axis Digital Read Out. That’s right! No more cranking the head up and down for tool changes or clearance, just push a button and save yourself the trouble. And there’s more great features, too! A cast iron stand is supplied that has a coolant return trough. This adds mass and convenience to an already exceptional gear head mill. Check out the specs and don’t forget the tooling. You’ll want to fire this puppy up the minute it’s delivered!

Features

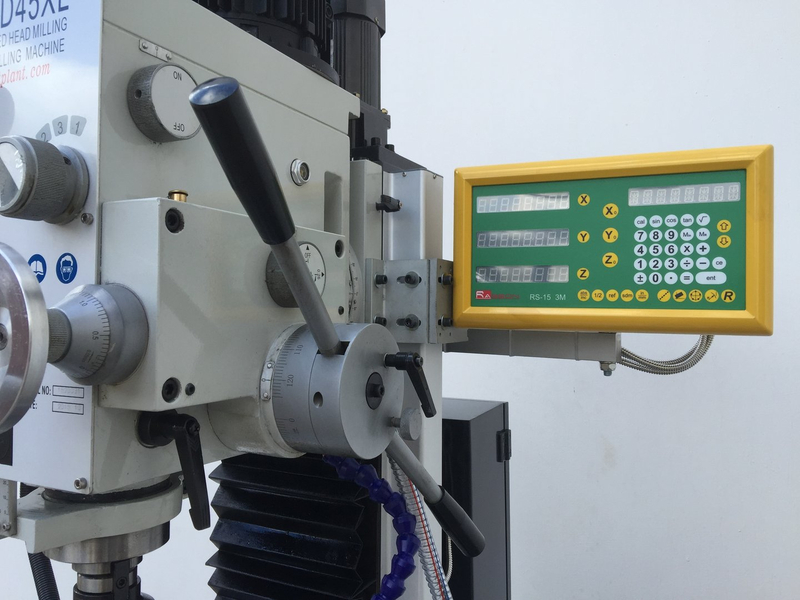

❚3 axis DRO
❚power up & down via dovetail guides
❚power spindle quill down feed with 3 x feed selectors.

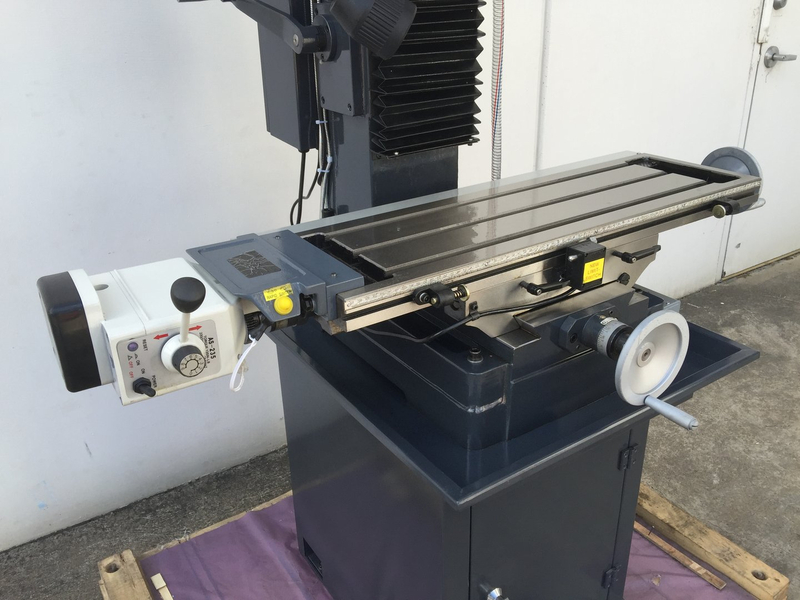

❚power feed of work table
❚draw bar spindle for milling
❚large MT4 (morse taper)
❚forward and reverse operation
❚adjustable depth stop
❚digital depth display with zero position
❚ideal workshop drill for all applications
❚heavy duty tapered roller bearing spindle offering stability and long life
❚positive spindle lock standard

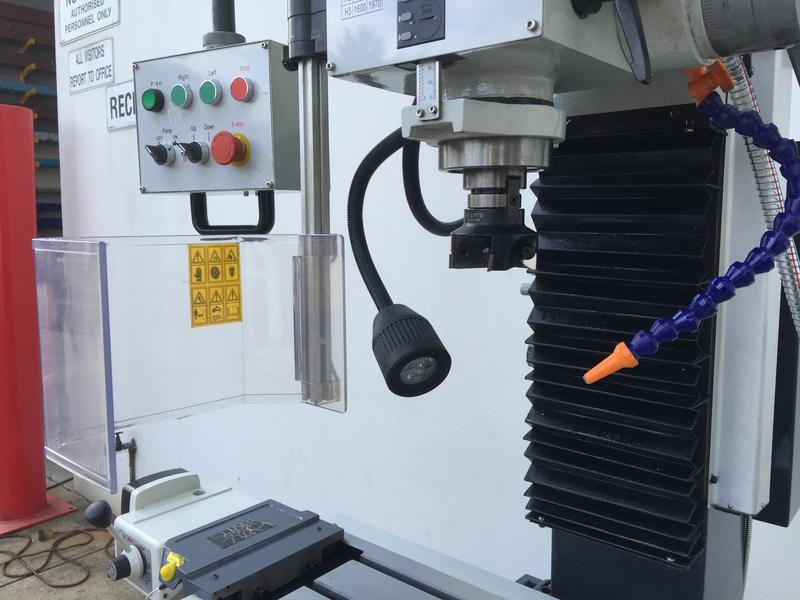

❚perspex safety guard
❚gear drive with low noise
❚heavy duty cast stand with coolant tray
❚coolant system supplied standard

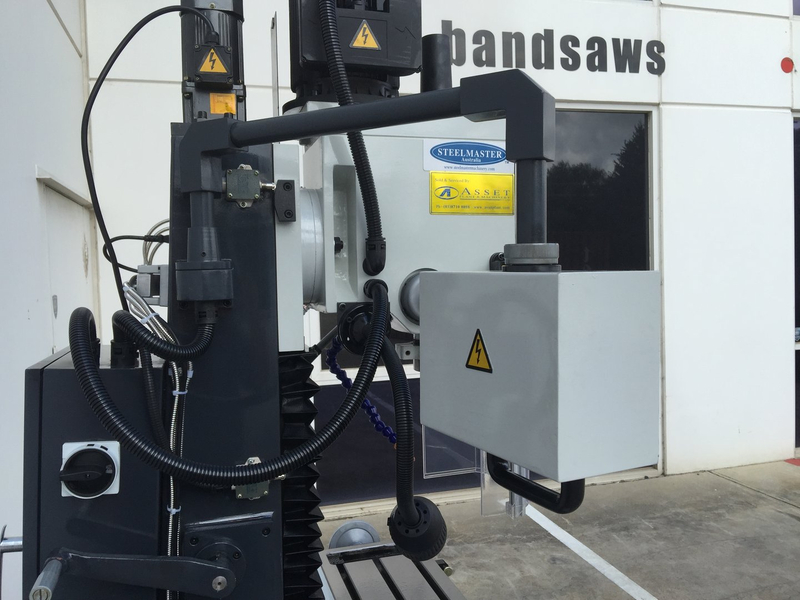

❚halogen work light fitted
❚240 Volt operation
❚ CE compliant

Technical Data Snap-Shot
❚820mm x 240mm tee slotted work table
❚travel (x,y,z) 560mm, 190mm, 420mm
❚4 morse taper spindle
❚M16 drawbar
❚95mm spindle diameter
❚490mm spindle to table
❚273mm throat depth
❚speeds range - 75 ~ 1600 variable
❚motor capacity - 1.5Kw x 240Volt
❚machine dimensions - 850mm x 780mm x 1650mm
❚shipping dimensions - 930mm x 1240mm x 2100mm
❚approx weight: 450kg
